Power and control cables
Harsh conditions
High mechanical and chemical resistance

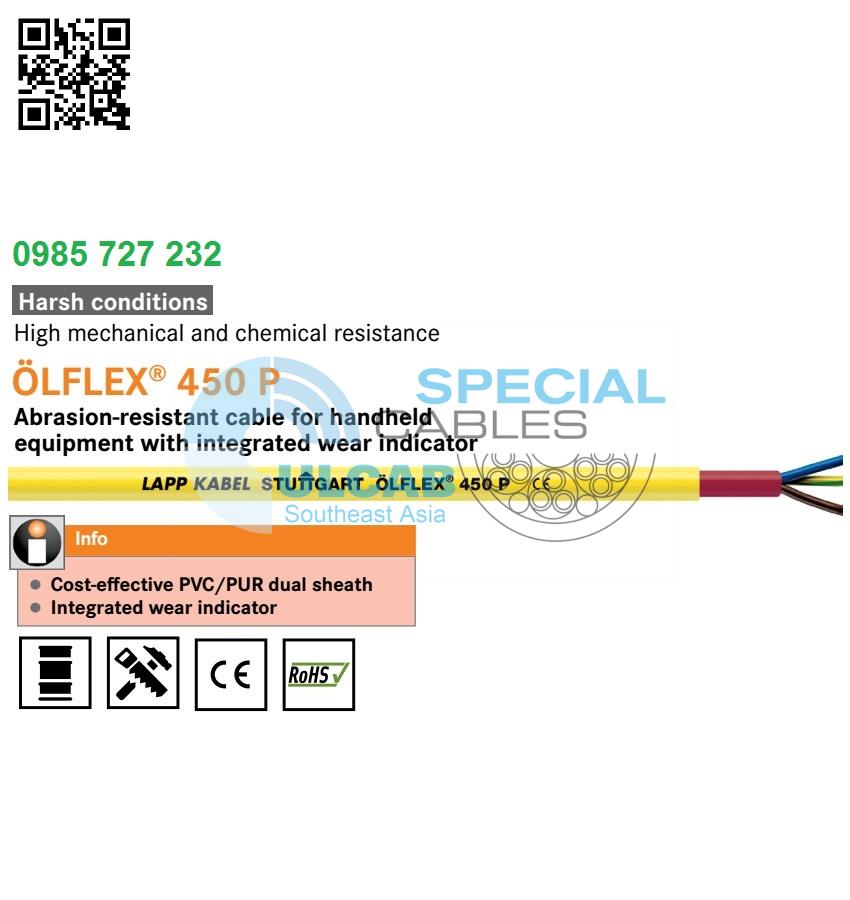

LAPP KABEL ÖLFLEX® 450 P
Abrasion-resistant and oil-resistant cable for hand-held equipment with integrated wear indicator
ÖLFLEX® 450 P – connection cable with oil- and abrasion-resistant yellow PUR/PVC dual outer sheath with wear indication for use with portable electrical equipment.
- Cost-effective PVC/PUR dual sheath
- Integrated wear indicator
Benefits
- Good cost-benefit ratio
- Resistant to contact with many mineral oil-based lubricants, diluted acids, aqueous alkaline solutions and other chemical media
- The signal colour of the outer sheath increases safety and visual perception
- Serious mechanical damage to the yellow outer sheath is visible thanks to the red inner sheath
Application range
- Portable hand-held electrical devices such as drills, sanders, jig saws or grinders
- Mains or extension cable
- Portable electrical devices for the home and garden
- Outdoor use is possible within the indicated temperature range
Product features
- Good oil resistance
- Abrasion-resistant and notch-resistant
- Flame-retardant according to IEC 60332-1-2
- Low-adhesive surface
- Resistant to hydrolysis and microbes
Norm references / approvals
- Based on VDE 0250 / 0285
Design
- Fine-wire, bare copper conductor
- PVC-based core insulation
- Cores twisted together
- Inner sheath: PVC – colour red
- Outer sheath: PUR – colour yellow
■ Technical data
Classification
- ETIM 5.0 Class-ID: EC001578
- ETIM 5.0 Class-Description: Flexible cable
Core identification code
- Coloured according to VDE 0293-308, see appendix T9
Conductor design
- Fine wire according to VDE 0295,
class 5 / IEC 60228 class 5
Minimum bending radius
- Occasional flexing: 15 x outer diameter
- Fixed installation: 4 x outer diameter
Nominal voltage
- U0/U: 300/500 V
Test voltage
- 3000 V
Protective conductor
- G = with GN-YE protective conductor
- X = without protective conductor
Temperature range
- Occasional flexing: -5°C to +70°C
- Fixed installation: -40°C to +80°C
| Article number | Number of cores and mm² per conductor | Outer diameter (mm) | Copper index (kg/km) | Weight (kg/km) |
| ÖLFLEX® 450 P | ||||
| 0012101 | 2 X 1.0 | 8.0 | 19.2 | 82 |
| 0012102 | 3 G 1.0 | 8.4 | 29.0 | 89 |
| 0012202 | 3 G 1.5 | 9.3 | 43.0 | 120 |
| 00122033 | 4 G 1.5 | 10.1 | 58.0 | 160 |
| 00122043 | 5 G 1.5 | 10.9 | 72.0 | 179 |
| 0012302 | 3 G 2.5 | 10.8 | 72.0 | 186 |
| 00123043 | 5 G 2.5 | 13.6 | 120.0 | 283 |
