Data communication systems
Cables for bus system DeviceNet
Characteristic impedance: 120 ohm

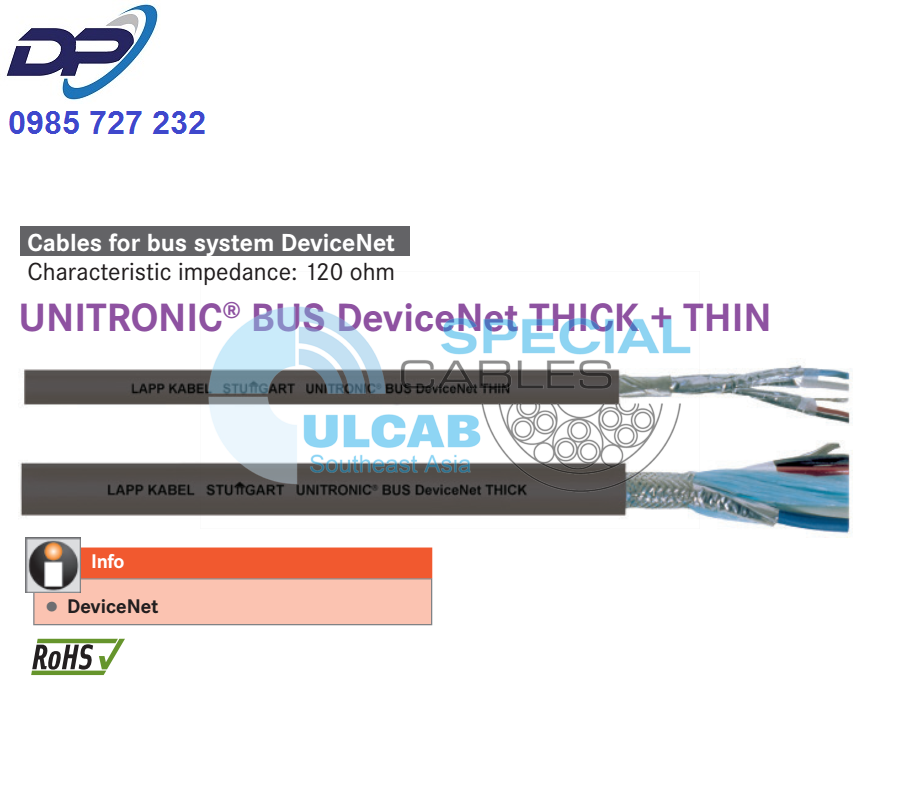

UNITRONIC® BUS DeviceNet THICK + THIN

• DeviceNet
• product information (PDF)

■ Application range

• Stationary application

• DeviceNet™ connects industrial devices e.g. limit switches, photoelectric switches, valve islands, motor starters, drives, PLCs, etc.

• DeviceNet™ Bus system (Rockwell Automation)


■ Product features

• Based on proven CAN (Controller Area Network) technology.

• Permissible cable lengths vary with the data rate and the cable thickness

• THICK cable total trunk length
  125 kbit/s = 500 m
  250 kbit/s = 250 m
  500 kbit/s = 100 m

• THIN cable total trunk length
  125 kbit/s = 6 m
  250 kbit/s = 6 m
  500 kbit/s = 6 m


■ Product Make-up

• Stranded tinned copper conductor

• PE core insulation

• PVC outer sheath

• Colour: chrome grey, RAL 7005

■ Technical data

Core identification code
Data pair: light blue + white
Power supply: red + black
Mutual capacitance
(800 Hz): max. 40 nF/km
Peak operating voltage
300 V (not for power applications)
Conductor resistance
Thick (loop): max. 45 ohm/km
Thin (loop): max. 180 ohm/km
Minimum bending radius
Fixed installation:
10 x cable diameter
Test voltage
1000 V
Temperature range
Fixed installation: -20°C to +70°C
Characteristic impedance
at 1 MHz: 120 +/-10 Ohm
