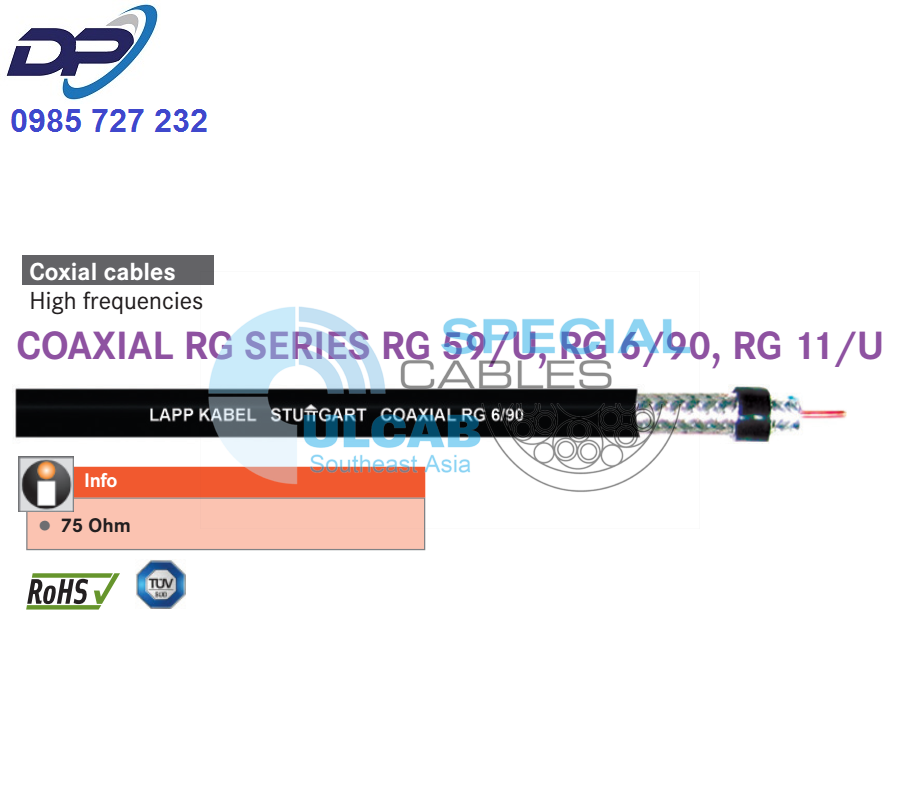

UNITRONIC® COAXIAL RG SERIES RG 59/U, RG 6/90, RG 11/U
- 75 Ohm
- product information (PDF)
■ Benefits
- Broadband for low loss attenuation of high frequency signal
■ Application range
- CATV and data networking
- Optimizing frequency up to 1000 MHz
- Suitable for use in dry and damp areas
■ Product features
- Double screen, offer good screening against external interference
- UV-resistant
- Flame retardant in acc. to IEC 60332-1-2
■ Approvals (Norm references)
- TUV SUD PSB type test for 3801313
■ Product Make-up
- Bare copper cladded steel solid conductor
- Foam PE insulation
- Aluminium foil bonded, 100% coverage Aluminium wire braiding
- PVC outer sheath, black
■ Technical data
Mutual capacitance
53.1 pF/m
Minimum bending radius
Fixed installation:
10 x cable diameter
Temperature range
Fixed installation: -30°C to +80°C
Characteristic impedance
75 +/- 3 Ohm
| Article number | Article designation | Conductor cross-section | Outer diameter (mm) | Working voltage in V | Min. braiding coverage | Copper index (kg/km) | Weight (kg/km) |
| 3800768 | RG 59/U | 1×20 AWG | 6 | 350 | 68% | 0,3 | 33 |
| 3801313 | RG 6/90 | 1×18 AWG | 6,8 | 350 | 90% | 0,5 | 43 |
| 3800720 | RG 11/U | 1×14 AWG | 10,2 | 600 | 60% | 1,2 | 100 |
