Data communication systems
Components for building-networking
LAN cables for structured building cabling

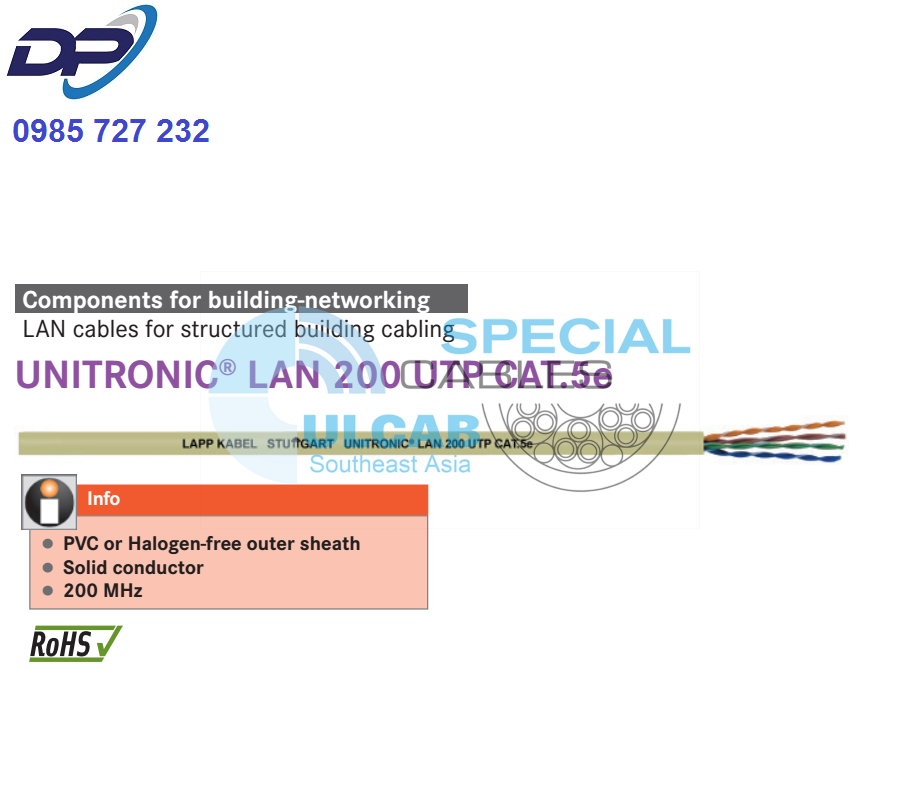

UNITRONIC® LAN 200 UTP CAT.5e

• PVC or Halogen-free outer sheath

• Solid conductor

• 200 MHz
• product information (PDF)

■ Application range

• Data transfer for horizontal network backbone for wiring office administration and development buildings

• Cable run should not exceed 100 m in acc. to ISO/IEC 11801 and EN 50173


■ Product features

• Transmission rate up to 200 MHz

• Flame retardant acc. to IEC 60332-1-2

• Halogen free acc. to IEC 60754-1 (for Halogenfree outer sheath only)


■ Product Make-up

• Solid bare conductor

• PE core insulation

• PVC or Halogen-free outer sheath

• Colour: pebble grey, RAL 7032

• Packaging: 305 m/box

■ Technical data

Core identification code
Pair 1: blue + white/blue
Pair 2: orange + white/orange
Pair 3: green + white/green
Pair 4: brown + white/brown
Mutual capacitance
max. 56.0 pF/m (core-core)
Minimum bending radius
Fixed installation: 4 x cable diameter
Temperature range
-20°C to +70°C
Characteristic impedance
100 +/-15 Ohm at 100 MHz
