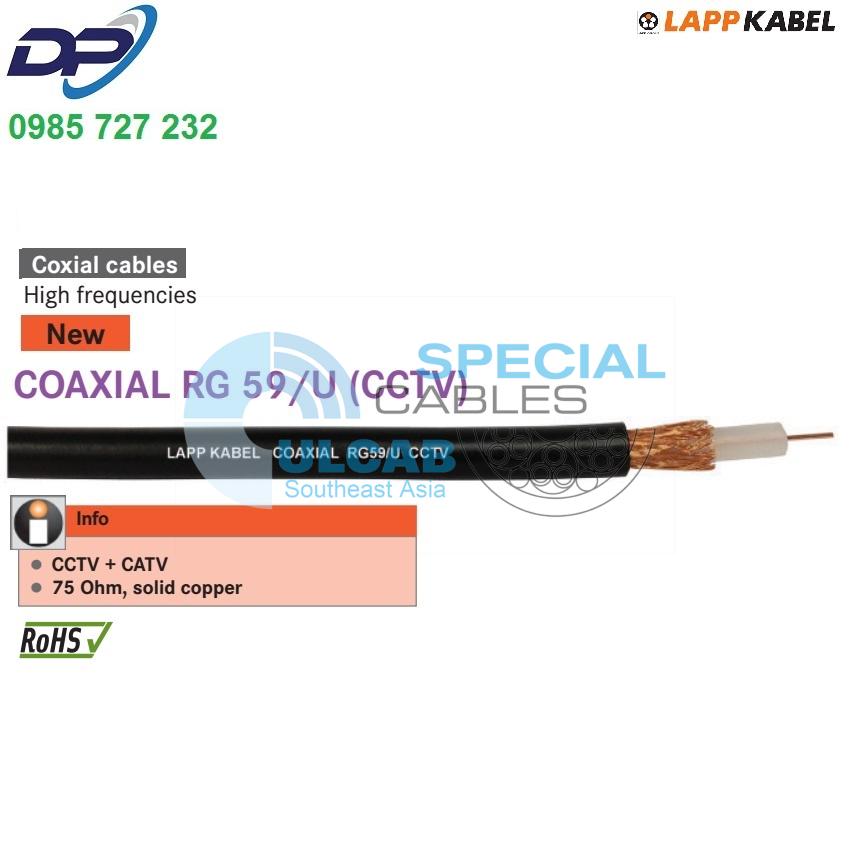

UNITRONIC® COAXIAL RG 59/U (CCTV)

• CCTV / CATV

• 75 Ohm, solid copper
• product information (PDF)

■ Application range

• CCTV and CATV video transmission and data networking

• RF/Data communication, 75 Ohm

• Indoor and outdoor (non burial) application


■ Product features

• Offer good screening against external interference

• Flame retardant acc. to IEC 60332-1-2


■ Product Make-up

• Solid bare copper conductor

• PE core insulation

• Bare copper wire braiding, approx. 95% coverage

• PVC outer sheath, black

■ Technical data

Mutual capacitance
67.2 pF/m, C-S
Peak operating voltage
300 Vrms max.
Conductor resistance
max. 66.9 Ohm/km
Attenuation loss
11.0 dB/100m, at 100 MHz
40.0 dB/100m, at 1000 MHz
Minimum bending radius
10 x cable diameter
Test voltage
1000 V
Temperature range
-30°C to +70°C
Characteristic impedance
75 +/- 3 Ohm
