Data communication systems
GOF – Glass Optical Fibre
Outdoor area

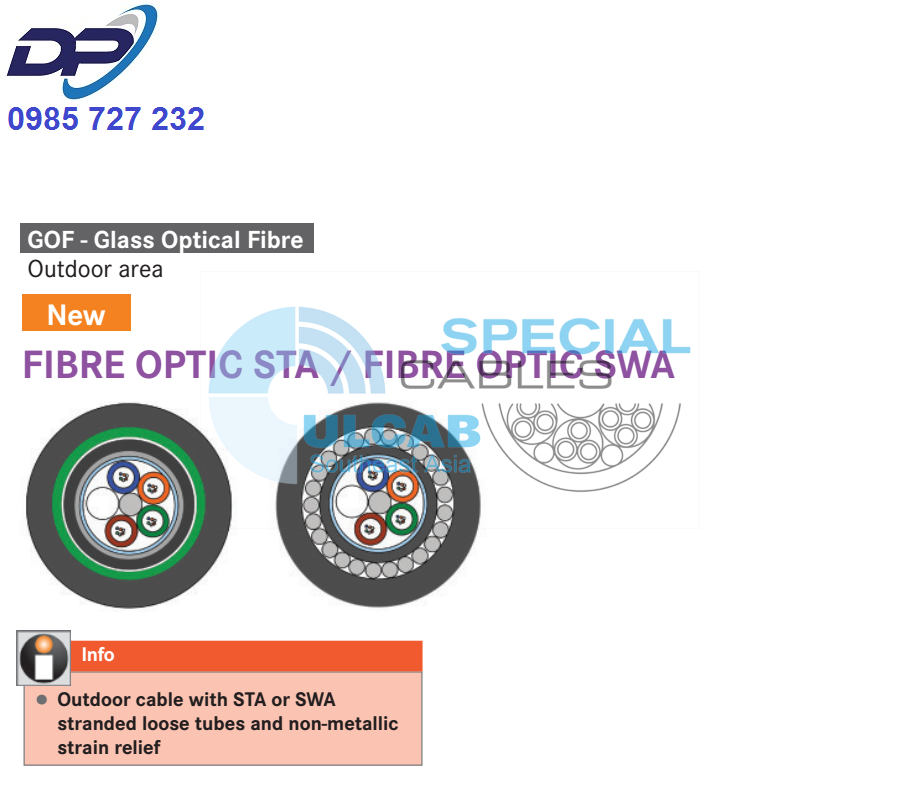

FIBRE OPTIC STA _ FIBRE OPTIC SWA

• Outdoor cable with STA or SWA
  stranded loose tubes and non-metallic
  strain relief
• product information (PDF)

■ Benefits

• Armouring provides excellent protection against high mechanical stress and rodents

• Suitable for direct burial

• Easy to install due to the compact design, high flexibility, robust sheath and small bending radii

• UV-resistant longitudinally and laterally watertight


■ Application range

• For outdoor / direct burial

• Campus backbone

• WAN applications


■ Product features

• Stranded loose tubes

• Colour-coded fibres and loose tubes

• Longitudinal watertight

• Excellent rodent protection

• Reference Standard: ITU-T G.650, EIA/TIA 598B, IEC 60793-1/-2

■ Technical data

Optical fibre type
Core material: glass
Permissible bending radius
12.5 x cable diameter (Fixed)
Permissible tensile force
Long-term: 1000 N
Short-term: 3000 N
Temperature range
-40°C to +60°C
