Power and control cables
Harsh conditions
High mechanical and chemical resistance

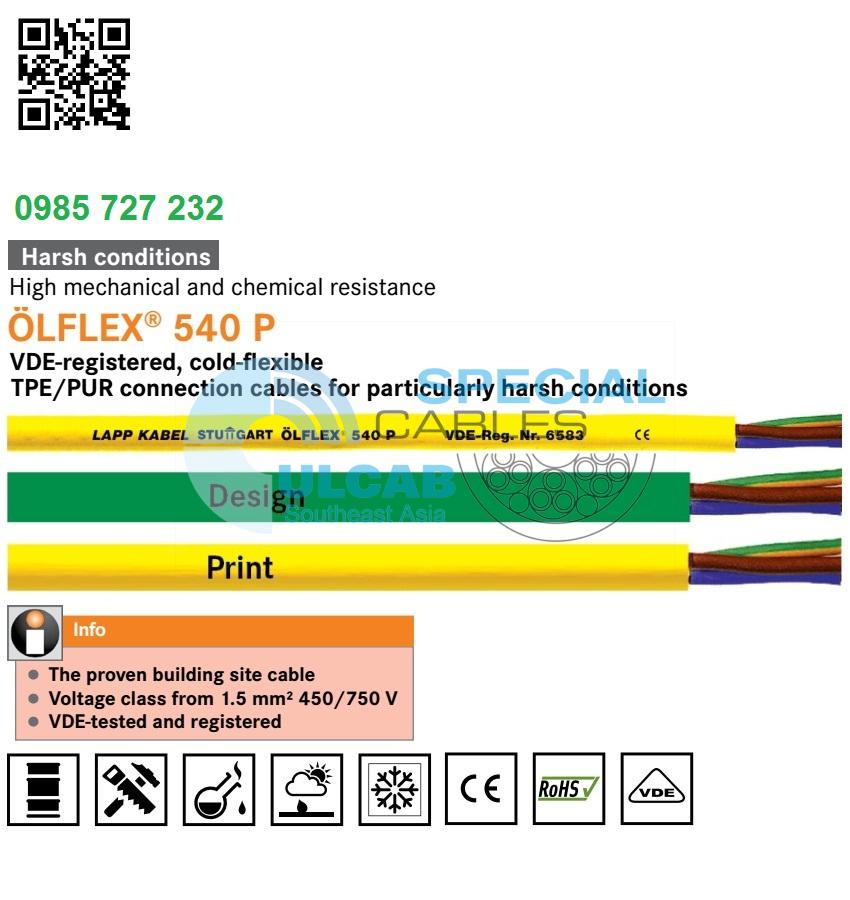

LAPP KABEL ÖLFLEX® 540 P
Abrasion- and oil-resistant TPE/PUR connection cable that is flexible at cold temperatures for particularly harsh conditions – VDE-registered
ÖLFLEX® 540 P – PUR connection cable, VDE registered outdoor use on constructions sites with yellow signal colour – flexible at cold temperatures, abrasion- and notch-resistant, halogen-free.
- The tried-and-tested building site cable
- Voltage class from 1.5 mm² 450/750 V
- VDE-tested and registered
Benefits
- Durable under harsh conditions thanks to robust PUR sheath material
- Resistant to contact with many mineral oil-based lubricants, diluted acids, aqueous alkaline solutions and other chemical media
- Wide temperature range for applications in harsh climatic environments
- The signal colour of the outer sheath increases safety and visual perception
- VDE-tested characteristics
Application range
- Connection and extension cables
- Construction machinery
- Building sites, camp sites, event equipment
- Agricultural equipment
- For indoor and outdoor use
Product features
- Resistant to oil and drilling fluids according to IEC 61892-4, appendix D
- Abrasion-resistant and notch-resistant
- Halogen-free and flame-retardant (IEC 60332-1-2)
- Flexible at temperatures down to -40 °C
- Resistant to hydrolysis and microbes
Norm references / approvals
- VDE reg. no. 6583 up to 1.0 mm²
- VDE reg. no. 6584 from 1.5 mm²
Design
- Fine-wire, tin-plated copper conductor
- Core insulation made of TPE
- Cores twisted together
- Outer sheath: PUR – colour yellow
- DESIGN: Other sheath colours on request
- PRINT: Other sheath marking on request
■ Technical data
Classification
- ETIM 5.0 Class-ID: EC001578
- ETIM 5.0 Class-Description: Flexible cable
Core identification code
- Coloured according to VDE 0293-308, see appendix T9
- (7-core version number-coded)
Conductor design
- Fine wire according to VDE 0295,
class 5 / IEC 60228 class 5
Minimum bending radius
- Occasional flexing: 10 x outer diameter
- Fixed installation: 4 x outer diameter
Nominal voltage
- Up to 1.0 mm²: U0/U: 300/500 V
- from 1.5 mm²: U0/U: 450/750 V
Test voltage
- 3000 V
Protective conductor
- G = with GN-YE protective conductor
- X = without protective conductor
Temperature range
- Occasional flexing: -40°C to +90°C
- Fixed installation: -50°C to +90°C
| Article number | Number of cores and mm² per conductor | Outer diameter (mm) | Copper index (kg/km) | Weight (kg/km) |
| ÖLFLEX® 540 P U 0/U: 300/500 V |
||||
| 0012452 | 2 X 0.75 | 6.2 | 14.4 | 52 |
| 0012453 | 3 G 0.75 | 6.7 | 21.6 | 63 |
| 00124543 | 4 G 0.75 | 7.3 | 28.8 | 80 |
| 00124553 | 5 G 0.75 | 8.2 | 36.0 | 98 |
| 0012456 | 7 G 0.75 | 9.9 | 51.0 | 126 |
| 0012457 | 2 X 1.0 | 6.7 | 19.2 | 53 |
| 0012458 | 3 G 1.0 | 7.1 | 29.0 | 72 |
| 00124593 | 4 G 1.0 | 7.7 | 38.4 | 96 |
| 00124603 | 5 G 1.0 | 8.6 | 48.0 | 117 |
| 0012461 | 7 G 1.0 | 10.4 | 68.0 | 147 |
| ÖLFLEX® 540 P U 0/U: 450/750 V |
||||
| 0012462 | 2 X 1.5 | 8.3 | 29.0 | 82 |
| 0012463 | 3 G 1.5 | 8.8 | 43.0 | 108 |
| 00124643 | 4 G 1.5 | 9.8 | 58.0 | 147 |
| 00124653 | 5 G 1.5 | 10.7 | 72.0 | 164 |
| 0012466 | 7 G 1.5 | 13.4 | 101.0 | 267 |
| 0012467 | 2 X 2.5 | 9.7 | 48.0 | 142 |
| 0012468 | 3 G 2.5 | 10.3 | 72.0 | 161 |
| 00124693 | 4 G 2.5 | 11.4 | 96.0 | 220 |
| 00124703 | 5 G 2.5 | 12.7 | 120.0 | 245 |
| 0012471 | 7 G 2.5 | 15.8 | 168.0 | 321 |
| 0012474 | 3 G 4 | 12.3 | 115.2 | 262 |
| 00124753 | 4 G 4 | 13.6 | 154.0 | 284 |
| 00124763 | 5 G 4 | 15.2 | 192.0 | 355 |
| 00124783 | 4 G 6 | 15.4 | 230.0 | 440 |
| 00124793 | 5 G 6 | 17.1 | 288.0 | 530 |
| 00124813 | 4 G 10 | 20.1 | 384.0 | 615 |
| 00124823 | 5 G 10 | 22.3 | 480.0 | 735 |
