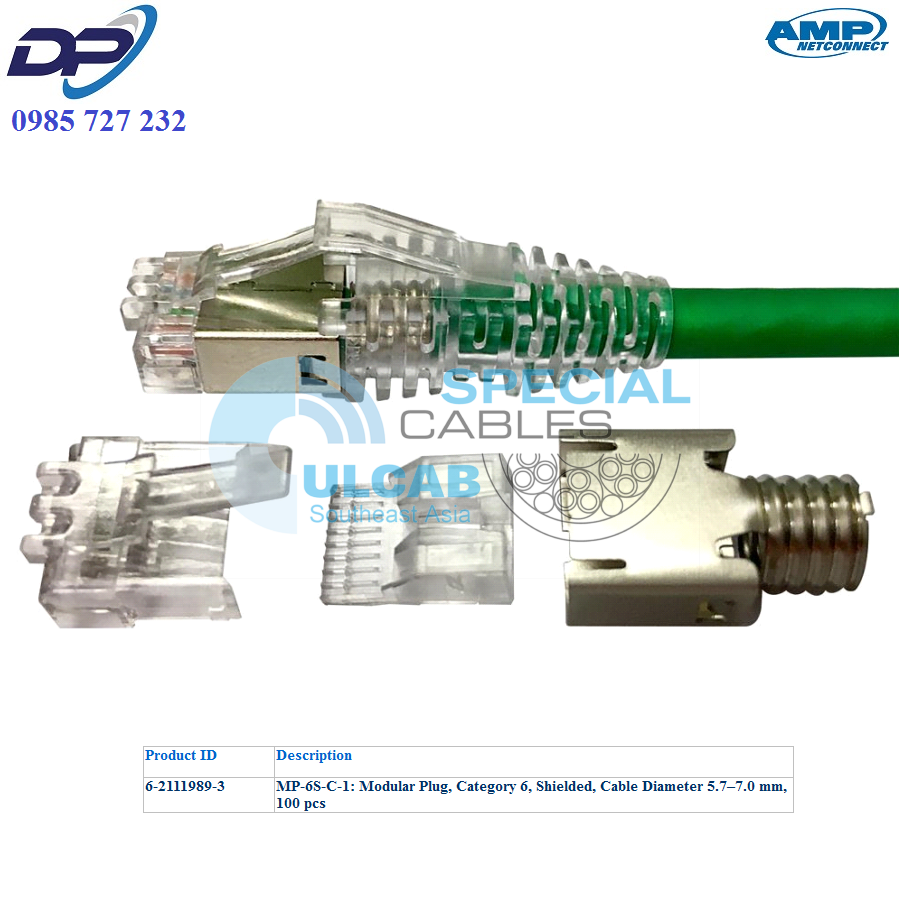

Hạt Mạng AMP ( 6-2111989-3 ) Modular Plug, Category 6, Shielded, Cable Diameter 5.7–7.0 mm, 100 pcs | Chính Hãng – Giá Tốt Nhất
6-2111989-3
Modular Plug Kit, category 6, shielded, 8-position, 5.7 – 7.0 mm max cable jack OD, 100/bag
Product Specifications
| Product Classification | |
| Portfolio | NETCONNECT® |
| Product Type | Modular plug |
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
|
|
|
| Body Features | |
| Conductor Type | Solid | Stranded |
| Shield Material | Stainless steel |
| Shield Plating Material | Nickel |
|
|
|
| Configuration Features | |
| Number of Positions | 8 |
| Keyed | No |
|
|
|
| Contact Features | |
| Contact Base Material | Phosphor bronze |
| Contact Mating Area Plating Material | Gold |
| Contact Mating Area Plating Thickness | 50.00 µin | 1.27 µm |
| Number of Contacts Loaded | 8 |
|
|
|
| Dimensions | |
| Cable Jacket Outside Diameter Range | 0.224–0.276 in | 5.7–7.0 mm |
| Conductor Wire Size | 26–23 AWG |
| Insulated Conductor Outside Diameter | 0.035–0.043 in | 0.89–1.09 mm |
|
|
|
| Housing Features | |
| Housing Material | Glass filled polycarbonate |
|
|
|
| Industry Standards | |
| UL Flammability Rating | UL 1863 |
|
|
|
| Packaging Features | |
| Packaging Quantity | 100 |
|
|
|
| Product Type Features | |
| Cable Type | Round, shielded |
| Performance Category | Category 6 |
| Connector Style | Plug |
| Jack Type | RJ45 |
| Latch Style | Standard |
| Shielded | Yes |
|
|
|
| Termination Features | |
| Termination Method to Wire/Cable | Insulation Displacement Crimp (IDC) |
