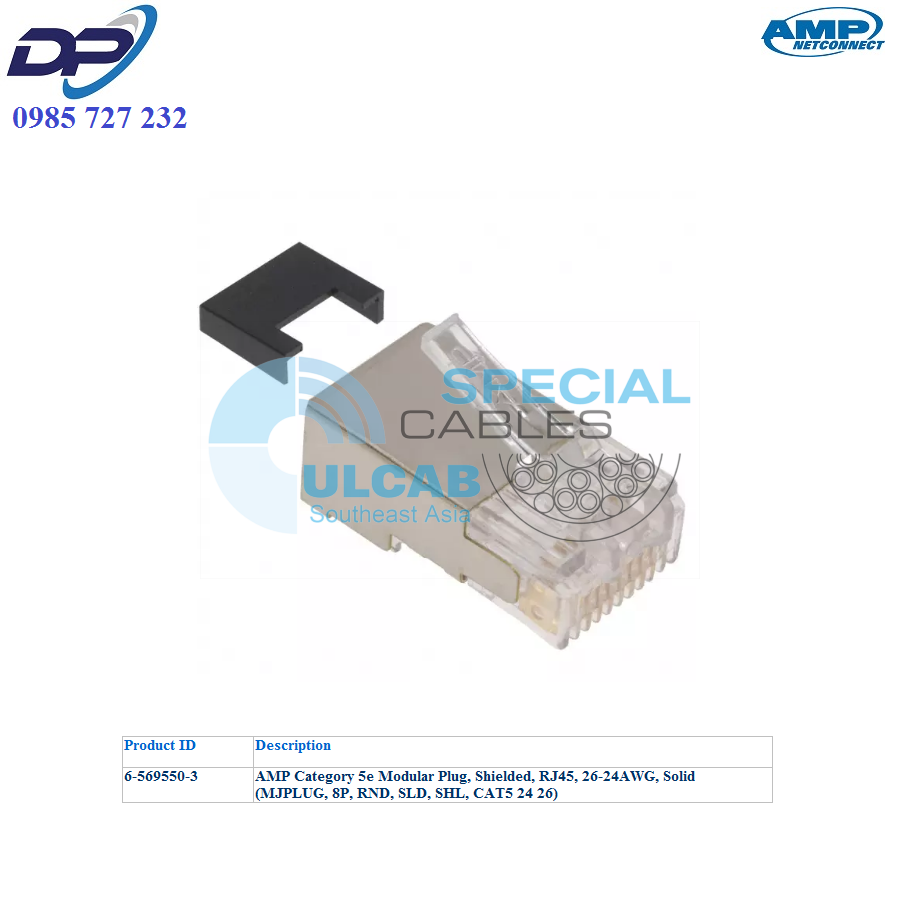

Hạt Mạng AMP ( 6-569550-3 ) Category 5e Modular Plug, Shielded, RJ45, 26-24AWG, Solid | Chính Hãng – Giá Tốt Nhất

Hạt Mạng AMP ( 6-569550-3 ) Category 5e Modular Plug, Shielded, RJ45, 26-24AWG, Solid | Chính Hãng – Giá Tốt Nhất

6-569550-3

Modular Plug Kit, category 5e, 8P/8C, shielded, 4.8 – 5.6 mm max cable jack OD, 8-position, 100/bag

Product Specifications

Product Classification
Portfolio   NETCONNECT®
Product Type   Modular plug
Regional Availability   Asia   |   Australia/New Zealand   |   EMEA   |   Latin America   |   North America



Body Features
Conductor Type   Solid   |   Stranded
Shield Material   Copper alloy
Shield Plating Material   Nickel



Configuration Features
Number of Positions   8
Keyed   No



Contact Features
Contact Base Material   Phosphor bronze
Contact Mating Area Plating Material   Gold
Contact Mating Area Plating Thickness   50.00 µin   |   1.27 µm
Number of Contacts Loaded   8



Dimensions
Cable Jacket Outside Diameter Range  0.190–0.220 in   |   4.8–5.6 mm
Conductor Wire Size   26–23 AWG
Insulated Conductor Outside Diameter   0.034–0.039 in   |   0.86–0.99 mm



Housing Features
Housing Material   Glass filled polycarbonate



Industry Standards
UL Flammability Rating   UL 1863



Packaging Features
Packaging Quantity   100



Product Type Features
Cable Type   Round, shielded
Performance Category   Category 5e
Connector Style   Plug
Jack Type   RJ45
Latch Style   Standard
Shielded   Yes



Termination Features
Termination Method to Wire/Cable   Insulation Displacement Crimp (IDC)
