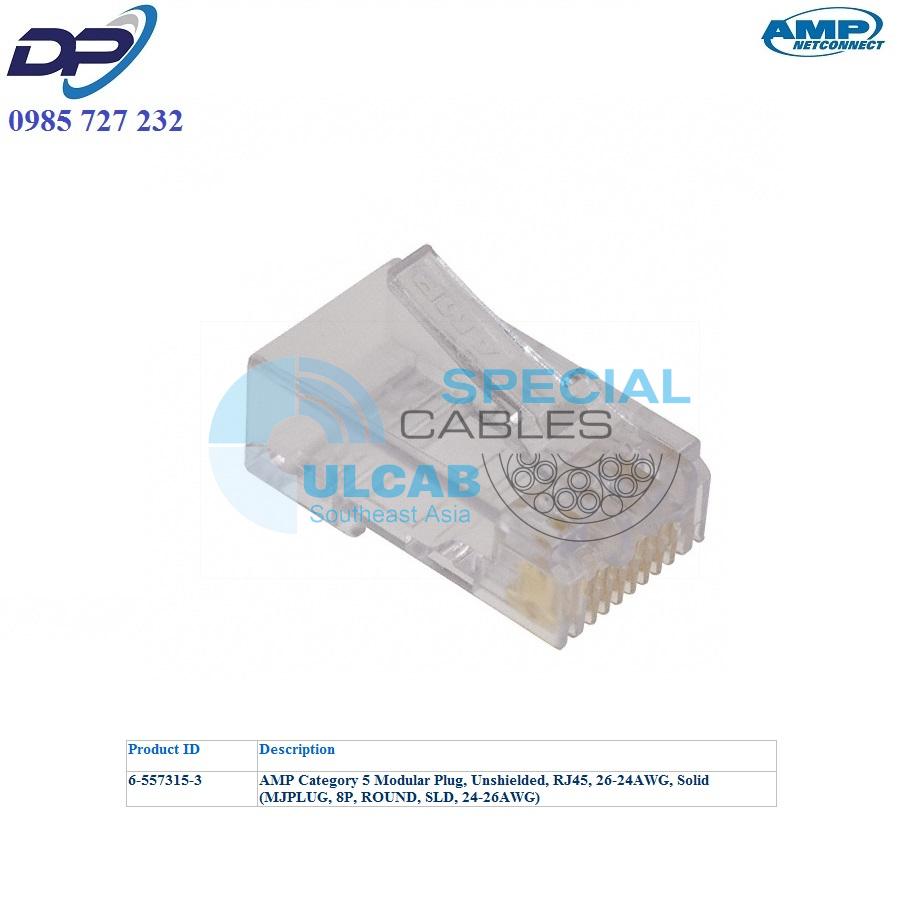

Hạt Mạng AMP ( 6-557315-3 ) Category 5 Modular Plug, Unshielded, RJ45, 26-24AWG, Solid (MJPLUG, 8P, ROUND, SLD, 24-26AWG) | Chính Hãng – Giá Tốt Nhất
6-557315-3
Modular Plug Kit, 8P/8C, unshielded, round, 5.1 mm max cable jack OD, 8-position, 100/bag
Product Specifications
| Product Classification | |
| Portfolio | NETCONNECT® |
| Product Type | Modular plug |
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
|
|
|
| Body Features | |
| Conductor Type | Solid | Stranded |
|
|
|
| Configuration Features | |
| Number of Positions | 8 |
| Keyed | No |
|
|
|
| Contact Features | |
| Contact Base Material | Phosphor bronze |
| Contact Mating Area Plating Material | Gold |
| Contact Mating Area Plating Thickness | 50.00 µin | 1.27 µm |
| Number of Contacts Loaded | 8 |
|
|
|
| Dimensions | |
| Cable Jacket Outside Diameter Range | 0.20 in | 5.1 mm |
| Conductor Wire Size | 26–24 AWG |
| Insulated Conductor Outside Diameter | 0.034–0.039 in | 0.86–0.99 mm |
|
|
|
| Housing Features | |
| Housing Material | Glass filled polycarbonate |
|
|
|
| Industry Standards | |
| UL Flammability Rating | UL 1863 |
|
|
|
| Packaging Features | |
| Packaging Quantity | 100 |
|
|
|
| Product Type Features | |
| Cable Type | Round, unshielded |
| Performance Category | Category 5 |
| Connector Style | Plug |
| Jack Type | RJ45 |
| Latch Style | Standard |
| Shielded | No |
|
|
|
| Termination Features | |
| Termination Method to Wire/Cable | Insulation Displacement Crimp (IDC) |
