Power and control cables
Harsh conditions
High mechanical and chemical resistance

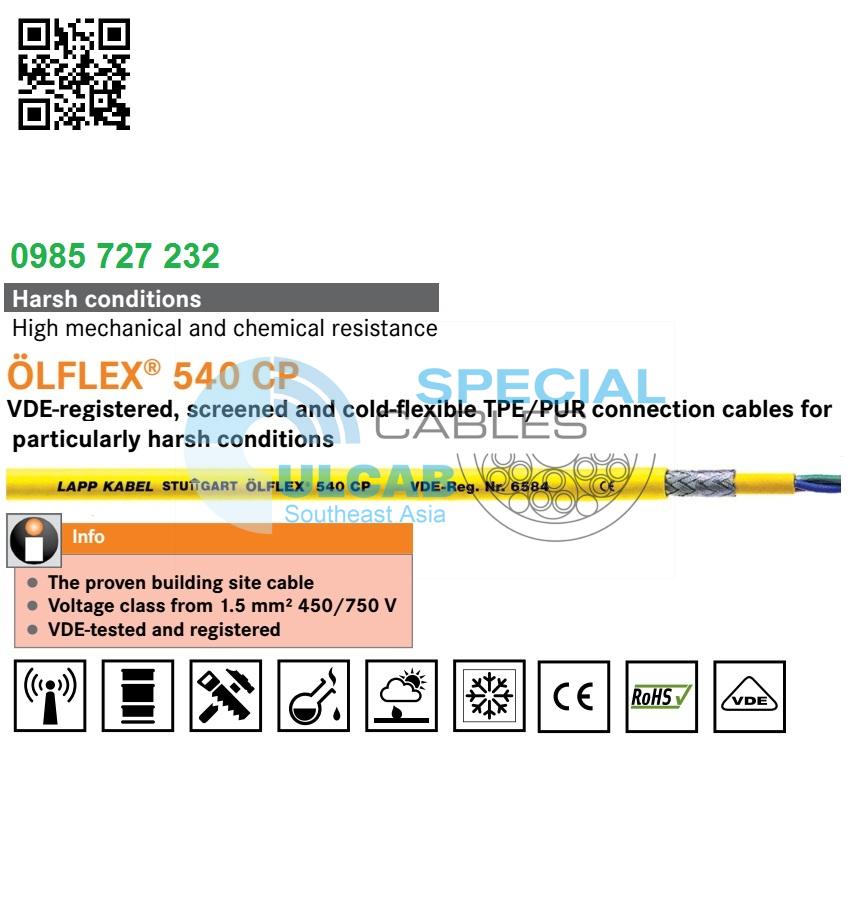

LAPP KABEL ÖLFLEX® 540 CP
Shielded, abrasion- and oil-resistant PUR connection cable that is flexible at low temperatures for particularly harsh conditions – VDE-registered
ÖLFLEX® 540 CP – PUR connection cable, shielded, VDE registered outdoor use on constructions sites with yellow signal colour – flexible at cold temperatures, abrasion-resistant, halogen-free.
- The tried-and-tested building site cable
- Voltage class from 1.5 mm² 450/750 V
- VDE-tested and registered
Benefits
- Durable under harsh conditions thanks to robust PUR sheath material
- Resistant to contact with many mineral oil-based lubricants, diluted acids, aqueous alkaline solutions and other chemical media
- Wide temperature range for applications in harsh climatic environments
- Additional robustness thanks to inner sheath
- The signal colour of the outer sheath increases safety and visual perception
Application range
- Connection and extension cables
- Construction machinery
- Building sites, camp sites, event equipment
- Agricultural equipment
- For indoor and outdoor use
Product features
- Resistant to oil and drilling fluids according to IEC 61892-4, appendix D
- Abrasion-resistant and notch-resistant
- Halogen-free and flame-retardant (IEC 60332-1-2)
- Flexible at temperatures down to -40 °C
- Resistant to hydrolysis and microbes
Norm references / approvals
- VDE reg. no. 6583 up to 1.0 mm²
- VDE reg. no. 6584 from 1.5 mm²
Design
- Fine-wire, tin-plated copper conductor
- Core insulation made of TPE
- Cores twisted together
- Inner sheath made of TPE
- Tin-plated copper braiding
- Outer sheath: PUR – colour yellow
■ Technical data
Classification
- ETIM 5.0 Class-ID: EC001578
- ETIM 5.0 Class-Description: Flexible cable
Core identification code
- Coloured according to VDE 0293-308, see appendix T9
- (7-core version number-coded)
Conductor design
- Fine wire according to VDE 0295,
class 5 / IEC 60228 class 5
Minimum bending radius
- Occasional flexing: 12.5 x outer diameter
- Fixed installation: 6 x outer diameter
Nominal voltage
- Up to 1.0 mm²: U0/U: 300/500 V
- from 1.5 mm²: U0/U: 450/750 V
Test voltage
- 3000 V
Protective conductor
- G = with GN-YE protective conductor
- X = without protective conductor
Temperature range
- Occasional flexing: -40°C to +90°C
- Fixed installation: -50°C to +90°C
| Article number | Number of cores and mm² per conductor | Outer diameter (mm) | Copper index (kg/km) | Weight (kg/km) |
| ÖLFLEX® 540 CP U 0/U: 300/500 V |
||||
| 0012752 | 2 X 0.75 | 8.2 | 43.9 | 103 |
| 0012753 | 3 G 0.75 | 8.5 | 67.6 | 140 |
| 00127553 | 5 G 0.75 | 10.2 | 75.0 | 164 |
| 0012757 | 2 X 1.0 | 8.5 | 65.2 | 138 |
| 0012758 | 3 G 1.0 | 9.3 | 74.9 | 153 |
| 00127603 | 5 G 1.0 | 10.8 | 87.2 | 184 |
| 0012761 | 7 G 1.0 | 12.6 | 138.5 | 281 |
| ÖLFLEX® 540 CP U 0/U: 450/750 V |
||||
| 0012762 | 2 X 1.5 | 10.5 | 67.7 | 159 |
| 0012763 | 3 G 1.5 | 11.0 | 82.3 | 181 |
| 00127643 | 4 G 1.5 | 12.0 | 101.8 | 218 |
| 00127653 | 5 G 1.5 | 13.7 | 143.3 | 287 |
| 0012766 | 7 G 1.5 | 16.6 | 195.7 | 394 |
| 0012767 | 2 X 2.5 | 11.9 | 92.4 | 213 |
| 0012768 | 3 G 2.5 | 12.5 | 119.0 | 263 |
| 00127693 | 4 G 2.5 | 14.2 | 168.2 | 334 |
| 00127703 | 5 G 2.5 | 15.7 | 204.7 | 416 |
| 00127753 | 4 G 4 | 17.0 | 240.1 | 476 |
| 00127783 | 4 G 6 | 18.4 | 355.5 | 634 |
| 00127793 | 5 G 6 | 20.5 | 452.9 | 770 |
| 00127813 | 4 G 10 | 22.3 | 577.8 | 993 |
| 00127823 | 5 G 10 | 25.3 | 681.2 | 1151 |
