Power and control cables
Harsh conditions
High mechanical and chemical resistance

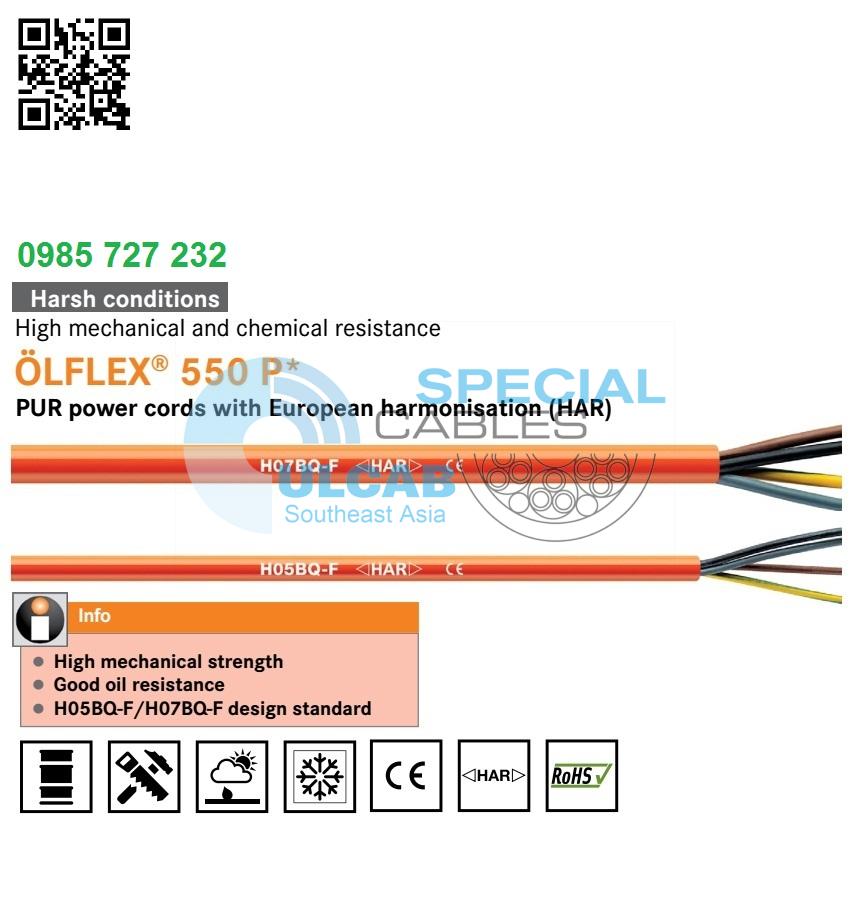

LAPP KABEL ÖLFLEX® 550 P*
Power cord with PUR outer sheath and European harmonisation (HAR)
ÖLFLEX® 550 P – PUR connection cable, harmonised according H05BQ-F / H07BQ-F type for oil- and abrasion-resistant use with hand-held electrical equipment or construction machinery.
- High mechanical strength
- Good oil resistance
- H05BQ-F/H07BQ-F design standard
Benefits
- Harmonised use in Europe
- Durable under harsh conditions thanks to robust PUR sheath material
- Resistant to contact with many mineral oil-based lubricants, diluted acids, aqueous alkaline solutions and other chemical media
- Wide temperature range for applications in harsh climatic environments
- The signal colour of the outer sheath increases safety and visual perception
Application range
- Portable hand-held electrical devices such as drills, sanders, jig saws or grinders
- Building sites, camp sites, event equipment
- Construction machinery
- Agricultural equipment
- For indoor and outdoor use
Product features
- Oil-resistant
- Abrasion-resistant and notch-resistant
- Flexible at temperatures down to -40 °C
- Resistant to hydrolysis and microbes
Norm references / approvals
- EN 50525-2-21
- H05BQ-F/H07BQ-F design standard
Design
- Fine-wire, bare copper conductor
- Core insulation: Rubber compound
- Cores twisted together
- PUR outer sheath
- Sheath colour: Orange
■ Technical data
Classification
- ETIM 5.0 Class-ID: EC001578
- ETIM 5.0 Class-Description: Flexible cable
Core identification code
- Coloured according to VDE 0293-308, see appendix T9
Conductor design
- Fine wire according to VDE 0295,
class 5 / IEC 60228 class 5
Minimum bending radius
- For flexible use:
12.5 x outer diameter - Fixed installation: 4 x outer diameter
Nominal voltage
- Up to 1.0 mm²: U0/U: 300/500 V
- from 1.5 mm²: U0/U: 450/750 V
Test voltage
- 3000 V
Protective conductor
- G = with GN-YE protective conductor
- X = without protective conductor
Temperature range
- Occasional flexing: -40°C to +90°C
- Fixed installation: -50°C to +90°C
| Article number | Number of cores and mm² per conductor | Outer diameter (mm) | Copper index (kg/km) | Weight (kg/km) |
| ÖLFLEX® 550 P U 0/U: 300/500 V |
||||
| 0013600 | 2 X 0.75 | 5.7 – 7.4 | 14.4 | 50 |
| 0013601 | 3 G 0.75 | 6.2 – 8.1 | 21.6 | 64 |
| 00136023 | 4 G 0.75 | 6.8 – 8.8 | 28.8 | 78 |
| 00136033 | 5 G 0.75 | 7.6 – 9.9 | 36.0 | 98 |
| 0013610 | 2 X 1.0 | 6.1 – 8.0 | 19.2 | 60 |
| 0013611 | 3 G 1.0 | 6.5 – 8.5 | 29.0 | 74 |
| 00136123 | 4 G 1.0 | 7.1 – 9.3 | 38.4 | 92 |
| 00136133 | 5 G 1.0 | 8.0 – 10.3 | 48.0 | 114 |
| ÖLFLEX® 550 P U 0/U: 450/750 V |
||||
| 0013620 | 2 X 1.5 | 7.6 – 9.8 | 29.0 | 87 |
| 0013621 | 3 G 1.5 | 8.0 – 10.4 | 43.0 | 108 |
| 00136223 | 4 G 1.5 | 9.0 – 11.6 | 58.0 | 137 |
| 00136233 | 5 G 1.5 | 9.8 – 12.7 | 72.0 | 165 |
| 0013630 | 2 X 2.5 | 9.0 – 11.6 | 48.0 | 90 |
| 0013631 | 3 G 2.5 | 9.6 – 12.4 | 72.0 | 161 |
| 00136323 | 4 G 2.5 | 10.7 – 13.8 | 96.0 | 206 |
| 00136333 | 5 G 2.5 | 11.9 – 16.3 | 120.0 | 254 |
