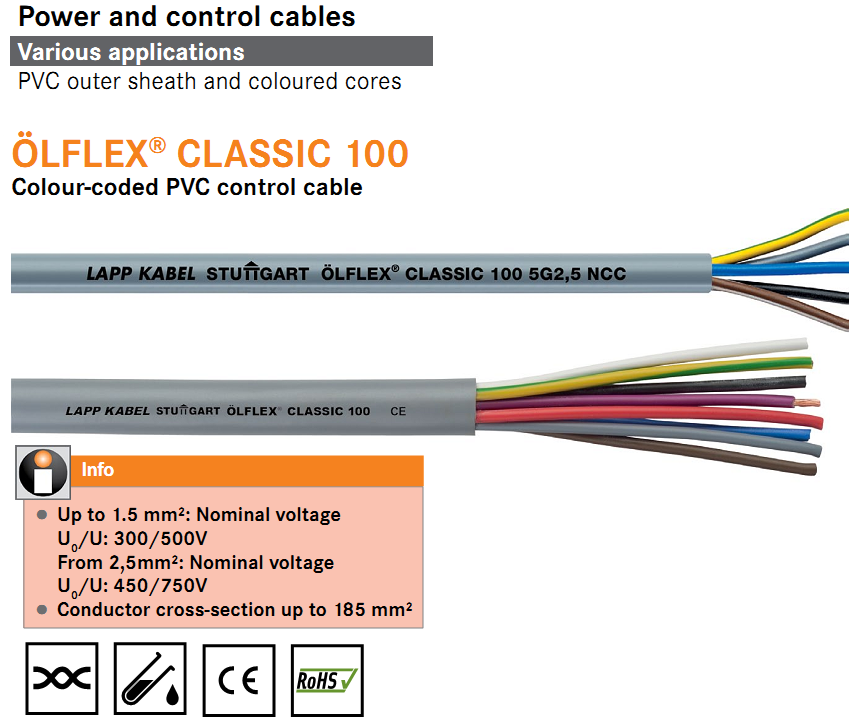

ÖLFLEX® CLASSIC 100 450/750 V
Colour-coded PVC power and control cable
ÖLFLEX® CLASSIC 100 – flexible PVC cable, colour coded. Connection and control cable for various applications, 450/750V, also for YSLY or YY
- Nominal voltage U0/U: 450/750V
- Identical to previous ÖLFLEX CLASSIC 100 starting at 2.5 mm²
- For nominal voltage U0/U: 300/500V and conductor cross-sections below 2.5mm² see ÖLFLEX® CLASSIC 100 300/500V
Benefits
- High electrical safety due to 4 kV test voltage
- Good flexibility thanks to core stranding with short lay lengths
Application range
- Plant construction
Machine building
Heating and air-conditioning systems
Power plant engineering - Dry or damp rooms that are subject to normal mechanical loads
- For fixed installation as well as occasional flexing with free, non-continuously recurring movement without tensile load
- Suitable for torsional applications which are typical for the loop in wind turbine generators (WTG)
Product features
- Flame-retardant according to IEC 60332-1-2
- Good chemical resistance, see catalogue appendix T1
Norm references / approvals
- Based on IEC 60227-5 and EN 50525-2-51
Design
- Finely stranded bare copper wires
- PVC core insulation LAPP P8/1
- Cores twisted in layers
- PVC sheath, grey (RAL 7001)
Technical Data
Classification
- ETIM 5.0 Class-ID: EC001578
- ETIM 5.0 Class-Description: Flexible cable
Core identification code
- Up to 5 cores: colour-coded according to VDE 0293-308, refer to Appendix T9
- From 6 cores: ÖLFLEX® colour code (appendix T7)
Conductor design
- Fine wire according to VDE 0295,
class 5 / IEC 60228 class 5
Torsion movement in WTG
- TW-0 & TW-1, refer to Appendix T0
Minimum bending radius
- Occasional flexing: 15 x outer diameter
- Fixed installation: 4 x outer diameter
Nominal voltage
- U0/U: 450/750 VAC
In protected and fixed installations:
U0/U: 600/1000 V
Test voltage
- 4000 V
Protective conductor
- G = with GN-YE protective conductor
- X = without protective conductor
Temperature range
- Occasional flexing: -5°C to +70°C
- Fixed installation: -40°C to +80°C
Article number | Number of cores and mm² per conductor |
Outer diameter (mm) | Copper index (kg/km) | Weight (kg/km) |
ÖLFLEX® CLASSIC 100 450/750 V | ||||
0010086 | 2 X 2.5 | 8,9 | 48 | 128 |
0010087 | 3 G 2.5 | 9,6 | 72 | 162 |
00100933 | 3 X 2.5 | 9,6 | 72 | 162 |
00100883 | 4 G 2.5 | 10,7 | 96 | 203 |
00100893 | 5 G 2.5 | 11,8 | 120 | 242 |
0010091 | 7 G 2.5 | 13,1 | 168 | 321 |
0010092 | 8 G 2.5 | 15,8 | 192 | 385 |
0010100 | 2 X 4 | 10,4 | 76,8 | 187 |
0010210 | 3 G 4 | 11,2 | 115,2 | 244 |
00101013 | 4 G 4 | 12,5 | 154 | 297 |
00101023 | 5 G 4 | 13,7 | 192 | 355 |
0010103 | 7 G 4 | 15,2 | 269 | 471 |
0010105 | 3 G 6 | 12,6 | 173 | 318 |
00101063 | 4 G 6 | 13,8 | 230 | 394 |
00101073 | 5 G 6 | 15,6 | 288 | 489 |
0010108 | 7 G 6 | 17,3 | 403 | 651 |
0010301 | 3 G 10 | 15,9 | 288 | 516 |
00101093 | 4 G 10 | 17,6 | 384 | 650 |
00101103 | 5 G 10 | 19,7 | 480 | 792 |
0010111 | 7 G 10 | 21,7 | 672 | 1058 |
0010302 | 3 G 16 | 18,3 | 461 | 728 |
00101123 | 4 G 16 | 20,4 | 614 | 1087 |
00101133 | 5 G 16 | 22,8 | 768 | 1118 |
0010303 | 3 G 25 | 23 | 720 | 1388 |
00101153 | 4 G 25 | 25,4 | 960 | 1582 |
00101163 | 5 G 25 | 28,5 | 1200 | 1771 |
0010304 | 3 G 35 | 25,6 | 1008 | 1766 |
00101173 | 4 G 35 | 28,5 | 1344 | 2106 |
00101183 | 5 G 35 | 31,9 | 1680 | 2635 |
0010305 | 3 G 50 | 31 | 1440 | 2556 |
00101193 | 4 G 50 | 34,5 | 1920 | 2943 |
00103133 | 5 G 50 | 38,6 | 2400 | 3936 |
0010306 | 3 G 70 | 35,3 | 2016 | 3182 |
00101203 | 4 G 70 | 39,4 | 2688 | 4092 |
00103143 | 5 G 70 | 44,1 | 3360 | 4800 |
0010307 | 3 G 95 | 41,3 | 2736 | 4675 |
00101213 | 4 G 95 | 45,8 | 3648 | 5290 |
00103153 | 5 G 95 | 51,6 | 4560 | 5600 |
0010308 | 3 G 120 | 47,6 | 3456 | 5626 |
00103093 | 4 G 120 | 53,1 | 4608 | 6994 |
00103113 | 4 G 150 | 57,4 | 5760 | 7500 |
00103123 | 4 G 185 | 62,8 | 7104 | 8300 |
