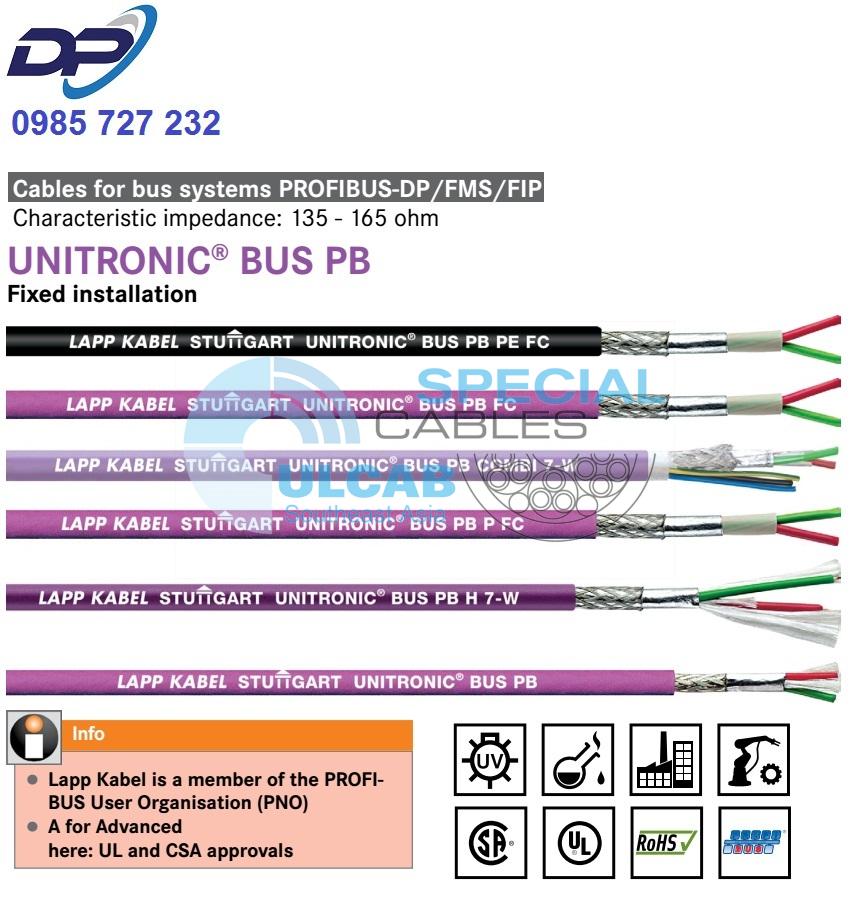

| Data communication systems |
| Cables for bus systems PROFIBUS-DP/FMS/FIP |
| Characteristic impedance: 135 – 165 ohm |
UNITRONIC® BUS PB
Fixed installation
These bus cables can be used for PROFIBUS-DP, PROFIBUS-FMS and FIP. Available with Fast Connect and halogen-free.
- Lapp Kabel is a member of the PROFIBUS user organisation (PNO)
- A for Advanced
here: UL and CSA certifications
Application range
- For fixed installation
Maximum electromagnetic screening - Dry or damp rooms
- Article no. 2170233, 2170333, 2170820, 2170824, 2170826 are all UV-resistant
Product features
- These bus cables can be used for PROFIBUS-DP as well as for PROFIBUS-FMS and FIP
- Based on the bit rates listed, in accordance with PNO specifications the following maximum cable lengths for a bus segment apply
(cable type A, PROFIBUS-DP):
93.75 kbit/s = 1200 m
187.5 kbit/s = 1000 m
500 kbit/s = 400 m
1.5 Mbit/s = 200 m
12.0 Mbit/s = 100 m
Norm references / approvals
- In accordance with DIN 19245 and EN 50170, e.g. for SIEMENS SIMATIC NET, also suitable for FIP (Factory Instrumentation Protocol)
- See below for UL certification type
Design
- FC: “Fast Connect” cable design
- P: Polyurethane
H: Halogen-free - PE: Polyethylene, sheath colour, black. E.g. for the food
and beverage industry. - 7-W: 7-wire, e.g. for applications
where vibrations occur - COMBI: Data transmission and
power supply in one cable
Classification
- ETIM 5.0 Class-ID: EC000830
- ETIM 5.0 Class-Description: Data cable
Operating capacitance
- (800 Hz): max. 30 nF/km
Peak operating voltage
- (not for power applications)
250 V
Conductor resistance
- (loop): max. 186 ohm/km.
See data sheet
Minimum bending radius
- Fixed installation: see data sheet
Test voltage
- Core/Core: 1500 V eff.
Characteristic impedance
- 150 ±15 ohm
