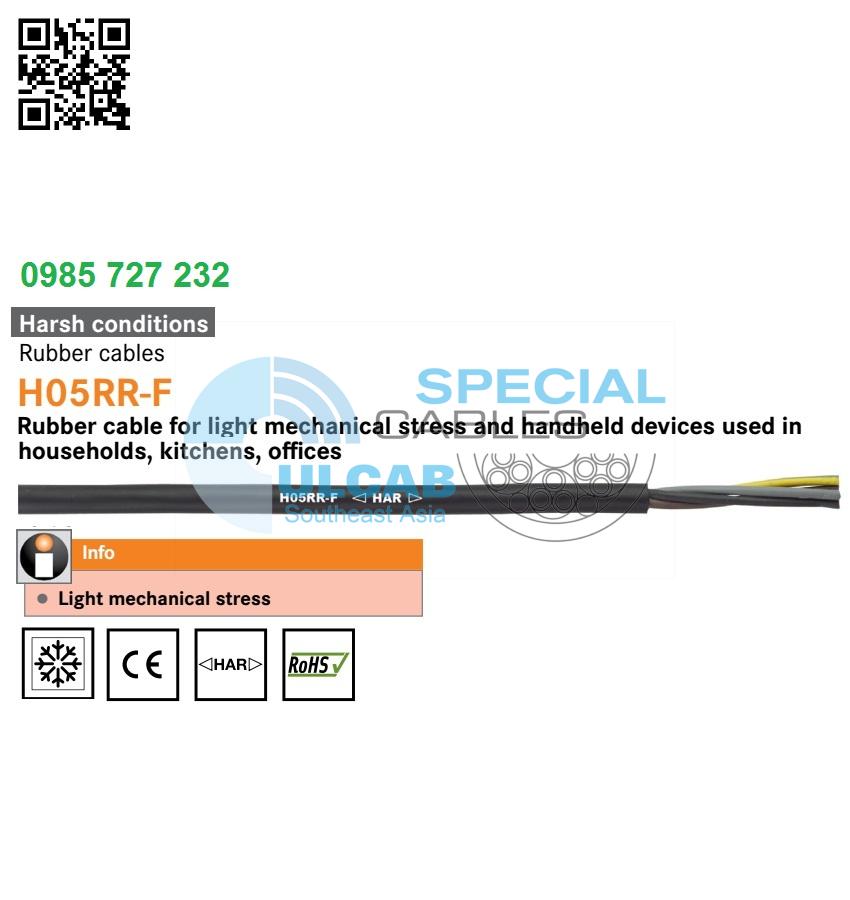

LAPP KABEL ÖLFLEX® H05RR-F
Rubber cable for light mechanical stress and hand-held devices used in households, kitchens, offices
H05RR-F, HAR-certified, power and control cable for household and hand-held devices, rubber, braided conductor class 5/flexible, indoor use, flame-retardant
Light mechanical stress
Benefits
- Type-compliant versions <HAR> certified with the “<HAR>” testing and certification mark for accelerated granting of approvals if final application of cable is within the European CENELEC area
Application range
- Hand-held and power supply devices according to EN 50565-2
- For lightweight workshop tools that are subject to light loads
- According to EN 50565-2: Dry and damp rooms; only temporary use outdoors; not for industrial/commercial or agricultural facilities, except tailors’ workshops; not suitable for connection to industrial power tools
- Event equipment
Product features
- Ozone-resistant
Norm references / approvals
- <HAR> type certification according to EN 50525-2-21
Design
- Bare copper stranded wire according to HAR standard
- Core insulation: Rubber compound, type EI 4
- Outer sheath: Rubber compound type EM 3
■ Technical data
Classification
- ETIM 5.0 Class-ID: EC001578
- ETIM 5.0 Class-Description: Flexible cable
Core identification code
- Coloured according to HD 308/VDE 0293-308
Conductor design
- Fine wire according to VDE 0295 class 5 / IEC 60228 class 5
Minimum bending radius
- 4 to 8 x outer diameter (EN 50565-1)
Nominal voltage
- U0/U: 300/500 V
Test voltage
- 2000 V
Protective conductor
- G = with GN-YE protective conductor
- X = without protective conductor
Current load capacity
- According to IEC 60364-5-52/ VDE 0298-4
- EN 50565-1/ VDE 0298-565-1
Temperature range
- Flexible use: -25°C to +60°C
| Article number | Number of cores and mm² per conductor | Outer diameter (mm) | Copper index (kg/km) | Weight (kg/km) |
| 1600203 | 2 X 0.75 | 5.7 – 7.4 | 14.4 | 61 |
| 1600207 | 3 G 0.75 | 6.2 – 8.1 | 21.6 | 75 |
| 1600204 | 2 X 1.0 | 6.1 – 8.0 | 19.2 | 73 |
| 1600208 | 3 G 1.0 | 6.5 – 8.5 | 28.8 | 86 |
| 16002113 | 4 G 1.0 | 7.1 – 9.3 | 38.4 | 105 |
| 1600205 | 2 X 1.5 | 7.6 – 9.8 | 28.8 | 115 |
| 1600200 | 3 G 1.5 | 8.0 – 10.4 | 43.2 | 135 |
| 16002013 | 4 G 1.5 | 9.0 – 11.6 | 57.6 | 165 |
| 16002023 | 5 G 1.5 | 9.8 – 12.7 | 72.0 | 190 |
| 1600206 | 2 X 2.5 | 9.0 – 11.6 | 48.0 | 160 |
| 1600209 | 3 G 2.5 | 9.6 – 12.4 | 72.0 | 190 |
| 16002123 | 4 G 2.5 | 10.7 – 13.8 | 96.0 | 235 |
| 16002133 | 5 G 2.5 | 11.9 – 15.3 | 120.0 | 285 |
