2-port 10/100/1000M Ethernet Media Converter
MC202

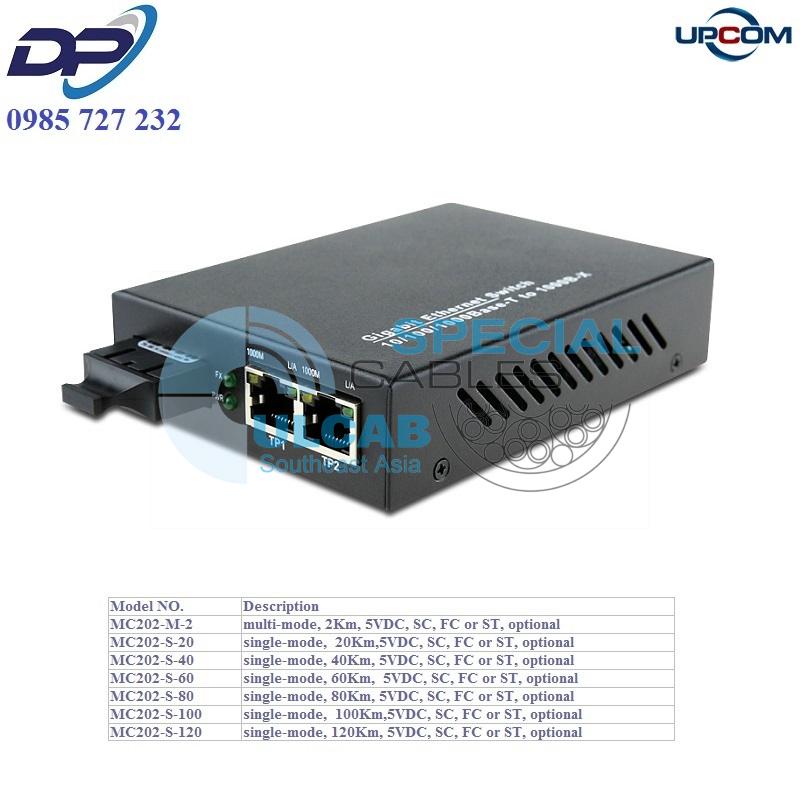

MC202 complies with IEEE802.3, IEEE802.3u, IEEE802.3x Standards. It is designed to convert data signal between 10/100/1000 Base-TX and 1000Base-FX fast Ethernet. It supports 10/100/1000Base-TX and 1000Base-FX applications. The data signal converted by such high performance media converter can be transmitted up to 120Km maximum by fiber-optical cable. The Converter is equipped one optic port and two RJ45 Jacks and one external power supply receptacle.
Introduction
MC202 complies with IEEE802.3, IEEE802.3u, IEEE802.3x Standards. It is designed to convert data signal between 10/100/1000 Base-TX and 1000Base-FX fast Ethernet. It supports 10/100/1000Base-TX and 1000Base-FX applications. The data signal converted by such high performance media converter can be transmitted up to 120Km maximum by fiber-optical cable. The Converter is equipped one optic port and two RJ45 Jacks and one external power supply receptacle. LED indicators are built-in for easy diagnosing and monitoring the status of. It can be configured automatically for Full Duplex or Half Duplex operation.
Features
1. Accord to IEEE802.1 10Base-T, IEEE802.3u 100Base-TX, IEEE802.3 1000Base-FX
2. MDI/MDI-X auto negotiation, 10M/100/1000M auto negotiation
3. Supports full /half duplex, Point-to-point transparent transfer
4. Power External 5VDC input
5. Plug-and-play, easy to installation
6. High-performance 1.25Gbps bandwidth.
7. Complies with FCC, 15 CLASS A ,RoHs and CE MARK
8. Can insert to 2U 19″, 14 slots Rackmount(power external)
| Interface | |
| Standards | comply with IEEE802.1 10Base-T, IEEE802.3u 100Base-TX, IEEE 802.3ab 1000Base-TX,IEEE802.3z 1000Base-SX/LX standards |
| RJ45 port rate | 10/100/1000Mbps auto negotiation |
| Optic port rate | 1000Mbps |
| Working | Asynchronous, point to point |
| Transfer distance | |
| RJ45port | 100m |
| Fiber optic | 20,40,60,80,100,120km(SM), 2 km(MM) optional |
| RJ45 port cable | UTP 5E |
| Fiber connector | SC,ST,FC optional |
| Fiber optic cables | Single Mode:8.3/125,8.7/125,9/125 or 10/125 um, Muti-Mode:50/125,62.5/125 um |
| Wavelength | 850nm,1310nm,1550nm |
| Power | |
| Power supply | External 5VDC input |
| Consumption | 4W |
| Environment | |
| Operating temperature | -25°C to50°C |
| Storage temperature | -35°C to 70°C |
| Operating humidity | 5% to 95%(no condensation) |
| Dimensions: | 110×70×25mm(Power External) |
| Shell | Iron |
| Color | Black |
| Weight | 180g(power external) |
| Warranty | 3 years |
| Approvals | FCC,CE, RoHS approvals |
| Model NO. | Description |
| MC202-M-2 | multi-mode, 2Km, 5VDC, SC, FC or ST, optional |
| MC202-S-20 | single-mode, 20Km,5VDC, SC, FC or ST, optional |
| MC202-S-40 | single-mode, 40Km, 5VDC, SC, FC or ST, optional |
| MC202-S-60 | single-mode, 60Km, 5VDC, SC, FC or ST, optional |
| MC202-S-80 | single-mode, 80Km, 5VDC, SC, FC or ST, optional |
| MC202-S-100 | single-mode, 100Km,5VDC, SC, FC or ST, optional |
| MC202-S-120 | single-mode, 120Km, 5VDC, SC, FC or ST, optional |
| MC202-SS-20 | single-mode, single fiber, 20Km, 5VDC, SC, FC or ST, optional |
| MC202-SS-40 | single-mode, single fiber, 40Km, 5VDC, SC, FC or ST, optional |
| MC202-SS-60 | single-mode, single fiber, 60Km, 5VDC, SC, FC or ST, optional |
| MC202-SS-80 | single-mode, single fiber, 80Km, 5VDC, SC, FC or ST, optional |
DATA SHEET
