JZ-500 orange |

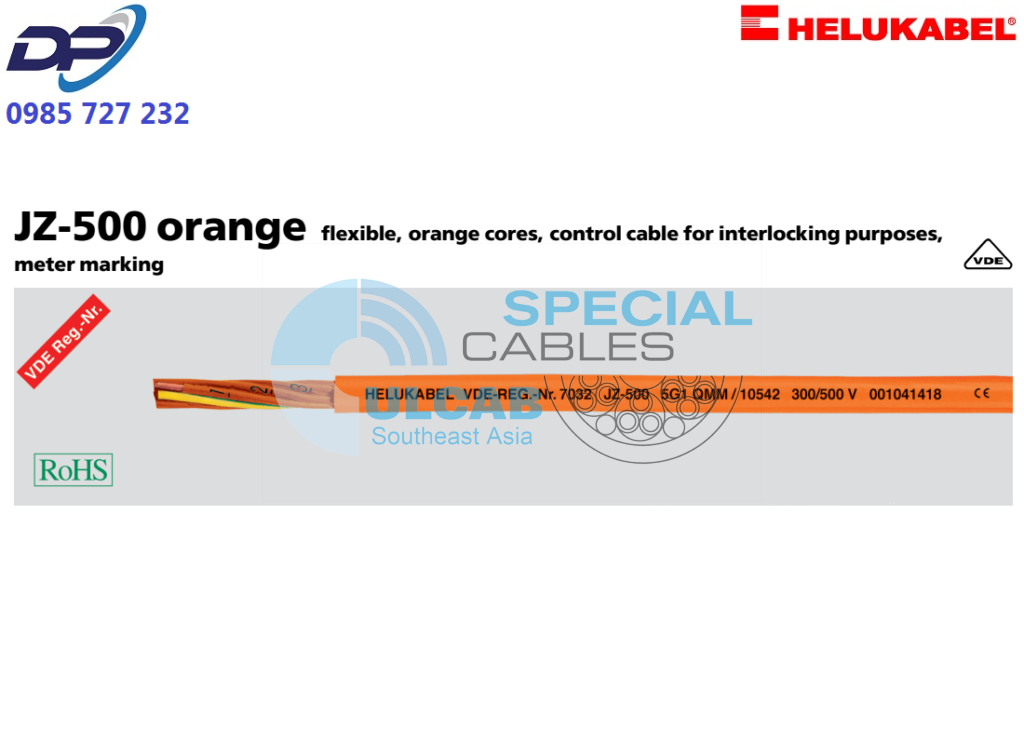

flexible, orange cores, control cable for interlocking purposes, meter marking |
- Technical data
-
- Special-PVC control cable for
interlocking purposes adapted
to DIN VDE 0285-525-2-51/
DIN EN 50525-2-51 - Temperature range
flexing -15°C to +80°C
fixed installation -40°C to +80°C - Nominal voltage
U0/U 300/500 V - Test voltage
4000 V - Breakdown voltage
min. 8000 V - Insulation resistance
min. 20 MOhm x km - Minimum bending radius
flexing 7,5x cable Ø
fixed installation 4x cable Ø - Radiation resistance
up to 80×106 cJ/kg (up to 80 Mrad)
- Special-PVC control cable for
- Cable structure
-
- Bare copper conductor, to
DIN VDE 0295 cl.5, fine wire,
BS 6360 cl.5, IEC 60228 cl.5 - Core insulation of special PVC
compound type Z 7225 - Core identification to DIN VDE 0293
orange cores with continuous black
numbering - JZ-version with GN-YE conductor
3 cores and above
OZ-version without GN-YE conductor - Cores stranded in layers with
optimal lay length - Outer sheath of special PVC
compound type TM2 to
DIN VDE 0207-363-4-1/DIN EN 50363-4-1 - Sheath colour: orange (RAL 2003)
- With meter marking
- Bare copper conductor, to
- Properties
-
- Extensively oil resistant,
oil-/chemical resistance
see table Technical Informations - The materials used during manufacturing
are cadmium-free, contain no silicone
and are free from substances harmful
to the wetting properties of lacquers
Tests
- PVC self-extinguishing and flame retardant
acc. to DIN VDE 0482-332-1-2,
DIN EN 60332-1-2, IEC 60332-1 (equivalent
DIN VDE 0472 part 804 test method B)
- Extensively oil resistant,
- Note
-
- G = with GN-YE conductor
x = without GN-YE conductor (OZ) - AWG sizes are approximate equivalent
values. The actual cross section is in mm².
- G = with GN-YE conductor
- Application
- These cables are used for flexible use for medium mechanical stresses with free movement without tensile stress or forced movements in dry, moist and wet rooms but not suitable for open air, as control cable acc. to EN 60204 part 1 and VDE 0113 part 1. As per recommendation of the specified standards the insulated conductors of control current circuits should be coloured orange, when they are used for interlocking purposes. These control circuits are supplied with an external power and remain active under current when the main switch is disconnected or switched off.
CE = Product conforms with Low-Voltage Directive 2014/35/EU. - Downloads
- Data sheet
Certificate of compliance
|
