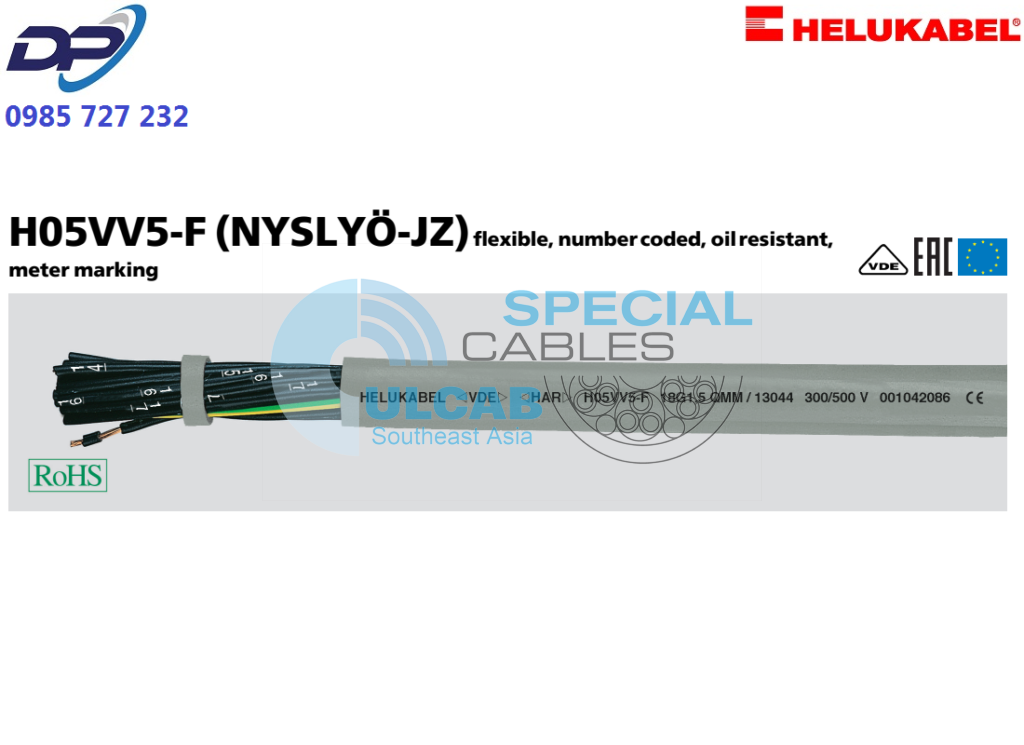

Dây Cáp Điều Khiển Helukabel ( H05VV5-F (NYSLYÖ-JZ) ) | Chính Hãng-Giá Tốt Nhất

Technical data

• Spezial-PVC control cable with
  oil resistant outer sheath acc. to
  DIN VDE 0285-525-2-51 /
  DIN EN 50525-2-51 and IEC 60227/75
• Temperature range
  flexing -5°C to +70°C
  fixed installation -40°C to +70°C
• Nominal voltage U₀/U 300/500 V
• Test voltage 2 kV, 5 minutes
• Breakdown voltage min. 4000 V
• Insulation resistance
  min. 20 MOhm x km
• Minimum bending radius
  flexing 7,5x cable Ø
  fixed installation 4x cable Ø
• Radiation resistance
  up to 80×10⁶ cJ/kg (up to 80 Mrad)

Cable structure

• Bare copper conductor, to
  DIN VDE 0295 cl.5, fine wire,
  BS 6360 cl.5, IEC 60228 cl.5
• Core insulation of special PVC
  compound type TI2 to
  DIN VDE 0207-363-3 / DIN EN 50363-3
• Core identification to DIN VDE 0293
  black cores with continuous white
  numbering
• GN-YE conductor, 3 cores and above
  in the outer layer
• Outer sheath of special PVC
  compound type TM5 to
  DIN VDE 0207-363-4-1/DIN EN 50363-4-1
• Sheath colour: grey (RAL 7001)
• With meter marking

Properties

• The materials used during manufacturing
  are cadmium-free, contain no silicone
  and are free from substances harmful
  to the wetting properties of lacquers

Tests

• PVC self-extinguishing and flame retardant
  acc. to DIN VDE 0482-332-1-2 /
  DIN EN 60332-1-2 / IEC 60332-1-2
• Oil resistant to DIN EN 60811-404

Note

• G = with GN-YE conductor
  x = without GN-YE conductor (OZ)
• AWG sizes are approximate equivalent
  values. The actual cross section is in mm².
• Screened analogue type:
  H05VVC4V5-K (NYSLYCYÖ-JZ)

Application

These cables are used for flexible use for medium mechanical stresses with free movement without tensile stress or forced movements in dry, moist and wet rooms but not suitable for open air.
These are designed as control and connecting cables to machines, tool machineries, conveyor belts and production lines. These cables are not effected to the chemical influences. Cables for moist and wet rooms, specially used for machines in breweries, bottling plants and car washing stations.
These cables may be allowed to move once installed provided that the cables are not mechanically stressed during movement.
CE = Product conforms with Low-Voltage Directive 2014/35/EU.
