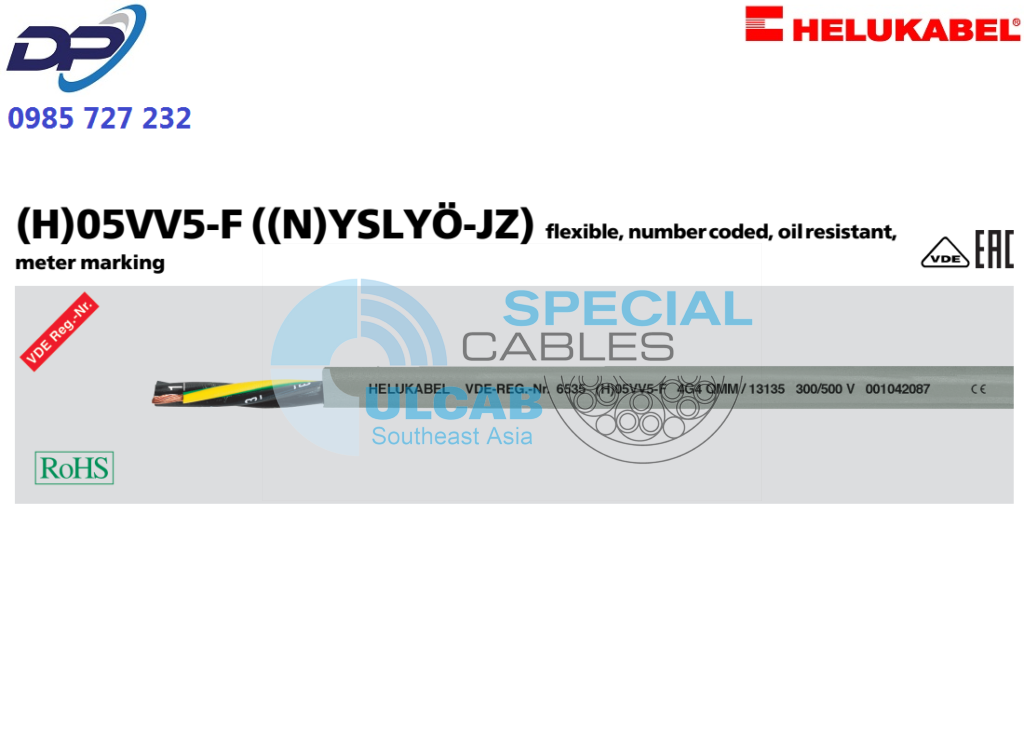

• Spezial-PVC control cable with
  oil resistant outer sheath adapted to
  DIN VDE 0285-525-2-51 /
  DIN EN 50525-2-51 and IEC 60227/75
  deviation of conductor cross sections
• Temperature range
  flexing -5°C to +70°C
  fixed installation -40°C to +70°C
• Nominal voltage U₀/U 300/500 V
• Test voltage 2 kV, 5 minutes
• Breakdown voltage min. 4000 V
• Insulation resistance
  min. 20 MOhm x km
• Minimum bending radius
  flexing 7,5x cable Ø
  fixed installation 4x cable Ø
• Radiation resistance
  up to 80×10⁶ cJ/kg (up to 80 Mrad)

• Bare copper conductor, to
  DIN VDE 0295 cl.5, fine wire,
  BS 6360 cl.5, IEC 60228 cl.5
• Core insulation of special PVC
  compound type TI2 to
  DIN VDE 0207-363-3 / DIN EN 50363-3
• Core identification to DIN VDE 0293
  black cores with continuous white
  numbering
• GN-YE conductor, 3 cores and above
  in the outer layer
• Cores stranded in layers with
  optimal lay length
• Outer sheath of special PVC
  compound type TM5 to
  DIN VDE 0207-363-4-1/DIN EN 50363-4-1
• Sheath colour: grey (RAL 7001)
• With meter marking

• The materials used during manufacturing
  are cadmium-free, contain no silicone
  and are free from substances harmful
  to the wetting properties of lacquers

Tests

• PVC self-extinguishing and flame retardant
  acc. to DIN VDE 0482-332-1-2,
  DIN EN 60332-1-2, IEC 60332-1 (equivalent
  DIN VDE 0472 part 804 test method B)
• Oil resistant to DIN EN 60811-404

• G = with GN-YE conductor
  x = without GN-YE conductor (OZ)
• AWG sizes are approximate equivalent
  values. The actual cross section is in mm².
• screened analogue type:
  (H)05VVC4V5-K
