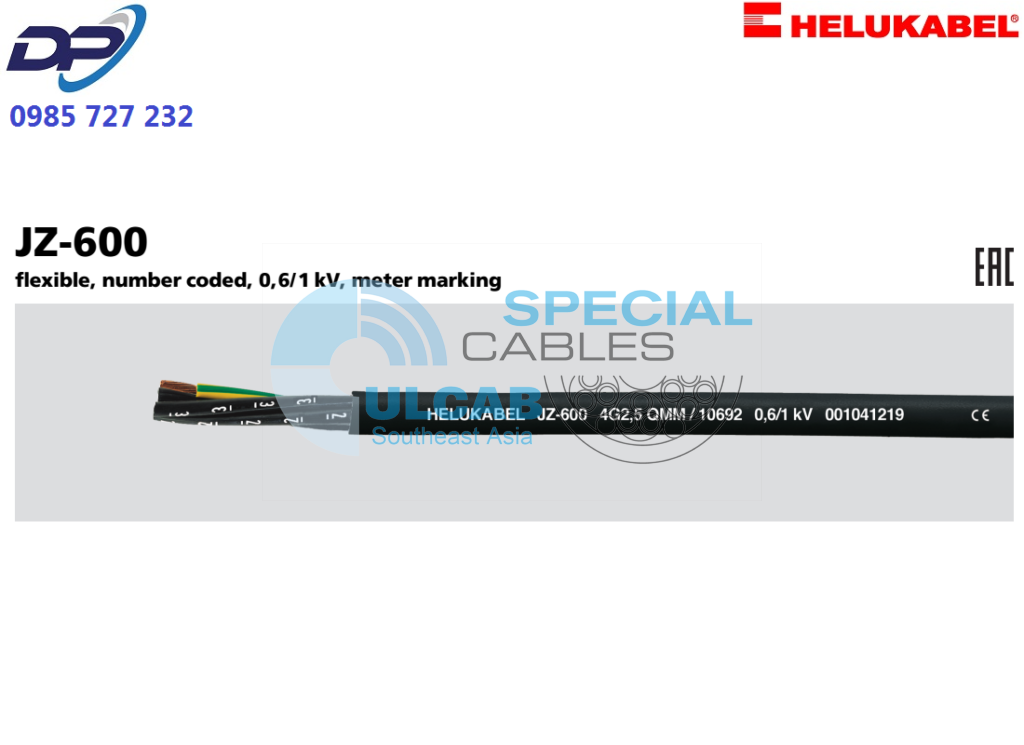

JZ-600

0,6/1 kV, flexible, number coded, meter marking

Technical data

• Special PVC control cable
  adapted to DIN VDE 0262
  and DIN VDE 0285-525-2-51 /
  DIN EN 50525-2-51,
  with insulation wall thickness for 1 kV
• Temperature range
  flexing -15°C  to  +80°C
  fixed installation -40°C  to  +80°C
• Nominal voltage
  U₀/U 0,6/1 kV
• Test voltage
  4000 V
• Breakdown voltage
  min. 8000 V
• Minimum bending radius
  flexing 7,5x cable Ø
  fixed installation 4x cable Ø

Cable structure

• Bare copper conductor, fine wire
  acc. to DIN VDE 0295 cl.5 /
  BS 6360 cl.5 / IEC 60228 cl.5
• Core insulation of special PVC
  compound type TI2 to
  DIN VDE 0207-363-3 / DIN EN 50363-3
• Core identification to DIN VDE 0293
  black cores with continuous white
  numbering
• GN-YE conductor, 3 cores and above
  in the outer layer
• Cores stranded in layers with
  optimal lay length
• Outer sheath of special PVC
  compound type TM2 to
  DIN VDE 0207-363-4-1/DIN EN 50363-4-1
• Sheath colour: black (RAL 9005)
• With meter marking

Properties

• Extensively oil resistant,
  oil-/chemical resistance
  see “Technical Information”
• UV resistant
• The materials used during manufacturing
  are cadmium-free, contain no silicone
  and are free from substances harmful
  to the wetting properties of lacquers

Tests

• PVC self-extinguishing and flame retardant
  acc. to DIN VDE 0482-332-1-2 /
  DIN EN 60332-1-2 / IEC 60332-1-2

Note

• G = with GN-YE conductor
  x = without GN-YE conductor (OZ)
• AWG sizes are approximate equivalent
  values. The actual cross section is in mm².
• Screened analogue type:
  JZ-600-Y-CY

Application

Wiring cable for measuring and controlling purposes in tool machinery, conveyor belts and production lines, for plant installations, air conditioning and in steel production plants and rolling mills. Suitable for installation for flexible use for medium mechanical stresses with free movement without tensile stress or forced movements in dry, moist and wet rooms as well as outside (fixed installation). Is not suitable to be used as direct burria (suitable from an outer diameter of 18,0 mm for direct burial) or as underwater cable. The cores have been numbered in such a way that the numbers are easily identifiable, even if the cable has only been stripped back a few cm. The core numbers have been underlined to avoid confusion. The earth core is located in the outer layer. The black, special PVC outer sheath is resistant to the ultra violet radiation. Mainly used in South-European, Eastern and Arabian countries.
CE = Product conforms with Low-Voltage Directive 2014/35/EU.
