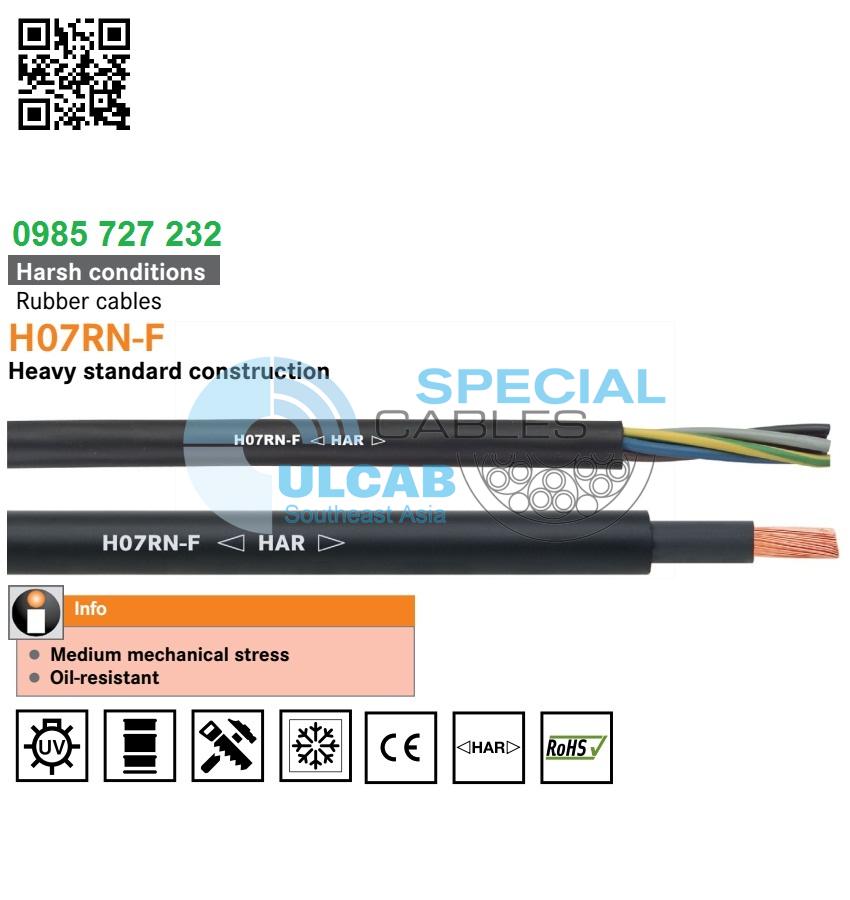

LAPP KABEL ÖLFLEX® H07RN-F

Heavy standard construction

H07RN-F, HAR, power and control cable, rubber, heavy, 450/750 V, industrial and agricultural use, class 5/flexible -25°C to +60°C, oil-resistant, flame-retardant

  • Medium mechanical stress
  • Oil-resistant

UV-resistant Oil-resistant Mechanical resistance Cold-resistant

Benefits

  • For mechanically more demanding applications
  • 1000 V AC protected + fixed installation
  • Arrangements made of single-core, rubber-sheathed cables H07RN-F can be used for short circuit-proof and short-to-ground-proof installations in accordance with IEC 60364-5-52/HD 60364-5-52/VDE 0100 part 520

Application range

  • Hand-held and power supply devices according to EN 50565-2
  • Medium, mechanical stress
  • Industrial, agricultural use
  • According to EN 50565-2: Use in dry, damp or wet rooms as well as for fixed installation e.g. on plaster

Product features

  • Flame-retardant according to IEC 60332-1-2
  • Oil-resistant according to EN 60811-404

Norm references / approvals

  • <HAR> H07RN-F design certification according to EN 50525-2-21

Design

  • Bare copper stranded wire according to HAR standard
  • Core insulation: Rubber compound, type EI 4
  • Outer sheath: Rubber compound type EM 2

■ Technical data

Classification

  • ETIM 5.0 Class-ID: EC001578
  • ETIM 5.0 Class-Description: Flexible cable

Core identification code

  • Up to 5 cores: according to VDE 0293-308 (appendix T9)
  • From 6 cores: black with white numbers

Conductor design

  • Fine wire according to VDE 0295 class 5 / IEC 60228 class 5

Minimum bending radius

  • 4 to 8 x outer diameter (EN 50565-1)

Nominal voltage

  • U0/U: 450/750 V

Test voltage

  • 2500 V

Protective conductor

  • G = with GN-YE protective conductor
  • X = without protective conductor

Current load capacity

  • According to IEC 60364-5-52/ VDE 0298-4
  • EN 50565-1/ VDE 0298-565-1

Temperature range

  • -25°C to +60°C
Article
number		 Number of cores and
mm² per conductor		 Outer diameter
(mm)		 Copper index
(kg/km)		 Weight
(kg/km)
1600096 1 X 1.5  5.7 – 7.1  14,4 59
1600099 1 X 2.5  6.3 – 7.9  24 72
1600097 1 X 4  7.2 – 9.0  38,4 99
1600098 1 X 6  7.9 – 9.8  57,6 130
1600194 1 X 10  9.5 – 11.9  96 230
1600195 1 X 16  10.8 – 13.4  153,6 320
1600196 1 X 25  12.7 – 15.8  240 450
1600193 1 X 35  14.3 – 17.9  336 605
1600197 1 X 50  16.5 – 20.6  480 825
1600189 1 X 70  18.6 – 23.3  672 1090
1600190 1 X 95  20.8 – 26.0  912 1405
1600198 1 X 120  22.8 – 28.6  1,152.0  1745
1600191 1 X 150  25.2 – 31.4  1,440.0  1887
1600175 1 X 185  27.6 – 34.4  1,776.0  2274
1600177 1 X 240  30.6 – 38.3  2,304.0  2955
30015435 1 X 300  33.5 – 41.9  2,880.0  3479
1600117 3 G 1.0  8.3 – 10.7  28,8 130
1600199 2 X 1.5  8.5 – 11.0  28,8 135
1600103 3 G 1.5  9.2 – 11.9  43,2 165
16001233 4 G 1.5  10.2 – 13.1  57,6 200
16001043 5 G 1.5  11.2 – 14.4  72 240
1600151 7 G 1.5  14.0 – 17.5  100,8 385
1600148 12 G 1.5  17.6 – 22.4  172,8 516
1600259 19 G 1.5  20.7 – 26.3  273,6 800
1600166 24 G 1.5  24.3 – 30.7  345,6 882
1600263 25 G 1.5  25.1 – 25.9  360 920
1600187 2 X 2.5  10.2 – 13.1  48 195
1600118 3 G 2.5  10.9 – 14.0  72 235
16001053 4 G 2.5  12.1 – 15.5  96 290
16001293 5 G 2.5  13.3 – 17.0  120 294
1600152 7 G 2.5  16.5 – 20.0  168 520
1600154 12 G 2.5  20.6 – 26.2  288 810
1600156 19 G 2.5  25.5 – 31.0  456 1200
1600157 24 G 2.5  28.8 – 36.4  576 1650
1600186 2 X 4  11.8 – 15.1  76,8 270
1600119 3 G 4  12.7 – 16.2  115,2 320
16001063 4 G 4  14.0 – 17.9  153,6 395
16001303 5 G 4  15.6 – 19.9  192 485
1600161 7 G 4  21.0 – 21.8  268,8 681
1600120 3 G 6  14.1 – 18.0  172,8 360
16001073 4 G 6  15.7 – 20.0  230,4 475
16001313 5 G 6  17.5 – 22.2  288 760
1600121 3 G 10  19.1 – 24.2  288 880
16001083 4 G 10  20.9 – 26.5  384 1060
16001093 5 G 10  22.9 – 29.1  480 1300
1600122 3 G 16  21.8 – 27.6  460,8 1090
16001103 4 G 16  23.8 – 30.1  614,4 1345
16001113 5 G 16  26.4 – 33.3  768 1680
16001123 4 G 25  28.9 – 36.6  960 1995
16001133 5 G 25  32.0 – 40.4  1,200.0  2470
1600124 3 G 35  29.3 – 37.1  1,008.0  1910
16001143 4 G 35  32.5 – 41.1  1,344.0  2645
16001363 5 G 35  37.0 – 45.0  1,680.0  2810
16001153 4 G 50  37.7 – 47.5  1,920.0  3635
1600126 5 G 50  40.0 – 50.8  2,400.0  4050
16001163 4 G 70  42.7 – 54.0  2,688.0  4830
16001283 4 G 95  48.4 – 61.0  3,648.0  6320
16001323 4 G 120  53.0 – 66.0  4,608.0  6830
16000883 4 G 150  58.0 – 73.0  5,760.0  8320
1600141 4 G 185  64.0 – 80.0  7,104.0  9800
1600183 4 G 240  72.0 – 91.0  9,216.0  12800
