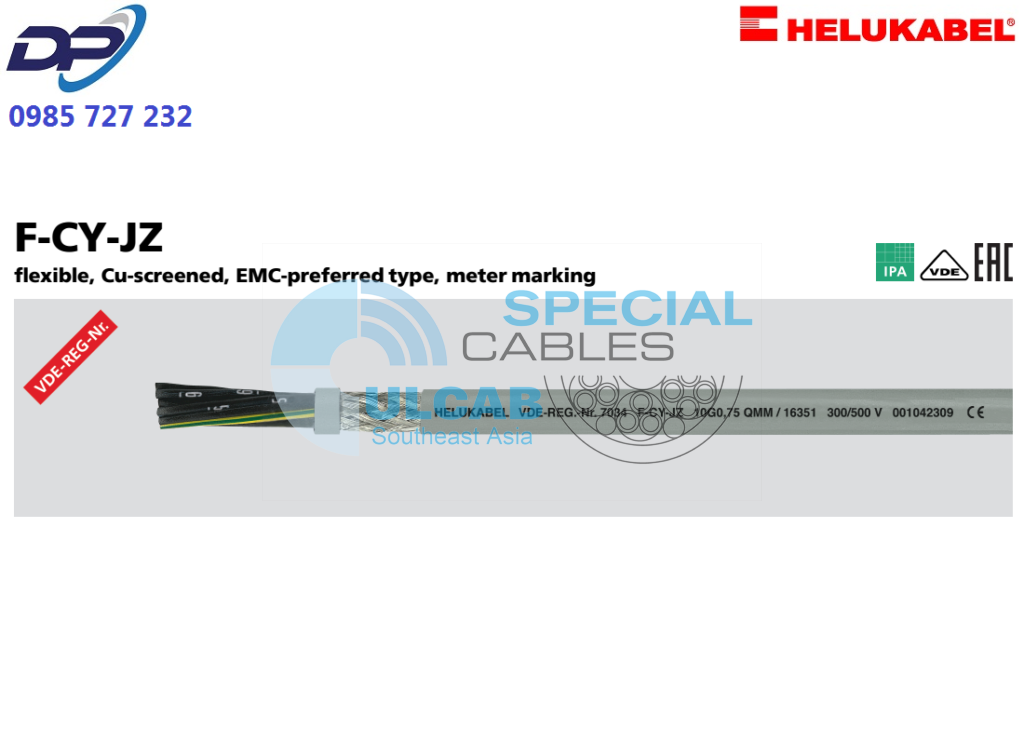

F-CY-JZ

flexible, screened, meter marking, EMC-preferred type

Technical data

• Special-PVC control cable adapted
  to DIN VDE 0285-525-2-51 /
  DIN EN 50525-2-51
• Temperature range
  flexing -10°C to +80°C
  fixed installation -40°C to +80°C
• Nominal voltage
  U₀/U 300/500 V
• Test voltage
  core/core 4000 V
  core/screen 2000 V
• Breakdown voltage
  min. 8000 V
• Insulation resistance
  min. 20 MOhm x km
• Mutual capacitance
  acc. to different cross sections
  0,5 up to 2,5 mm²:
  core/core approx. 150 pF/m
  core/screen approx. 270 pF/m
• Coupling resistance
  max. 250 Ohm/km
• Minimum bending radius
  flexing 10x cable Ø
  fixed installation 5x cable Ø
• Radiation resistance
  up to 80×10⁶ cJ/kg (up to 80 Mrad)

Cable structure

• Bare copper conductor, fine wire
  acc. to DIN VDE 0295 cl.5 /
  BS 6360 cl.5 / IEC 60228 cl.5
• Core insulation of special PVC
  compound type Z 7225
• Core identification to DIN VDE 0293
  black cores with continuous white
  numbering
• GN-YE conductor, 3 cores and above
  in the outer layer
• Cores stranded in layers with
  optimal lay length
• Foil wrapping
• Tinned copper braided screening,
  approx. 85% coverage
• Outer sheath of special PVC
  compound type TM2 to
  DIN VDE 0207-363-4-1/DIN EN 50363-4-1
• Sheath colour: grey (RAL 7001)
• With meter marking

Properties

• Extensively oil resistant,
  oil-/chemical resistance
  see “Technical Information”
• The materials used during manufacturing
  are cadmium-free, contain no silicone
  and are free from substances harmful
  to the wetting properties of lacquers

Tests

• PVC self-extinguishing and flame retardant
  acc. to DIN VDE 0482-332-1-2 /
  DIN EN 60332-1-2 / IEC 60332-1-2

Note

• G = with GN-YE conductor
  x = without GN-YE conductor (OZ)
• Please note “cleanroom qualified”
  when ordering.
• AWG sizes are approximate equivalent
  values. The actual cross section is in mm².
• Unscreened analogue type:
  JZ-500

Application

For use as a data cable in control circuits, in tool-making and machine industries as well as a signal cable in computer systems and electronics. The more usual PVC inner sheath has been replaced in these cables by a stabilising foil separator, thus reducing the total diameter of the cables considerably and thereby reducing the bending radius, total weight etc. The high covering percentage of the copper screening offers interference-free signal transfer etc. The dense screening assures disturbance-free transmission of all signals and impulses. An ideal disturbance-free control cable for the above application.
EMC = Electromagnetic compatibility
To optimize the EMC features we recommend a large round contact of the copper braiding on both ends.
CE = Product conforms with Low-Voltage Directive 2014/35/EU.
