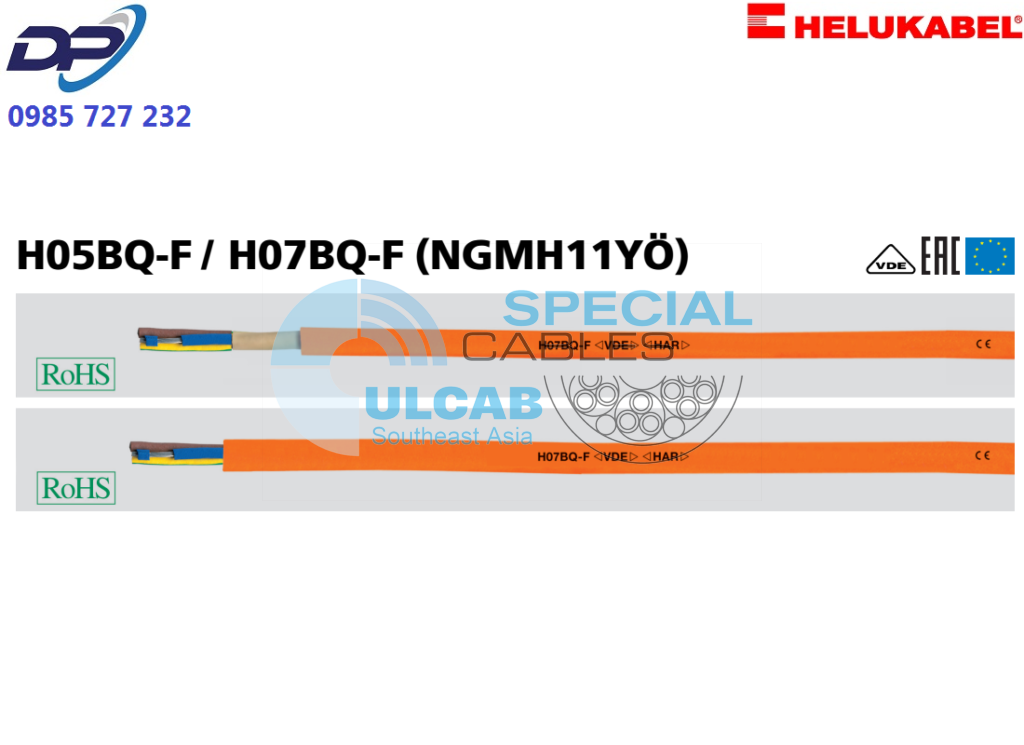

H05BQ-F
- Technical data
-
- EPR/PUR-insulated power cable acc. to
DIN VDE 0285-525-2-21 /
DIN EN 50525-2-21 - Temperature range
flexing -40°C to +80°C
fixed installation -50°C to +90°C - Permissible operating temperature
at conductor +90°C - Nominal voltage
H05BQ-F U0/U 300/500 V
H07BQ-F U0/U 450/750 V - Test voltage
H05BQ-F 2000 V
H07BQ-F 2500 V - Minimum bending radius
flexing 5x cable Ø
fixed installation 3x cable Ø - Radiation resistance
up to 100×106 cJ/kg (up to 100 Mrad)
- EPR/PUR-insulated power cable acc. to
- Cable structure
-
- Bare copper conductor, to
DIN VDE 0295 cl.5, fine wire,
BS 6360 cl.5, IEC 60228 cl.5 - Core insulation of rubber
compound type EI6 to
DIN VDE 0207-363-1 / DIN EN 50363-1 - Core identification to DIN VDE 0293-308
- GN-YE conductor, 3 cores and above
in the outer layer - Cores stranded in layers with
optimal lay length (inner fill compound permissible *) - Outer sheath of PUR
compound type TMPU to
DIN EN 50363-10-2 - Sheath colour: orange (RAL 2003)
- Bare copper conductor, to
- Properties
-
- Abrasion resistant
- Notch resistant
- Resistant to tearing and cutting
- Resistant to
Oils, fats, Petrol
Water and weathering effects
Oxygene and ozone
UV-radiation, Hydrolysis and Microbial attack - The materials used during manufacturing
are cadmium-free, contain no silicone
and are free from substances harmful
to the wetting properties of lacquers
- Note
-
- G = with green-yellow conductor
x = without green-yellow conductor - adapted to VDE
7G1,5 mm², 12G1,5 mm² and
cross section > 16 mm²
designation 07BQ-F - AWG sizes are approximate equivalent
values. The actual cross section is in mm². - *) Version with filler compound
- G = with green-yellow conductor
- Application
- These cables can be used for medium mechanical loads in dry, damp or wet environments, e. g. for connecting agricultural and commercial equipment and heaters provided there is no danger of contact with the hot parts or by radiation of heat. These robust and flexible cables are used for electrical tools such as drills and hand-held circular saws, as well as for portable motors and machinery in agriculture, at building sites, docks and refrigeration plants.
CE = Product conforms with Low-Voltage Directive 2014/35/EU. - Downloads
- Data sheet
Certificate of compliance
