JB-750 HMH-C |

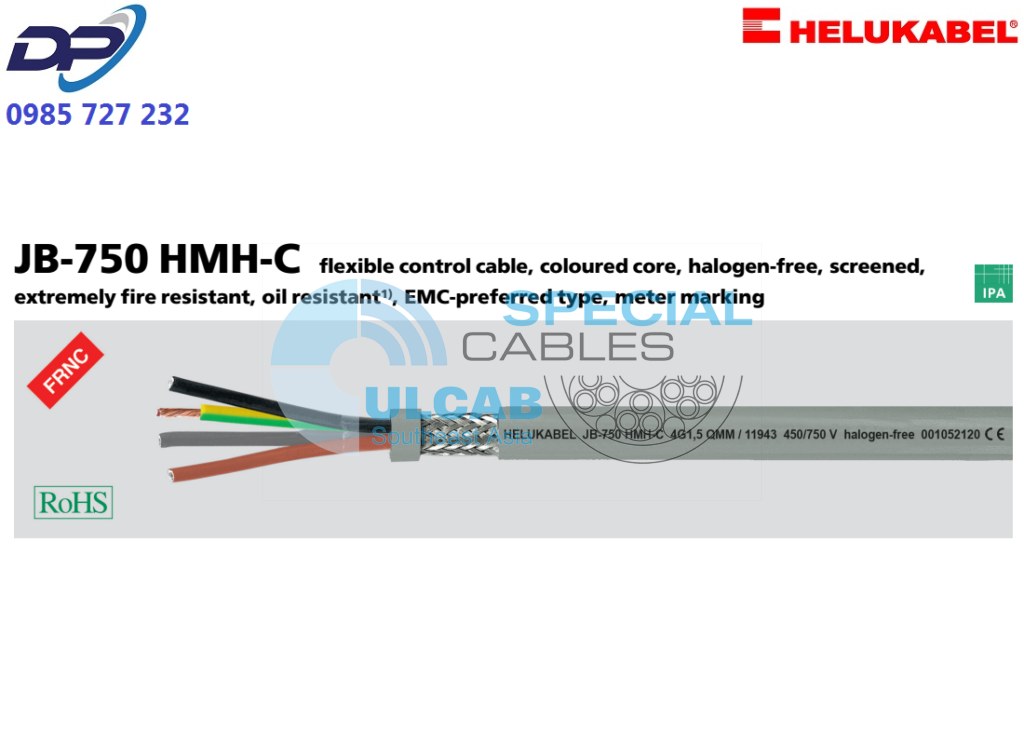

flexible control cable, coloured core, halogen-free, screened, extremely fire resistant, oil resistant1), EMC-preferred type, meter marking |
 |
- Technical data
-
- Halogen free core flexible control cable,
adapted to DIN VDE 0285-525-2-51 /
DIN EN 50525-2-51 and
DIN VDE 0285-525-3-11 /
DIN EN 50525-3-11 - Temperature range
flexing -15°C to +70°C
fixed installation -40°C to +70°C - Nominal voltage U0/U 450/750 V
- Test voltage 3000 V
- Coupling resistance
max. 250 Ohm/km - Minimum bending radius
flexing 12,5x cable Ø
fixed installation 4x cable Ø - Radiation resistance
up to 100×106 cJ/kg (up to 100 Mrad)
- Halogen free core flexible control cable,
- Cable structure
-
- Bare copper conductor, to
DIN VDE 0295 cl.5, fine wire,
BS 6360 cl.5, IEC 60228 cl.5 - Core insulation of halogen-free polymer
compound type TI6 to
DIN VDE 0207-363-7 / DIN EN 50363-7 - Core identification to DIN VDE 0293-308
- GN-YE conductor
- Cores stranded in layers with
optimal lay length - Separating foil
- Tinned copper braided screen,
approx. 85% coverage - Outer sheath of halogen-free polyner
compound type TM7 to
DIN VDE 0207-363-8 / DIN EN 50363-8 - Sheath colour: grey (RAL 7001)
- With meter marking
- LS0H= Low Smoke Zero Halogen
- Bare copper conductor, to
- Properties
-
- 1) For the critical applications we advise for
consultation - The materials used during manufacturing
are cadmium-free, contain no silicone
and are free from substances harmful
to the wetting properties of lacquers
Tests
- Flame test acc. to
DIN VDE 0482-332-3, BS 4066 part 3,
DIN EN 60332-3, IEC 60332-3 (previously
DIN VDE 0472 part 804 test method C) - Self-extinguishing and flame retardant
acc. to DIN VDE 0482-332-1-2,
DIN EN 60332-1-2 / IEC 60332-1
(equivalent DIN VDE 0472 part 804
test method B) - Corrosiveness of combustion gases
acc. to DIN VDE 0482 part 267/
DIN EN 50267-2-2/ IEC 60754-2
(equivalent DIN VDE 0472 part 813) - Halogen-free acc. to DIN VDE 0482
part 267/DIN EN 50267-2-1/ IEC 60754-1
(equivalent DIN VDE 0472 part 815) - Smoke density acc. to DIN VDE 0482
part 1034-1+2, DIN EN 61034-1+2,
IEC 61034-1+2, BS 7622 part 1+2
(previously DIN VDE 0472 part 816)
- 1) For the critical applications we advise for
- Note
-
- G = with green-yellow conductor
- Cleanroom qualification tested with analog
type. Please note “cleanroom qualified” when
ordering. - AWG sizes are approximate equivalent
values. The actual cross section is in mm². - unscreened analogue type:
JB-750 HMH
- Application
- Halogen-free, flame retardant control cables are used for instrumentation and control cables in tooling machinery, conveyor and transportation belts, production lines, in plant construction, air-conditioning systems as well as in iron and steel works. For fixed installation or for flexing applications, for casual, not constantly recurring free movement without forced motion and without tensile stress for medium mechanical loads. The cable is suitable for use in dry, damp and wet environments and for installation on plaster An interference-free transmission of signals and pulse in assured by the high degree of screening.
EMC = Electromagnetic compatibility
To optimize the EMC features we recommend a large round contact of the copper braiding on both ends.
CE = Product conforms with Low-Voltage Directive 2014/35/EU. - Downloads
- Data sheet
Certificate of compliance
|
