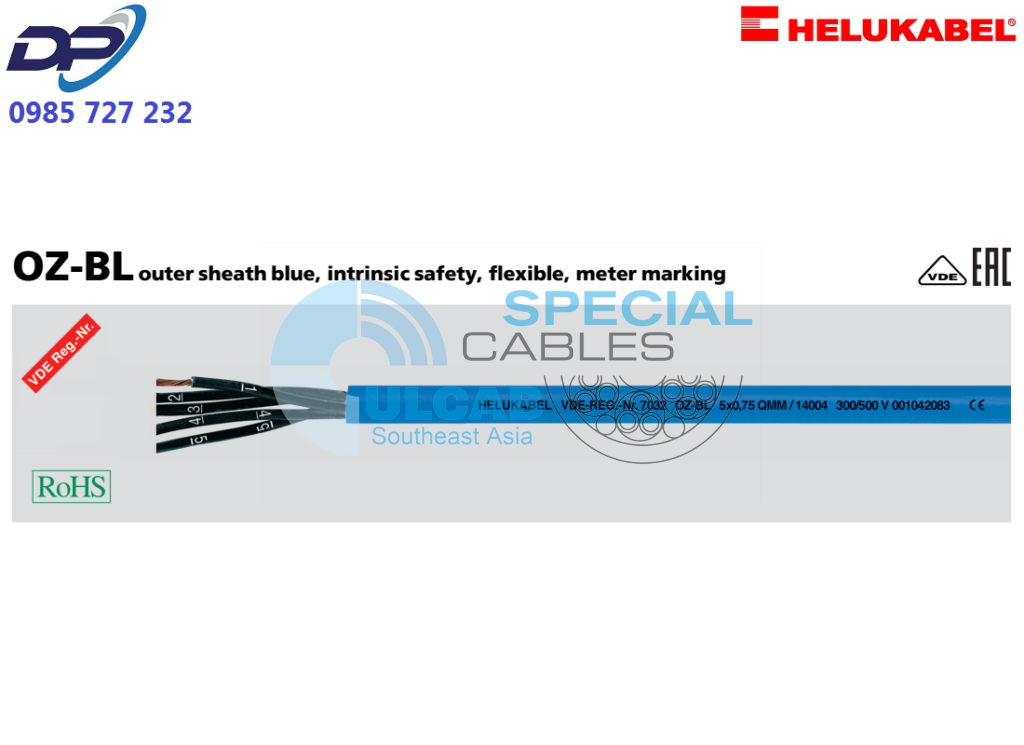

• Control cable, special PVC with blue outer
  sheath for hazardous areas to
  hazard type -i- (= intrinsically safe)
• For intrinsically safe installation acc. to
  DIN EN 60079-14 and IEC 60079-14
  section 12.2.2 (VDE 0165 part 1)
• Temperature range
  flexing -15°C to +80°C
  fixed installation -40°C to +80°C
• Nominal voltage
  U₀/U 300/500 V
• Test voltage
  3000 V
• Breakdown voltage
  min. 6000 V
• Mutual capacitance
  core/core  approx. 120 nF/km
• Inductance
  approx. 0,68 mH/km
• Minimum bending radius
  flexing 7,5x cable Ø
  fixed installation 4x cable Ø
• Radiation resistance
  up to 80×10⁶ cJ/kg (up to 80 Mrad)

• Bare copper conductor, to
  DIN VDE 0295 cl.5, fine wire,
  BS 6360 cl.5, IEC 60228 cl.5
• Core insulation of special PVC
  compound type Z 7225
• Core identification to DIN VDE 0293
  black cores with continuous white
  numbering
• without GN-YE conductor
• Cores stranded in layers with
  optimal lay length
• Outer sheath of special PVC
  compound type TM2 to
  DIN VDE 0207-363-4-1/DIN EN 50363-4-1
• Sheath colour: blue (RAL 5015)
• With meter marking

• Extensively oil resistant,
  oil-/chemical resistance
  see table Technical Informations
• The materials used during manufacturing
  are cadmium-free, contain no silicone
  and are free from substances harmful
  to the wetting properties of lacquers

Tests

• PVC self-extinguishing and flame retardant
  acc. to DIN VDE 0482-332-1-2,
  DIN EN 60332-1-2/IEC 60332-1 (equivalent
  DIN VDE 0472 part 804 test method B)

• For underground laying use NYY with blue
  outer sheath.
• AWG sizes are approximate equivalent
  values. The actual cross section is in mm².
• Instrumentation cable RE-2Y(St)Yv with blue
  outer sheath see Data and Computer Cables
