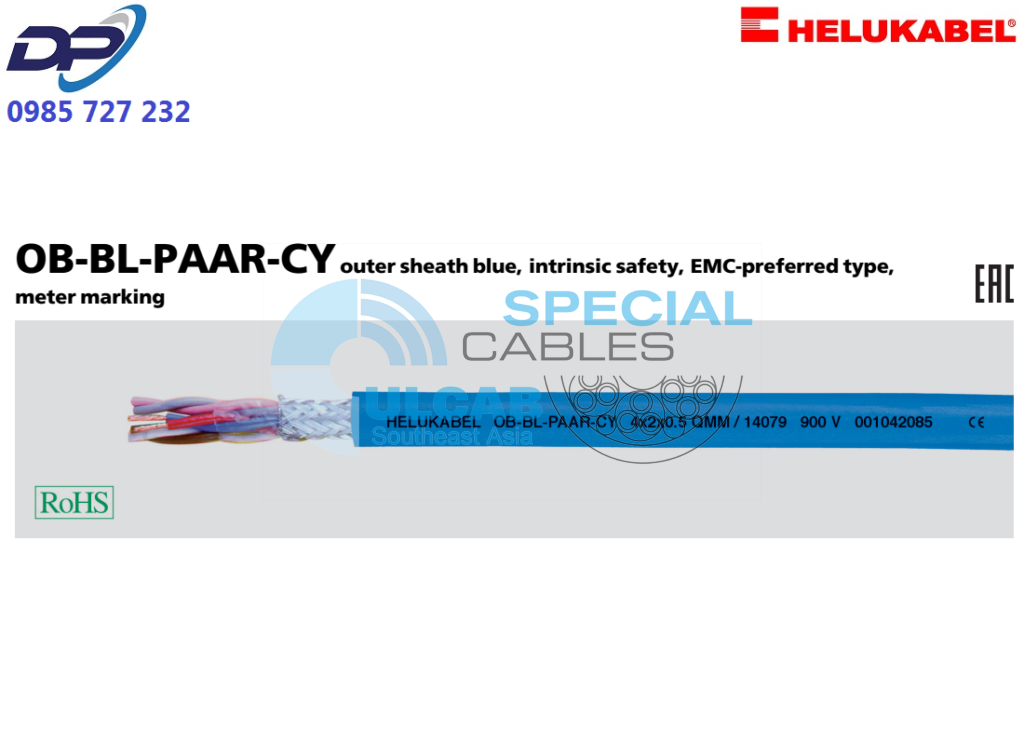

OB-BL-PAAR-CY |
outer sheath blue, intrinsic safety, EMC-preferred type, meter marking |
 |
- Technical data
-
- Special PVC control cable with blue outer
sheath for hazardous areas to hazard
type -i- for intrinsically safe installation
acc. to DIN EN 60079-14 and
IEC 60079-14 section 12.2.2.
(VDE 0165 part 1) - Conductor resistance
at 0,5 mm² 37,8 Ohm/km
at 0,75 mm² 25,3 Ohm/km - Temperature range
flexing -10°C to +80°C
fixed installation -30°C to +80°C - Operating peak voltage
(not for heavy current installation purposes)
900 V - Test voltage
core/core 2000 V
core/screen 1000 V - Breakdown voltage min. 4000 V
- Insulation resistance
min. 20 MOhm x km - Mutual capacitance
core/core approx. 105 nF/km
core/screen approx. 145 nF/km - Inductance
approx. 0,68 mH/km - Characteristic impedance
approx. 80 Ohm - Coupling resistance
max. 250 Ohm/km - Minimum bending radius
flexing 10x cable Ø
fixed installation 5x cable Ø - Radiation resistance
up to 80×106 cJ/kg (up to 80 Mrad)
- Special PVC control cable with blue outer
- Cable structure
-
- Bare copper conductor, to
DIN VDE 0295 cl.5, fine wire,
BS 6360 cl.5, IEC 60228 cl.5 - Core insulation special PVC
compound type TI2 to
DIN VDE 0207-363-3 / DIN EN 50363-3 - Core identification (pair) to DIN 47100
- Cores twisted in pairs
- Pairs stranded in layers with optimal
lay length - Separating foil
- Tinned copper braided screen,
approx. 85% coverage - Outer sheath of special PVC
compound type TM2 to
DIN VDE 0207-363-4-1/DIN EN 50363-4-1 - Sheath colour: blue (RAL 5015)
- With meter marking
- Bare copper conductor, to
- Properties
-
- Extensively oil resistant,
oil-/chemical resistance
see table Technical Informations - The materials used during manufacturing
are cadmium-free, contain no silicone
and are free from substances harmful
to the wetting properties of lacquers
Tests
- PVC self-extinguishing and flame retardant
acc. to DIN VDE 0482-332-1-2,
DIN EN 60332-1-2, IEC 60332-1 (equivalent
DIN VDE 0472 part 804 test method B)
- Extensively oil resistant,
- Note
-
- AWG sizes are approximate equivalent
values. The actual cross section is in mm². - Instrumentation cable RE-2Y(St)Yv with blue
outer sheath see Data and Computer Cables
- AWG sizes are approximate equivalent
- Application
- For hazardous areas this flexible control cable has been constructed for closed circuit systems in accordance with VDE 0165 part 1, part 12. 2. 2. 6, which covers the requirements for the special marking (blue) of this type (hazard type -i-). The paired construction and the copper screening afford a good protection against electrical interference and ensure the transmission of data signals.
EMC = Electromagnetic compatibility
To optimize the EMC features we recommend a large round contact of the copper braiding on both ends.
CE = Product conforms with Low-Voltage Directive 2014/35/EU. - Downloads
- Data sheet
Certificate of compliance
|
