SHIELDED TWISTED MULTIPAIR CONTROL/AUDIO CABLE
Description
Alantek Shielded Twisted Multipair Control Cable consists of Stranded
Tinned Copper Conductor with colour coded HDPE Insulation, overall
cover with Aluminum Mylar Tape with minimum 25% overlap, Tinned
Copper Drain Wire and Outer PVC Jacket.
Application
Multipair Audio, Control and Instrumentation Cable for Industrial, Data,
Interconnect and Analogue Audio used.
Characteristics
Rated temperature 80°C
• Good mechanical and temperature performance
• Insulation Resistance: 10 MΩ-km (min) @ 20°C DC 500V (EIA-364-21)
• Dielectric Strength: AC 500V/1 minute no breakdown (EIA-364-20)
• Flexibility Test: No Cracking
• Flame Test: Pass Horizontal Flame
Colour Code
• For 1 Pair Cable : Black & Clear
• For > 1 Pair, per below table
| Pair | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 |
| Colour | Black/Red | Black/ White |
Black/ Green |
Black/ Blue |
Black/ Yellow |
Black/ Brown |
Black/ Orange |
Red/ White |
Red/ Green |
Red/Blue |

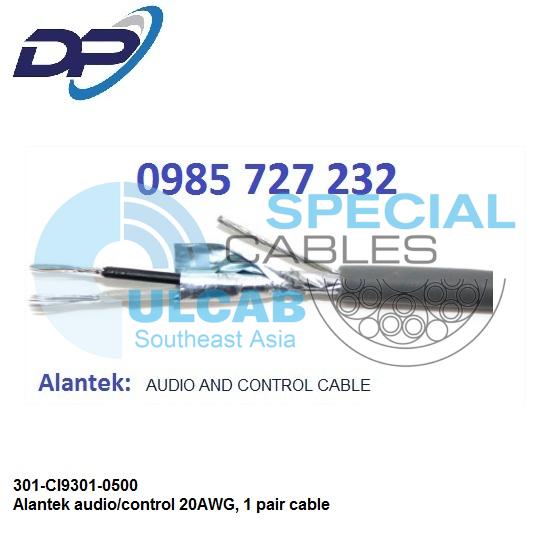

| No. of Pair | Stranded Conductor | Drain Wire | Jacket | Conductor Resistance @ 20°C (max) |
|||
| AWG | No./AWG | AWG | No./AWG | Nom. Thickness | O.D. | ||
| Material | Stranded annealed Copper | Stranded annealed Copper | PVC | ||||
| 1 | 16 | 19/29 | 18 | 16/30 | 0.81 mm | 7.9 mm | 14.8 Ω/km |
| 18 | 16/30 | 20 | 7/28 | 0.71 mm | 5.6 mm | 21.7 Ω/km | |
| 20 | 7/28 | 20 | 7/28 | 0.71 mm | 5.1 mm | 34.6 Ω/km | |
| 22 | 7/30 | 22 | 7/30 | 0.64 mm | 4.3 mm | 55.0 Ω/km | |
| 2 | 16 | 19/29 | 18 | 16/30 | 0.81 mm | 10.5 mm | 14.8 Ω/km |
| 18 | 16/30 | 20 | 7/28 | 0.75 mm | 7.5 mm | 21.8 Ω/km | |
| 20 | 7/28 | 20 | 7/28 | 0.71 mm | 6.6 mm | 34.6 Ω/km | |
| 22 | 7/30 | 22 | 7/30 | 0.70 mm | 6.0 mm | 55.0 Ω/km | |
| 4 | 16 | 19/29 | 18 | 16/30 | 0.81 mm | 14.0 mm | 14.8 Ω/km |
| 18 | 16/30 | 20 | 7/28 | 0.75 mm | 10.0 mm | 21.8 Ω/km | |
| 20 | 7/28 | 20 | 7/28 | 0.75 mm | 8.4 mm | 34.6 Ω/km | |
| 22 | 7/30 | 22 | 7/30 | 0.70 mm | 7.5 mm | 55.0 Ω/km | |
| STT | Part # | Description | ĐVT |
| 1 | 301-CI9601-0000 | Alantek audio/control 14AWG, 1 pair cable | rl (500m) |
| 2 | 301-CI9602-0000 | Alantek audio/control 14AWG, 2 pair cable | rl (500m) |
| 3 | 301-CI9501-0000 | Alantek audio/control 16AWG, 1 pair cable | rl (500m) |
| 4 | 301-CI9502-0000 | Alantek audio/control 16AWG, 2 pair cable | rl (500m) |
| 5 | 301-CI9504-0000 | Alantek audio/control 16AWG, 4 pair cable | rl (500m) |
| 6 | 301-CI9510-0000 | Alantek audio/control 16AWG, 10 pair cable | rl (500m) |
| 7 | 301-CI9401-0000 | Alantek audio/control 18AWG, 1 pair cable | rl (500m) |
| 8 | 301-CI9402-0000 | Alantek audio/control 18AWG, 2 pair cable | rl (500m) |
| 9 | 301-CI9403-0000 | Alantek audio/control 18AWG, 3 pair cable | rl (500m) |
| 10 | 301-CI9404-0000 | Alantek audio/control 18AWG, 4pair cable | rl (500m) |
| 11 | 301-CI9201-0000 | Alantek audio/control 22AWG, 1 pair cable | rl (500m) |
| 12 | 301-CI9202-0000 | Alantek audio/control 22AWG, 2 pair cable | rl (500m) |
| 13 | 301-CI9203-0000 | Alantek audio/control 22AWG, 3 pair cable | rl (500m) |
| 14 | 301-CI9204-0000 | Alantek audio/control 22AWG, 4 pair cable | rl (500m) |
| 15 | 301-CI9301-0000 | Alantek audio/control 20AWG, 1 pair cable | rl (500m) |
| 16 | 301-CI9302-0000 | Alantek audio/control 20AWG, 2 pair cable | rl (500m) |
| 17 | 301-CI9303-0000 | Alantek audio/control 20AWG, 3 pair cable | rl (500m) |
| 18 | 301-CI9304-0000 | Alantek audio/control 20AWG, 4 pair cable | rl (500m) |
| 19 | 301-CI9601-0500 | Alantek audio/control 14AWG, 1 pair cable | rl (500m) |
| 20 | 301-CI9501-0500 | Alantek audio/control 16AWG, 1 pair cable | rl (500m) |
| 21 | 301-CI9401-0500 | Alantek audio/control 18AWG, 1 pair cable | rl (500m) |
| 22 | 301-CI9301-0500 | Alantek audio/control 20AWG, 1 pair cable | rl (500m) |
| 23 | 301-CI9201-0500 | Alantek audio/control 22AWG, 1 pair cable | rl (500m) |
| 24 | 301-CI9602-0500 | Alantek audio/control 14AWG, 2 pair cable | rl (500m) |
| 25 | 301-CI9502-0500 | Alantek audio/control 16AWG, 2 pair cable | rl (500m) |
| 26 | 301-CI9402-0500 | Alantek audio/control 18AWG, 2 pair cable | rl (500m) |
| 27 | 301-CI9302-0500 | Alantek audio/control 20AWG, 2 pair cable | rl (500m) |
| 28 | 301-CI9202-0500 | Alantek audio/control 22AWG, 2 pair cable | rl (500m) |
| 29 | 301-CI9504-0500 | Alantek audio/control 16AWG, 4 pair cable | rl (500m) |
| 30 | 301-CI9404-0500 | Alantek audio/control 18AWG, 4 pair cable | rl (500m) |
| 31 | 301-CI9304-0500 | Alantek audio/control 20AWG, 4 pair cable | rl (500m) |
| 32 | 301-CI9204-0500 | Alantek audio/control 22AWG, 4 pair cable | rl (500m) |
