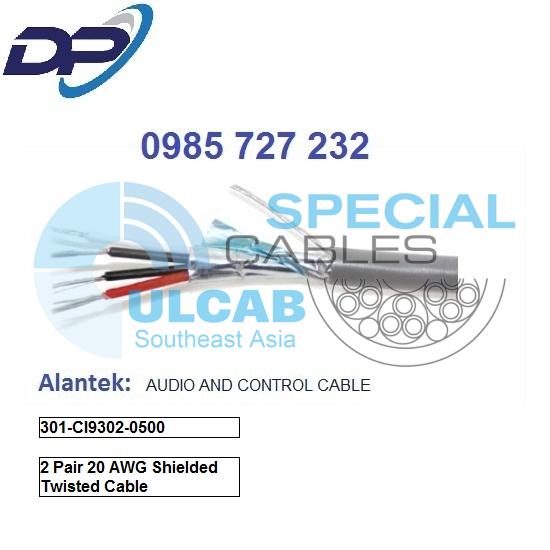

Cáp Điều Khiển ALANTEK ( 301-CI9302-0500 ) Audio/Control 20AWG, 2 pair cable, Shielded Twisted

Download : 301-CI9302-0500

SHIELDED TWISTED MULTIPAIR CONTROL/AUDIO CABLE

Description
Alantek Shielded Twisted Multipair Control Cable consists of Stranded
Tinned Copper Conductor with colour coded HDPE Insulation, overall
cover with Aluminum Mylar Tape with minimum 25% overlap, Tinned
Copper Drain Wire and Outer PVC Jacket.
Application
Multipair Audio, Control and Instrumentation Cable for Industrial, Data,
Interconnect and Analogue Audio used.
Characteristics
Rated temperature 80°C
• Good mechanical and temperature performance
• Insulation Resistance: 10 MΩ-km (min) @ 20°C DC 500V (EIA-364-21)
• Dielectric Strength: AC 500V/1 minute no breakdown (EIA-364-20)
• Flexibility Test: No Cracking
• Flame Test: Pass Horizontal Flame
Colour Code
• For 1 Pair Cable : Black & Clear
• For > 1 Pair, per below table

Pair 1 2 3 4 5 6 7 8 9 10
Colour Black/Red Black/
White
Black/
Green
Black/
Blue
Black/
Yellow
Black/
Brown
Black/
Orange
Red/
White
Red/
Green
Red/Blue
No. of Pair Stranded Conductor Drain Wire Jacket Conductor Resistance
@ 20°C (max)
AWG No./AWG AWG No./AWG Nom. Thickness O.D.
Material Stranded annealed Copper Stranded annealed Copper PVC
1 16 19/29 18 16/30 0.81 mm 7.9 mm 14.8 Ω/km
18 16/30 20 7/28 0.71 mm 5.6 mm 21.7 Ω/km
20 7/28 20 7/28 0.71 mm 5.1 mm 34.6 Ω/km
22 7/30 22 7/30 0.64 mm 4.3 mm 55.0 Ω/km
2 16 19/29 18 16/30 0.81 mm 10.5 mm 14.8 Ω/km
18 16/30 20 7/28 0.75 mm 7.5 mm 21.8 Ω/km
20 7/28 20 7/28 0.71 mm 6.6 mm 34.6 Ω/km
22 7/30 22 7/30 0.70 mm 6.0 mm 55.0 Ω/km
4 16 19/29 18 16/30 0.81 mm 14.0 mm 14.8 Ω/km
18 16/30 20 7/28 0.75 mm 10.0 mm 21.8 Ω/km
20 7/28 20 7/28 0.75 mm 8.4 mm 34.6 Ω/km
22 7/30 22 7/30 0.70 mm 7.5 mm 55.0 Ω/km
STT Part # Description ĐVT
1 301-CI9601-0000 Alantek audio/control 14AWG, 1 pair cable rl (500m)
2 301-CI9602-0000 Alantek audio/control 14AWG, 2 pair cable rl (500m)
3 301-CI9501-0000 Alantek audio/control 16AWG, 1 pair cable rl (500m)
4 301-CI9502-0000 Alantek audio/control 16AWG, 2 pair cable rl (500m)
5 301-CI9504-0000 Alantek audio/control 16AWG, 4 pair cable rl (500m)
6 301-CI9510-0000 Alantek audio/control 16AWG, 10 pair cable rl (500m)
7 301-CI9401-0000 Alantek audio/control 18AWG, 1 pair cable rl (500m)
8 301-CI9402-0000 Alantek audio/control 18AWG, 2 pair cable rl (500m)
9 301-CI9403-0000 Alantek audio/control 18AWG, 3 pair cable rl (500m)
10 301-CI9404-0000 Alantek audio/control 18AWG, 4pair cable rl (500m)
11 301-CI9201-0000 Alantek audio/control 22AWG, 1 pair cable rl (500m)
12 301-CI9202-0000 Alantek audio/control 22AWG, 2 pair cable rl (500m)
13 301-CI9203-0000 Alantek audio/control 22AWG, 3 pair cable rl (500m)
14 301-CI9204-0000 Alantek audio/control 22AWG, 4 pair cable rl (500m)
15 301-CI9301-0000 Alantek audio/control 20AWG, 1 pair cable rl (500m)
16 301-CI9302-0000 Alantek audio/control 20AWG, 2 pair cable rl (500m)
17 301-CI9303-0000 Alantek audio/control 20AWG, 3 pair cable rl (500m)
18 301-CI9304-0000 Alantek audio/control 20AWG, 4 pair cable rl (500m)
19 301-CI9601-0500 Alantek audio/control 14AWG, 1 pair cable rl (500m)
20 301-CI9501-0500 Alantek audio/control 16AWG, 1 pair cable rl (500m)
21 301-CI9401-0500 Alantek audio/control 18AWG, 1 pair cable rl (500m)
22 301-CI9301-0500 Alantek audio/control 20AWG, 1 pair cable rl (500m)
23 301-CI9201-0500 Alantek audio/control 22AWG, 1 pair cable rl (500m)
24 301-CI9602-0500 Alantek audio/control 14AWG, 2 pair cable rl (500m)
25 301-CI9502-0500 Alantek audio/control 16AWG, 2 pair cable rl (500m)
26 301-CI9402-0500 Alantek audio/control 18AWG, 2 pair cable rl (500m)
27 301-CI9302-0500 Alantek audio/control 20AWG, 2 pair cable rl (500m)
28 301-CI9202-0500 Alantek audio/control 22AWG, 2 pair cable rl (500m)
29 301-CI9504-0500 Alantek audio/control 16AWG, 4 pair cable rl (500m)
30 301-CI9404-0500 Alantek audio/control 18AWG, 4 pair cable rl (500m)
31 301-CI9304-0500 Alantek audio/control 20AWG, 4 pair cable rl (500m)
32 301-CI9204-0500 Alantek audio/control 22AWG, 4 pair cable rl (500m)
