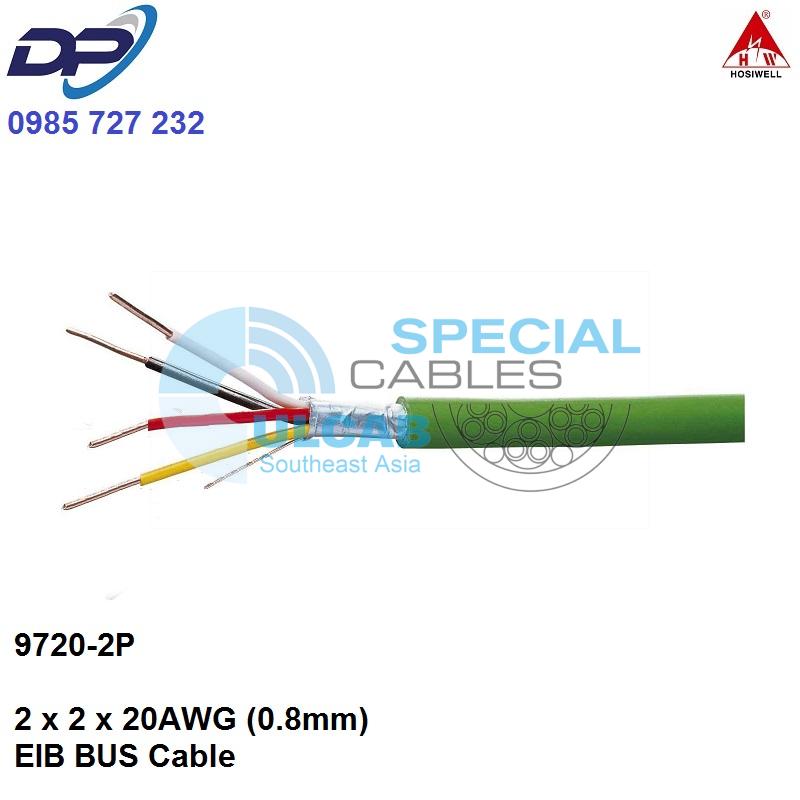

Cáp Điều Khiển Hosiwell ( 9720-2P ) 2x2x20AWG (0.8mm) | EIB BUS Cable | Chính Hãng – Chống Nhiễu – Giá Tốt Nhất
CABLE CONSTRUCTION
P/N: 9720-2P
Conductor: Solid Bare Copper Wire
Insulation: PVC
Insulation Color: Black, Red, White, Yellow
Shielding ( Coverage 100%): Aluminum Foil-Polyester Tape
Drain Wire: Tinned Copper Wire
Outer Jacket, Colour : PVC, Green
– No of Pair: 2
– Drain Wire Size: 24 AWG
– No of Conductor: 4
– Min Jacket Thickness: 1.00 mm
– Conductor Size: 20 AWG, (0.8 mm)
– Jacket Diameter: 6.30 mm
– Insulation Thickness: 0.18 mm
– Min. Bending Radius Minor Axis: 63 mm
– Insulation Diameter: 1.45 mm
– Operation Temperature: -20°C to 75°C
Compliance :
-UL Standard 2092
-NEC Article 725, type CM 800
-UL 1685 Vertical Tray
-UL Approvals
-RosH
