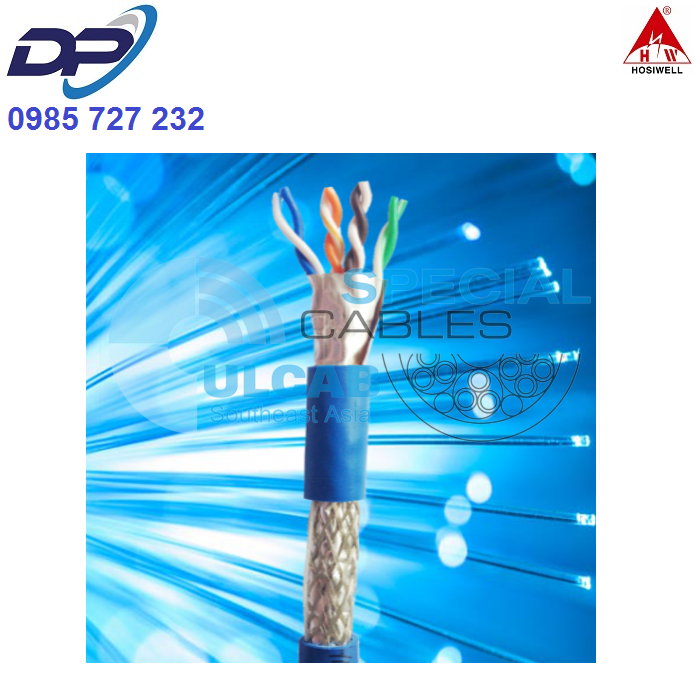

Hosiwell Cat.5e SFTP Horizontal Cable

CABLE CONSTRUCTION

P/N: 30015-CC

Conductor: 24 AWG Solid Bare Copper Wire

Insulation: High Density Polyethylene (HDPE)

Outer Jacket, Colour : Flame retardant PVC jacket, Blue

– Conductor Diameter (Nominal):   0.50 ± 0.02 mm

– Conductor Unit Lay-Up: Pairs

– Insulation Thickness: 0.31 mm

– Outer Jacket thickness: 0.60 mm

– Insulation Over Diameter: 1.12 mm ± 0.02 mm

– Norm. Diameter: 6.30 mm ± 0.02 mm

– Conductor Unit Identification: Solid/Stripe

– Shield 1, cover 100%: Aluminum/Polyster foil

– Colour Code: Per TIA/EIA 568-B

– Shield 2, cover 40%: Tinned Copper Wire Braid

– Total Number of Wires: 8

Compliance :

– IEEE 802.af, IEEE 802.3at PoE applications.

– ANSI/TIA-568-B.2 Cat.5e Standard.

– UL type CMR ( 135928)

– CSA type CMG FT4 (LL80602)

– ETL Certificate.

– Verified to Cat.5 ISO/IEC 11801
