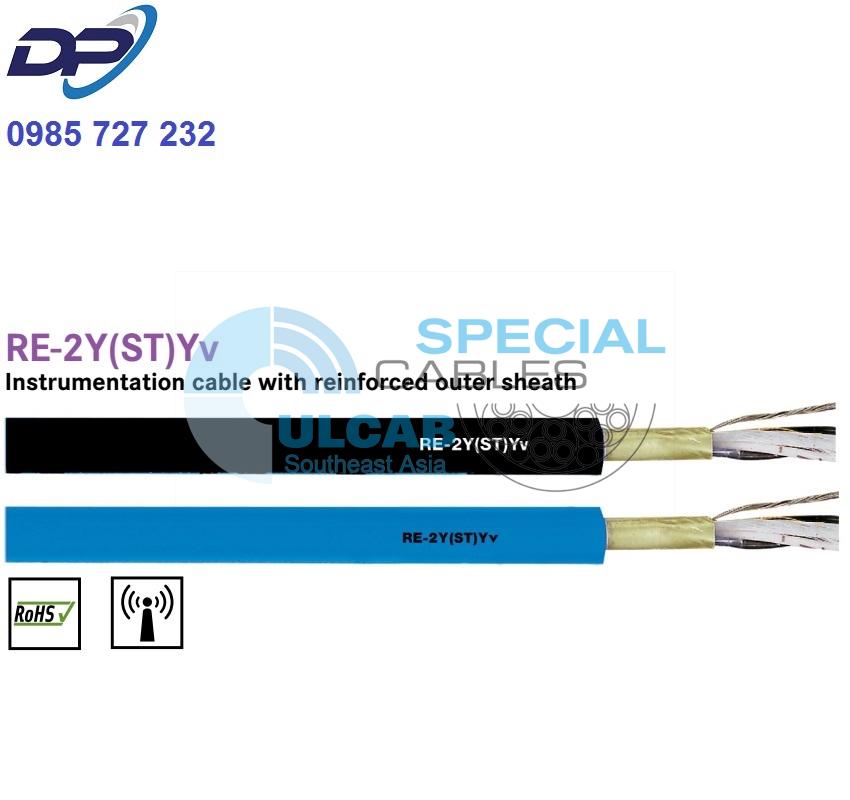

UNITRONIC® RE-2Y(ST)Yv
Instrumentation cable with reinforced outer sheath
RE-2Y(ST)Yv: PVC computer data cables, 7-wire Cu conductor, Low capacitance, Paired stranding, Screened/ Static Foil, PVC jacket, Black or blue, Flame retardant
Benefits
- Aluminium-laminated plastic foil static screen with tin-plated drain wire minimises the interference of high frequency, electromagnetic fields
- Decoupling of circuits by means of
twisted-pair (TP) design (crosstalk effects) - Low capacitance due to polyolefin-based insulation
Application range
- In measurement and control engineering
- Electrically intended for use when modern process computers have to process large volumes of data, e.g. high-capacity computer systems in waste incineration plants or sewage treatment plants
- These cables are suitable for fixed installation in dry or damp rooms and, in case of versions with a black outer sheath, also for outdoor use
- Thanks to reinforced, nominal/ minimum average wall thickness of the outer sheath of at least 1.8 mm, for applications, where a reinforced outer sheath may turn out to be advantageous.
Product features
- Outer sheath colour:
black for outdoor applications or
blue for intrinsically safe systems - Flame-retardant according IEC 60332-1-2
Norm references / Approvals
- In the style of EN 50288-7
Product Make-up
- 7-wire bare stranded copper conductor,
core insulation made of polyethylene (PE),
cores twisted into pairs,
pairs stranded in layers - Complete stranding contains 1 core for communication (core colour orange);
the communication core is omitted on single-pair versions - Foil wrapping,
static screening made of aluminium-laminated plastic film with tinned drain wire - Reinforced outer sheath made of PVC
- Outer sheath colour: black (RAL 9005)
or blue (RAL 5015)
Classification
- ETIM 5.0 Class-ID: EC000104
- ETIM 5.0 Class-Description: Data cable
Core identification code
- a-core: black; b-core: white
with consecutive numbers:
1-1, 2-2, 3-3, 4-4 etc. - Three-way version: black, white, red
Mutual capacitance
- (guideline values at 800 Hz):
C/C: 0.5 mm²: max. 75 nF/km - (guideline values at 800 Hz):
C/C: 1.3 mm²: max. 100 nF/km
Peak operating voltage
- (not for power applications)
300 V
Conductor resistance
- 0.5 mm²: max. 39.2 ohm/km
- 1.3 mm²: max. 14.3 ohm/km
Minimum bending radius
- Occasional flexing: 15 x outer diameter
- Fixed installation: 7.5 x outer diameter
Short-range crosstalk attenuation
- At 60 kHz: min. 0.88 dB/km
Test voltage
- Core/core: 2000 V
- Core/screen: 1000 V
Characteristic impedance
- approx. 100 ohms
Temperature range
- Occasional flexing: -5°C to +50°C
- Fixed installation: -40°C to +80°C
| Article number | Number of pairs and mm² per conductor | Outer diameter (mm) | Copper index (kg/km) | Weight (kg/km) |
| RE-2Y(ST)Yv 0.5 mm² blue |
||||
| 0032400 | 1 x 2 x 0.5 | 7,2 | 15 | 74 |
| 0032401 | 2 x 2 x 0.5 | 9,5 | 30 | 117 |
| 0032402 | 4 x 2 x 0.5 | 11,1 | 50 | 140 |
| 0032403 | 8 x 2 x 0.5 | 13,4 | 90 | 180 |
| 0032405 | 12 x 2 x 0.5 | 15,5 | 130 | 280 |
| 0032407 | 20 x 2 x 0.5 | 17,9 | 210 | 385 |
| 0.5 mm² black | ||||
| 0032411 | 1 x 2 x 0.5 | 7,2 | 15 | 74 |
| 0032412 | 2 x 2 x 0.5 | 9,5 | 30 | 117 |
| 0032413 | 4 x 2 x 0.5 | 11,1 | 50 | 140 |
| 0032414 | 8 x 2 x 0.5 | 13,4 | 90 | 180 |
| 0032415 | 10 x 2 x 0.5 | 14,5 | 110 | 220 |
| 0032417 | 16 x 2 x 0.5 | 17 | 170 | 352 |
| 0032418 | 20 x 2 x 0.5 | 17,9 | 210 | 385 |
| 0032420 | 36 x 2 x 0.5 | 22,6 | 370 | 656 |
| 0032421 | 48 x 2 x 0.5 | 27,1 | 490 | 854 |
| 1.3 mm² blue | ||||
| 0032422 | 1 x 2 x 1.3 | 8,6 | 31 | 102 |
| 0032423 | 2 x 2 x 1.3 | 11,5 | 62 | 161 |
| 0032424 | 4 x 2 x 1.3 | 13,8 | 114 | 230 |
| 0032425 | 8 x 2 x 1.3 | 16,9 | 218 | 377 |
| 0032426 | 12 x 2 x 1.3 | 19,3 | 322 | 520 |
| 0032427 | 16 x 2 x 1.3 | 22,8 | 426 | 656 |
| 0032428 | 24 x 2 x 1.3 | 27,5 | 684 | 952 |
| 0032429 | 1 x 3 x 1.3 | 9,1 | 44 | 116 |
| 1.3 mm² black | ||||
| 0032430 | 1 x 2 x 1.3 | 8,6 | 31 | 102 |
| 0032431 | 2 x 2 x 1.3 | 11,5 | 62 | 161 |
| 0032432 | 4 x 2 x 1.3 | 13,8 | 114 | 230 |
| 0032433 | 8 x 2 x 1.3 | 16,9 | 218 | 377 |
| 0032434 | 12 x 2 x 1.3 | 19,3 | 322 | 520 |
| 0032435 | 16 x 2 x 1.3 | 22,8 | 426 | 656 |
| 0032436 | 24 x 2 x 1.3 | 27,5 | 684 | 952 |
