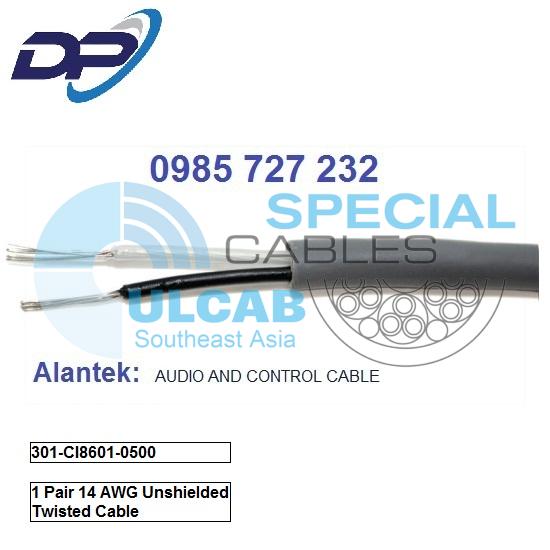

Cáp Điều Khiển ALANTEK ( 301-CI8601-0500 ) Audio/Control 14AWG, 1 pair cable, Unshielded Twisted

Download : 301-CI8601-0500

UNSHIELDED TWISTED MULTIPAIR CONTROL/AUDIO CABLE

Description
Alantek Unshielded Twisted Pair Audio Cable consists of Stranded
Tinned Copper Conductors with colour coded PVC Insulation and Outer
PVC Jacket.
Application
Multipair Audio and Control Cable for Industrial, Data, Interconnect and Analogue Audio used.
Characteristics
• Nom. Inductance 0.19µH/ft
• Nom. Capacitance Conductor to Conductor @1KHz 33pF/ft
• Max. Operating Voltage 300V RMS
• Rated temperature 80°C
Colour Code
• For 1 Pair Cable : Black & Clear
• For > 1 Pair, per below table

Pair 1 2 3 4 5 6 7 8 9 10
Colour Black/Red Black/
White
Black/
Green
Black/
Blue
Black/
Yellow
Black/
Brown
Black/
Orange
Red/
White
Red/
Green
Red/Blue
No. of Pair Conductor
Stranded annealed Copper
Insulation
PVC
Jacket
PVC
Nom. Conductor DC
Resistance
@ 20°C
Max. Recommended
Current/conductor
@ 20°C
AWG Stranding Nom.
Thickness
Outer
Diameter
1 12 65/30 0.81 mm 9.8 mm 1.8 f/1000ft 13 Amps
14 42/30 0.81 mm 8.6 mm 2.86 f/1000ft 9.6 Amps
16 19/29 0.58 mm 6.27 mm 4.49 f/1000ft 7.1 Amps
18 Thg7-26 0.55 mm 5.94 mm 5.86 f/1000ft 4.8 Amps

STT

Part number

Mô Tả

1

301-CI8701-0000

1 pair 12 AWG Unshielded Twisted Pair Audio Cable

2

301-CI8601-0000

1 pair 14 AWG Unshielded Twisted Pair Audio Cable

3

301-CI8501-0000

1 pair 16 AWG Unshielded Twisted Pair Audio Cable

4

301-CI8401-0000

1 pair 18 AWG Unshielded Twisted Pair Audio Cable

5

301-CI8701-0500

1 pair 12 AWG Unshielded Twisted Pair Audio Cable

6

301-CI8601-0500

1 pair 14 AWG Unshielded Twisted Pair Audio Cable

7

301-CI8501-0500

1 pair 16 AWG Unshielded Twisted Pair Audio Cable

8

301-CI8401-0500

1 pair 18 AWG Unshielded Twisted Pair Audio Cable
