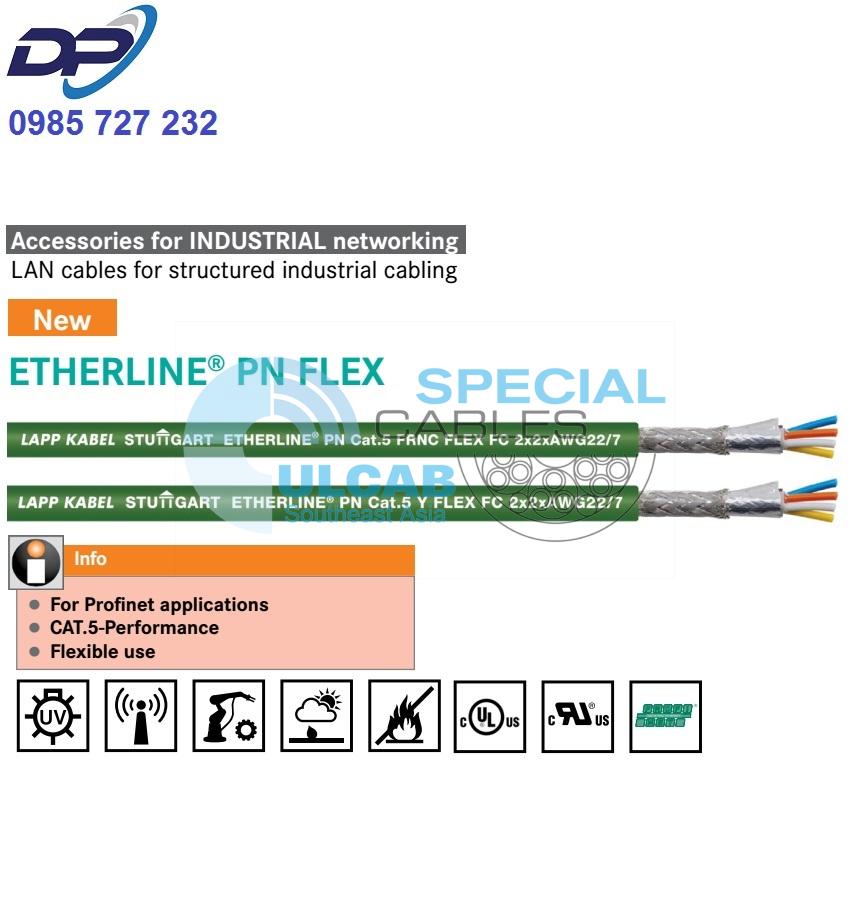

ETHERLINE® PN Flex
Flexible use
Industrial Ethernet cable Cat.5 for flexible use, for PROFINET applications type B; design 2x2xAWG22/7, PVC or FRNC sheath material; UL approval
- For Profinet applications
- CAT.5-Performance
- Flexible use
Benefits
- For PROFINET applications type B
- Can be used in dry or damp rooms
- Screened against interference
- Can be used for Industrial Ethernet in harsh industrial environments
- 2pair: 10/100 Mbit/s for Industrial Ethernet
Application range
- for industrial secondary and tertiary cabling according to EN 50173-3 ISO/IEC 24702
- Wiring of machines, tools, devices, appliances and control cabinets
- max. cable lenght für 100 Mbit/s is 85 m
- suitable for EtherCAT and EtherNet/IP applications
- For flexible applications (7-wire stranded conductor)
Product features
- Flame-retardant according to CSA FT4
UL Vertical-Tray Flame Test - CAT.5-Performance
- FRNC version: Halogen-free and flame-retardant
- Fast Connect (FC) cable design
Norm references / Approvals
- The cable is UL/CSA-certified (CMG)
- ETHERLINE® PN Cat.5 Y FLEX FC: ECOLAB®
Industry standard for innovations and efficiency in the field of professional cleaning and disinfection
Product Make-up
- Stranded 7-wire bare conductor
- Core insulation: PE or PP
- Star quad
- Inner sheath made of PVC or FRNC
- Overall screening with copper braid and plastic-laminated aluminium foil
- PVC or FRNC jacket material
- Colour: green (based on RAL 6018)
Classification
- ETIM 5.0 Class-ID: EC000830
- ETIM 5.0 Class-Description: Data cable
Peak operating voltage
- (not for power applications) 125 V
Minimum bending radius
- FRNC cable:
Flexing: 8 x outer diameter
Fixed installation: 4 x outer diameter - PVC cable:
Flexing: 7 x outer diameter
Fixed installation: 3 x outer diameter
Test voltage
- Core/core: 2000 V
- Core/screen: 2000 V
Characteristic impedance
- 100 Ω ± 15%
Temperature range
- Cable with FRNC sheath
Fixed installation: -25°C to +80°C
Flexing: -25°C to +80°C
Cable with PVC sheath
Fixed installation: -40°C to +80°C
Flexing: -20°C to +60°C
| Article number | Article designation | Number of pairs and AWG per conductor | Outer diameter (mm) |
Copper index (kg/km) | Weight (kg/km) |
| PVC sheath | |||||
| 2170886 | ETHERLINE® PN Cat.5 Y FLEX FC | 2 x 2 x AWG22/7 | 6.5 | 31.3 | 67 |
| FRNC outer sheath | |||||
| 2170890 | ETHERLINE® PN Cat.5 FRNC FLEX FC | 2 x 2 x AWG22/7 | 6,5 | 31,2 | 65 |
■ Accessories
▯ Connector RJ45 Cat.5e for Profnet
▯ Easy Connect RJ45 Modul Cat.6A 10G
▯ BUS M12 connectors that can be assembled
▯ FC STRIP stripping tool
