Cáp Điều Khiển ALANTEK ( 301-CI9501-00LS ) Alantek Control shield cable 16 AWG- 1-pair LSZH

Download : 301-CI9501-00LS

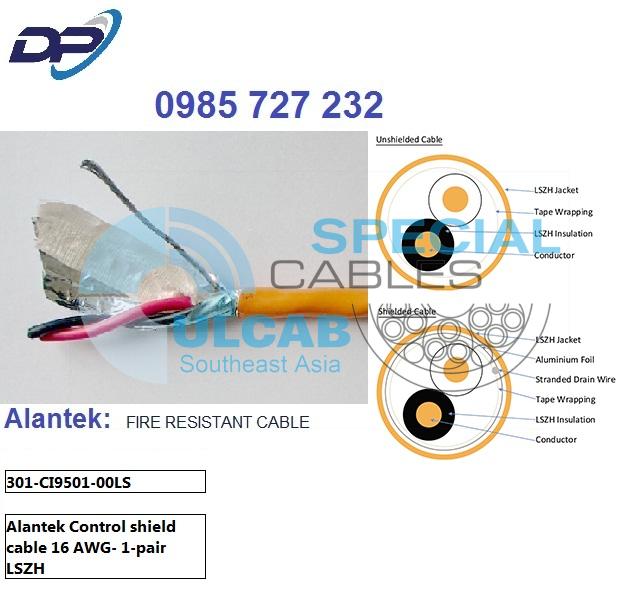

SHIELDED/UNSHIELDED FIRE RETARDANT CONTROL CABLE

Description
Alantek Fire Retardant Control Cable consists of Bare Copper Conductor
with LSZH Insulation, Aluminium Foil and Outer LSZH Jacket
Application
Multipair Control Cable for industrial, alarm, PA and critical system.
Tested in accordance to IEC 60332-1
Colour Code
1 pair : Black, White
> 1 pair : Black, White with numberings



Cable Counts Conductor
Stranded Copper
Insulation
LSZH
Mica Tape Shield Drain Wire Jacket
LSZH
(Orange colour)
mm2 No./mm
±0.024mm
OD (mm)
±0.3
All Foil No./mm OD (mm) ±0.1
Unshielded, 1pair 1.5 7/0.5 3.1 100% N/A N/A 8.0
Unshielded, 1pair 2.5 14/0.5 3.64 100% N/A N/A 8.8
Shielded, 1pair 1.5 7/0.5 3.1 100% 100% 19/0.287 8.5
Shielded, 1pair 2.5 14/0.45 3.64 100% 100% 19/0.36 9.6
SHIELDED/UNSHIELDED FIRE RETARDANT CONTROL CABLE
STT Part number Mô Tả
1 301-CI9501-00LS Alantek Control shield cable 16 AWG- 1-pair LSZH | rl/500M
2 301-CI9401-00LS Alantek Control shield cable 18 AWG- 1-pair LSZH | rl/500M
3 301-FRS015-201P-3M05 Alantek 1Pair 2×1.5mm2 Fire Resistant Shielded Cable Orange | rl/500M
4 301-FRS025-201P-3M05 Alantek 1Pair 2×2.5mm2 Fire Resistant Shielded Cable Orange | rl/500M
5 301-FRU015-201P-3M05 Alantek 1Pair 2×1.5mm2 Fire Resistant Un-Shielded Cable Orange | rl/500M
6 301-FRU025-201P-3M05 Alantek 1Pair 2×2.5mm2 Fire Resistant Un-Shielded Cable Orange | rl/500M
