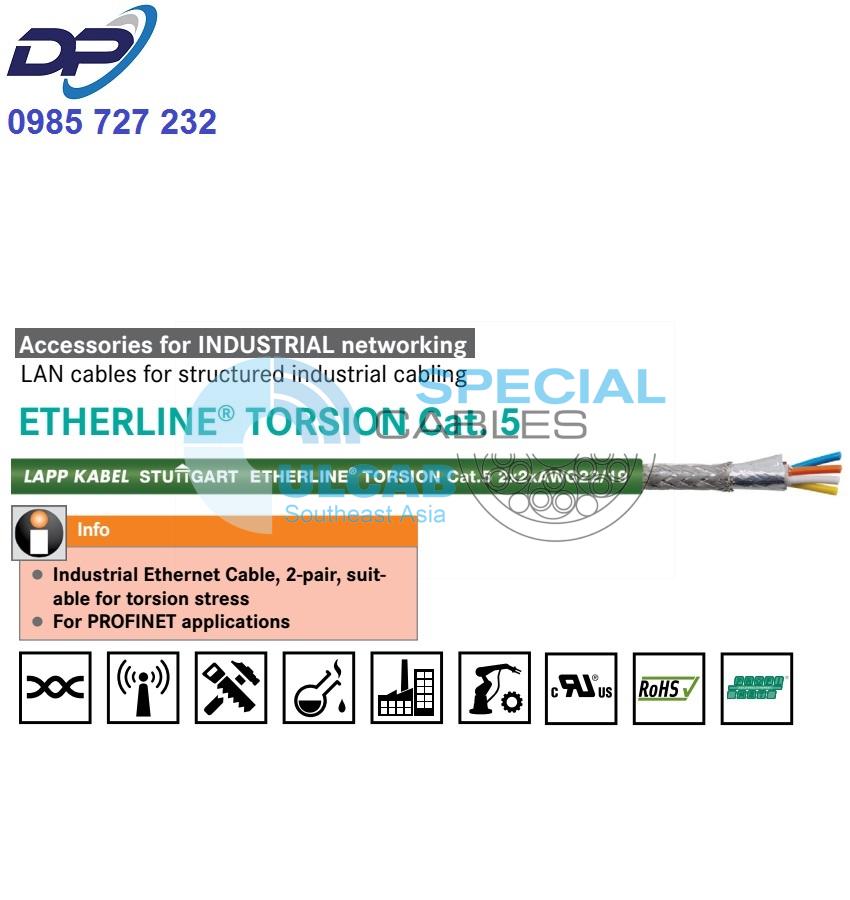

ETHERLINE® TORSION Cat. 5
Highly flexible application
Industrial Ethernet cable Cat.5 for torsion stress applications (± 180°);2 pairs, PUR jacket with AWM approval, design 2x2xAWG22/19, for PROFINET
- Industrial Ethernet Cable, 2-pair, suitable for torsion stress
- For PROFINET applications
Benefits
- Can be used in dry or damp rooms
- Screened against interference
- Can be used for Industrial Ethernet in harsh industrial environments
- Industrial Ethernet Cable, 2-pair, suitable for torsion stress
- 2pair: 10/100 Mbit/s for Industrial Ethernet
Application range
- Many applications with Industrial Ethernet, e.g. PROFINET, i.e. fixed installation, flexible use as well as TORSION.
- Wiring of machines, tools, devices, appliances and control cabinets
- max. cable lenght für 100 Mbit/s is 55 m
- suitable for EtherCAT and EtherNet/IP applications
Product features
- Cable suitable for high torsion stress. Tested with more than 1 million bending cycles and a right/left movement of 180° per metre.
- Outer sheath with high abrasion-resistance
- Broad usages due to halogen-free materials
- PUR outer sheath is highly resistant to mineral oils and abrasion
Norm references / Approvals
- UL AWM (Style 21161)
- Halogen-free according to VDE 0472-815
- Flame retardant acc. to IEC 60332-1-2
Product Make-up
- Stranded conductor, tinned
- AWG 22 (19-wire)
- PE core insulation
- Star quad
- Screening: wrapped with braided tinned-copper wires
- Non-woven wrapping
- PUR outer sheath, green (RAL 6018)
Classification
- ETIM 5.0 Class-ID: EC000830
- ETIM 5.0 Class-Description: Data cable
Peak operating voltage
- max. 100 V (not for power applications)
Minimum bending radius
- Installation: 5 x outer diameter
Test voltage
- 700 V
Characteristic impedance
- 100 ± 15 Ohm (> 1 MHz)
Temperature range
- -40°C to +80°C
| Article number | Article designation | Number of pairs and AWG per conductor | Outer diameter (mm) |
Copper index (kg/km) | Weight (kg/km) |
| ETHERLINE® TORSION CAT.5 | |||||
| 2170888 | ETHERLINE® TORSION CAT.5 | 2 x 2 x AWG22/19 | 6,5 | 31,3 | 52 |
