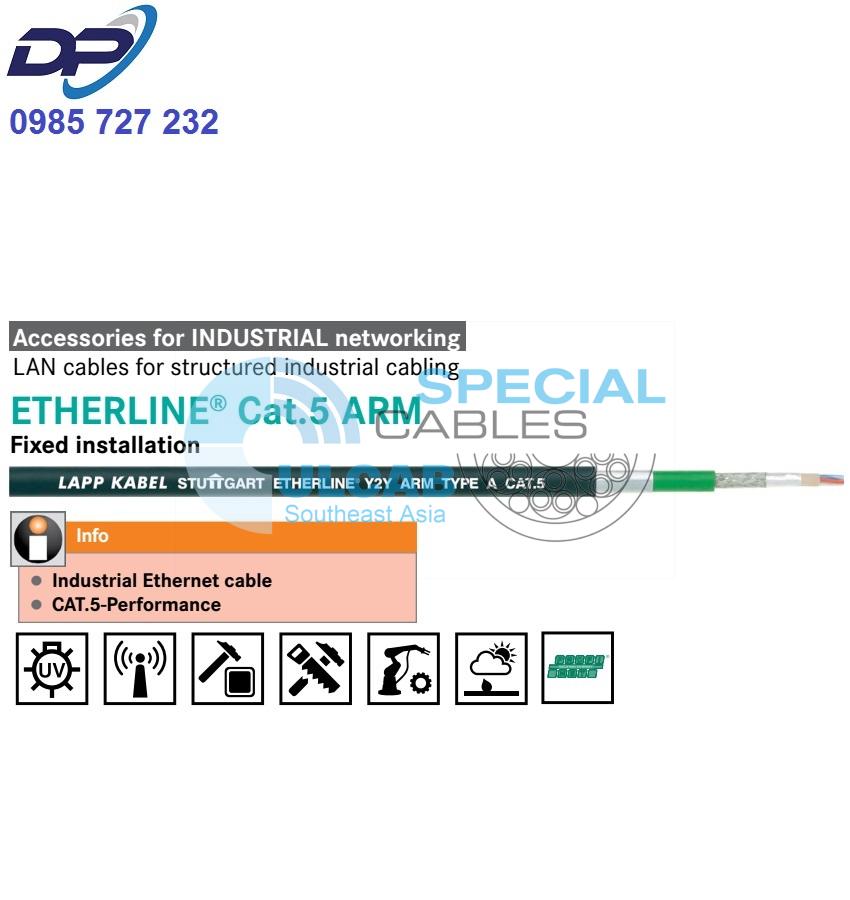

ETHERLINE® Cat.5 ARM
Fixed installation
Industrial Ethernet cable Cat.5 for direct burial with rodent protection, for PROFINET applications Type C, PE outer sheath
- Industrial Ethernet cable
- CAT.5-Performance
- Suitable for outdoor use and direct burial
Benefits
- Can be used for Industrial Ethernet in harsh industrial environments
- EMC-optimised design
- With armouring for improved rodent protection
- Screened against interference
- 2pair: 10/100 Mbit/s for Industrial Ethernet
Application range
- Suitable for outdoor use, UV-resistant
- Suitable for direct burial
- max. cable lenght für 100 Mbit/s is 100 m
- PROFINET application Type C but for fixed installation
- suitable for EtherCAT and EtherNet/IP applications
Product features
- Fast Connect (FC) cable design
Product Make-up
- Solid and bare copper conductor
- Core insulation: PE
- Colour-coded in accordance with PROFINET for Cat.5 apllications
- Star quad
- SF/UTP: braid of tinned copper wire and plastic laminated aluminum foil as overall screening
- Inner sheath made of PVC (green RAL6018)
2 layer galvanzid steel tape - Outer sheath made of black polyethylene (PE)
Classification
- ETIM 5.0 Class-ID: EC000830
- ETIM 5.0 Class-Description: Data cable
Peak operating voltage
- (not for power applications) 125 V
Minimum bending radius
- Fixed installation: 10 x outer diameter
- Flexing: 15 x outer diameter
Test voltage
- Core/core: 2000 V
- Core/screen: 2000 V
Characteristic impedance
- 100 Ω ± 15%
Temperature range
- Operation: -40 °C to +70 °C
- During installation: -20°C to +60°C
| Article number | Article designation | Number of pairs and AWG per conductor | Outer diameter (mm) |
Copper index (kg/km) | Weight (kg/km) |
| Fixed installation | |||||
| 2170496 | ETHERLINE® Cat.5 ARM | 2 x 2 x AWG22/1 | 9,3 | 30,4 | 124 |
