Cáp Mạng LAPP KABEL ( 2170901 ) 2 x 2 x AWG22/7 | ETHERLINE® Y CAT.5e BK | Chính Hãng – Chống Nhiễu – Giá Tốt Nhất

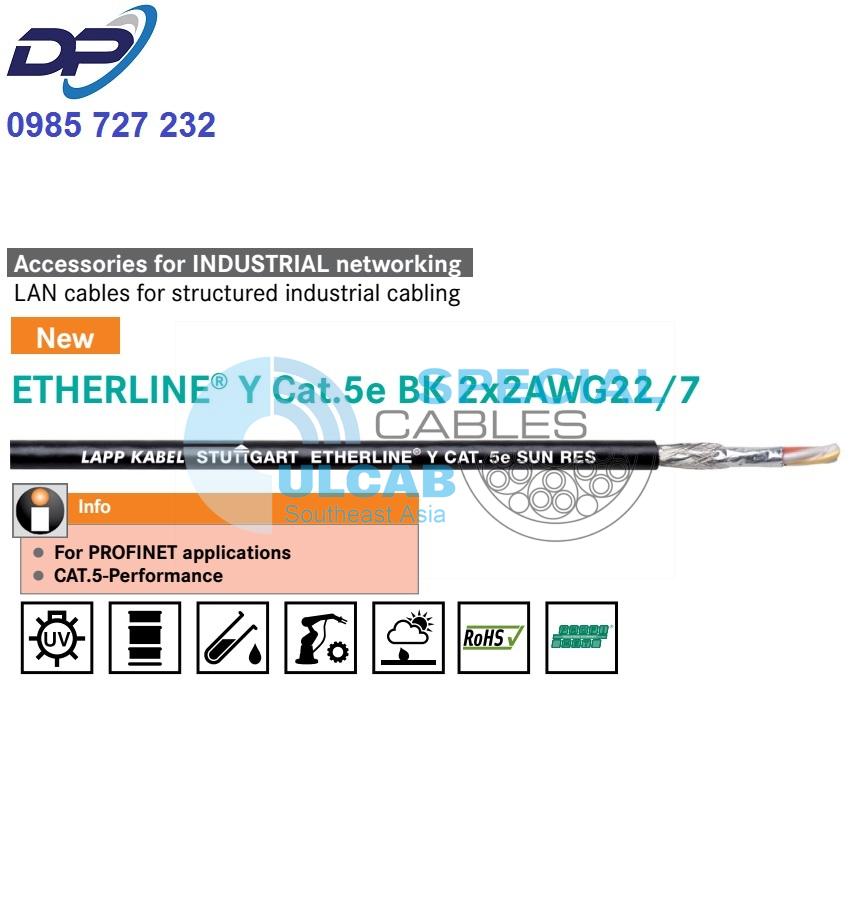

ETHERLINE® PN Y Cat.5e BK
Flexible applications
Industrial Ethernet cable Cat.5 for flexible use, for PROFINET applications type B; design 2x2xAWG22/7, PVC sheath material
- For PROFINET applications
- CAT.5-Performance
Benefits
- UV- and weather-resistant in black
- Can be used in dry or damp rooms
- Screened against interference
- Suitable for outdoor use, UV-resistant
- 2pair: 10/100 Mbit/s for Industrial Ethernet
Application range
- Many applications with Industrial Ethernet, e.g. PROFINET type B, i.e. fixed installation and flexible use.
- Wiring of machines, tools, devices, appliances and control cabinets
- max. cable lenght für 100 Mbit/s is 85 m
- suitable for EtherCAT and EtherNet/IP applications
Product features
- PVC compound TM2 according to EN 50363-4-1
- Highly resistant to a multitude of oils, acids and other chemical media at room temperature
- Flame retardant acc. to IEC 60332-1-2
- CAT.5-Performance
Product Make-up
- Braided conductor, 7-wire, bare
- Core insulation: Based on Polyolefin
- Colour-coded in accordance with PROFINET for Cat.5 apllications
- Star quad
- Overall screening with copper braid and plastic-laminated aluminium foil
- PVC outer sheath, black
Classification
- ETIM 5.0 Class-ID: EC000830
- ETIM 5.0 Class-Description: Data cable
Peak operating voltage
- (not for power applications) 125 V
Minimum bending radius
- Fixed installation: 10 x outer diameter
- Flexing: 15 x outer diameter
Test voltage
- Core/core: 1000 V
- Core/screen: 500 V
Characteristic impedance
- 100 ± 15 Ohm (> 1 MHz)
Temperature range
- Flexing: -10°C to +70°C
- Fixed installation: -40°C to +80°C
| Article number | Article designation | Number of pairs and AWG per conductor | Outer diameter (mm) |
Copper index (kg/km) | Weight (kg/km) |
| 2170901 | ETHERLINE® Y CAT.5e BK 2x2xAWG22/7 | 2 x 2 x AWG22/7 | 6,2 | 30,4 | 59 |
