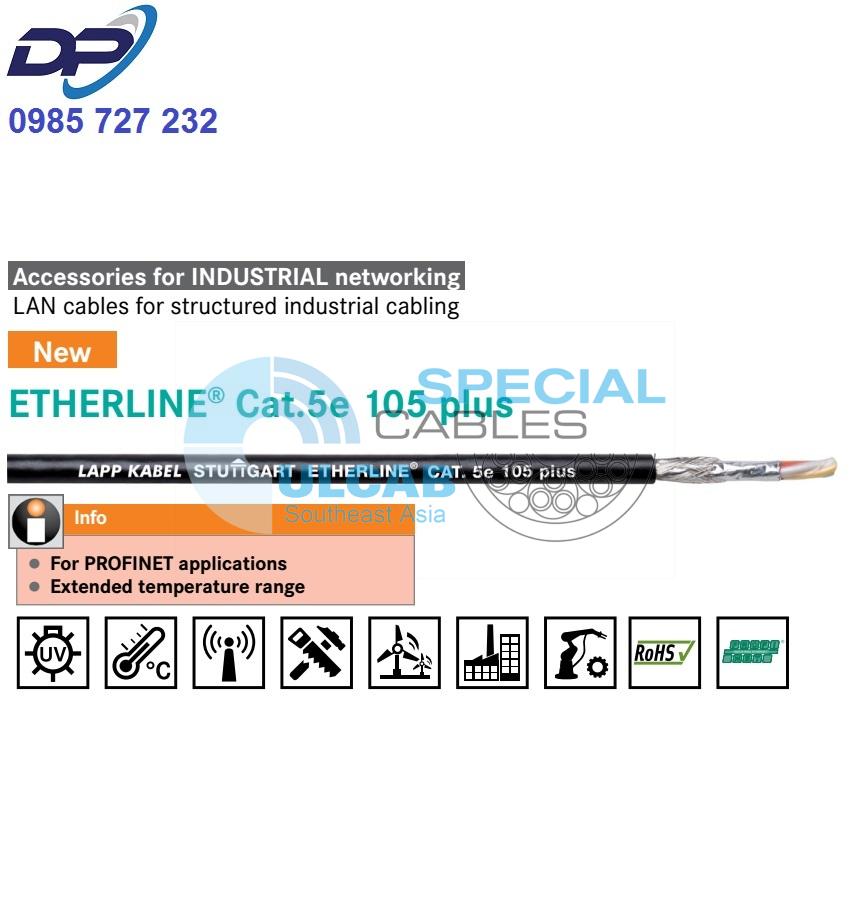

ETHERLINE® Cat.5e 105 plus
Flexible applications
Industrial Ethernet cable Cat.5 for flexible use, for PROFINET applications type B; design 2x2xAWG22/7; for permanent temperatures up to 105°C
- For PROFINET applications
- Extended temperature range
Benefits
- No need for additional cable protection against high temperatures
- High temperature resistance
- Industrial use
- Premium screening against electromagnetic interference
- 2pair: 10/100 Mbit/s for Industrial Ethernet
Application range
- for installation in hollow shaft between gear unit and pitch system
- suitable for fixed installation and occasionally flexible use in high temperature areas
- max. cable lenght für 100 Mbit/s is 85 m
- suitable for EtherCAT and EtherNet/IP applications
- Wiring of machines, tools, devices, appliances and control cabinets
Product features
- Optimum EMC protection
- Permanent load up to +105°C, temporary load +120°C
Norm references / Approvals
- electrical requirements according to IEC 61156-5
Product Make-up
- Braided conductor, 7-wire, bare
- Core insulation: PE
- Colour-coded in accordance with PROFINET for Cat.5 apllications
- Overall screening with copper braid and plastic-laminated aluminium foil
- Outer sheath based on TPE
- Colour: green (based on RAL 6018)
Classification
- ETIM 5.0 Class-ID: EC000830
- ETIM 5.0 Class-Description: Data cable
Minimum bending radius
- Fixed installation: 10 x outer diameter
- Flexing: 15 x outer diameter
Characteristic impedance
- 100 Ω ± 15%
Temperature range
- Fixed installation: -40°C to +105°C
- Flexing: -30°C to +105°C
| Article number | Article designation | Number of pairs and AWG per conductor | Outer diameter (mm) |
Copper index (kg/km) |
| 2170636 | ETHERLINE Cat.5e 105 plus | 2x2xAWG22/7 | 6,2 | 30,4 |
■ Accessories
▯ Connector RJ45 Cat.5e for Profnet
▯ Easy Connect RJ45 Modul Cat.6A 10G
▯ BUS M12 connectors that can be assembled
