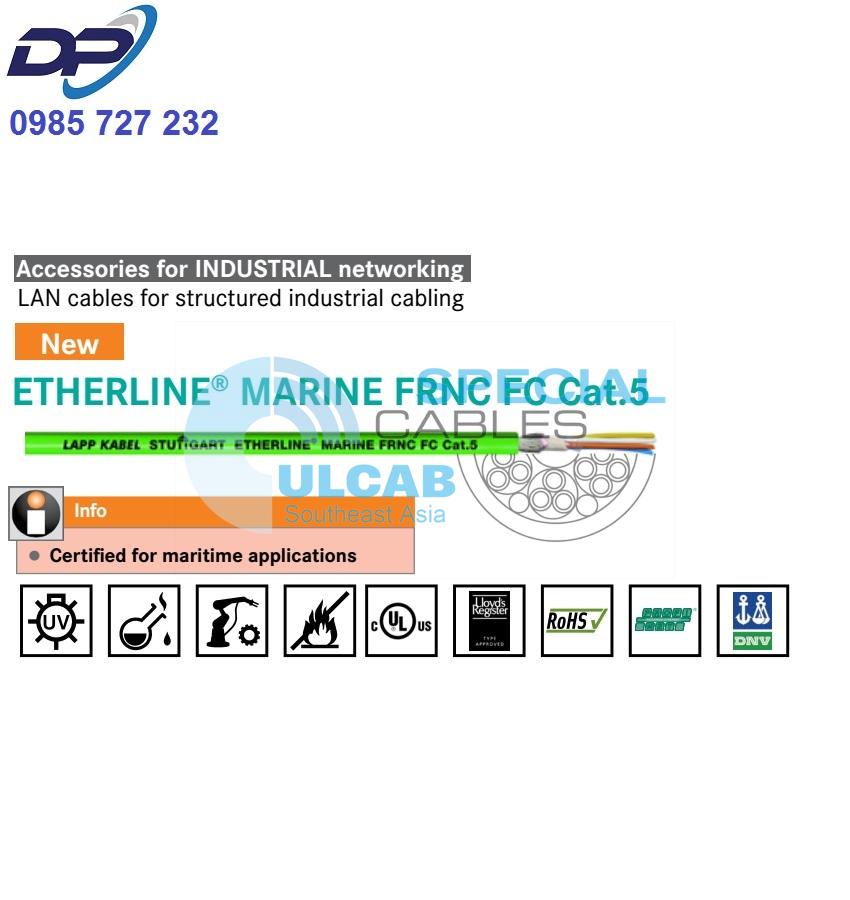

ETHERLINE® MARINE FRNC FC CAT.5
Flexible applications
Industrial Ethernet cable Cat.5 for flexible use, FRNC outer sheath, with GL and DNV approval, for PROFINET applications up to 100 Mbit
- Certified for maritime applications
- Flexible use in conjunction with light mechanical stress
Benefits
- Can be used for Industrial Ethernet in harsh industrial environments
- For use in dry, damp and wet rooms
- Premium screening against electromagnetic interference
- 2pair: 10/100 Mbit/s for Industrial Ethernet
Application range
- Shipbuilding
- Wiring of machines, tools, devices, appliances and control cabinets
- suitable for EtherCAT and EtherNet/IP applications
- Onshore and offshore applications
- max. cable lenght für 100 Mbit/s is 85 m
Product features
- High flame retardancy in accordance with IEC 60332-3 and FT4
- CAT.5-Performance
- Fast Connect (FC) cable design
Norm references / Approvals
- CMG UL/CSA certification 75°C or PLTC, Sun Res
- Flame-retardant according to CSA FT4
UL Vertical-Tray Flame Test
Product Make-up
- Fine-wire strand made of tinned-copper wires
- Colour-coded in accordance with PROFINET for Cat.5 apllications
- Star quad
- Inner sheath: thermoplastic copolymer (FRNC)
- SF/UTP: braid of tinned copper wire and plastic laminated aluminum foil as overall screening
- Halogen-free and flame-retardant FRNC outer sheath
- Colour: green (based on RAL 6018)
Classification
- ETIM 5.0 Class-ID: EC000830
- ETIM 5.0 Class-Description: Data cable
Peak operating voltage
- (not for power applications) 125 V
Minimum bending radius
- Fixed installation: 3 x outer diameter
- Flexing: 7.5 x outer diameter
Characteristic impedance
- 100 Ω ± 15%
Temperature range
- Operation: -25°C to +70°C
- During installation: 0 °C to +50 °C
| Article number | Article designation | Number of pairs and AWG per conductor | Outer diameter (mm) |
Copper index (kg/km) | Weight (kg/km) |
| 2170889 | ETHERLINE® MARINE FRNC FC CAT.5 | 2 x 2 x AWG22/7 | 6,5 | 32 | 68 |
■ Accessories
▯ Connector RJ45 Cat.5e for Profnet
▯ BUS M12 connectors that can be assembled
▯ FC STRIP stripping tool
