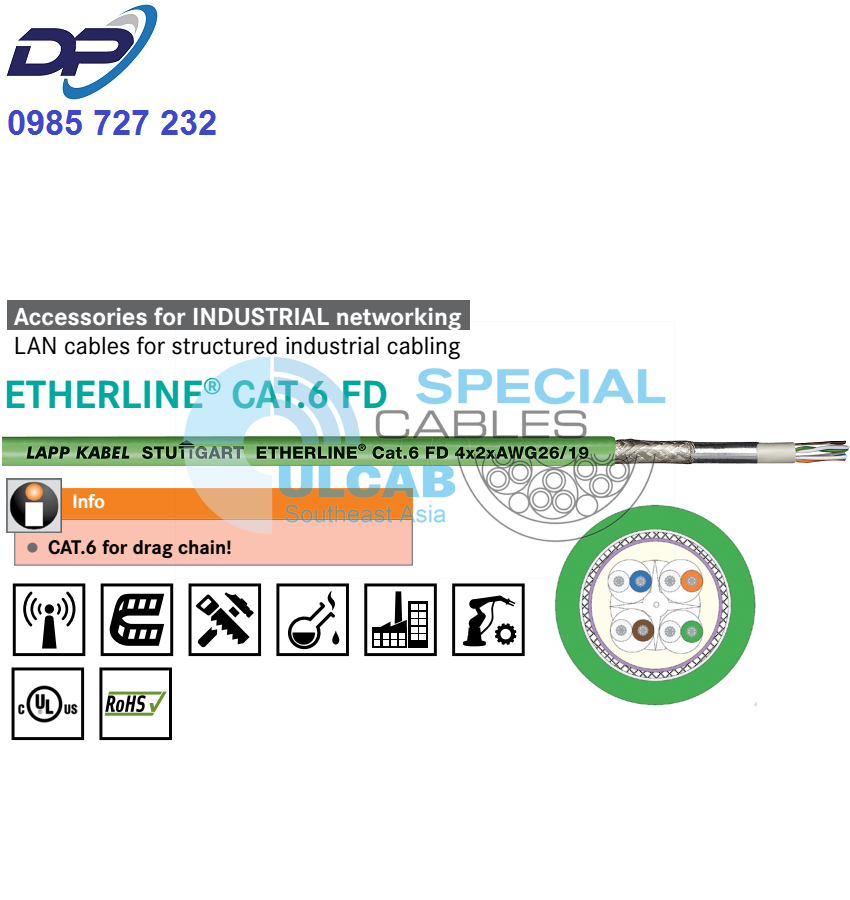

ETHERLINE® CAT.6 FD
Ethernet cable Category 6, Class E for use in drag chain applications – verified up to 250 MHz
Industrial Ethernet cable Cat.6 for high flexible use; PUR (UL-approval) outer sheath material, design 4 x2xAWG26/19
CAT.6 for drag chain!
Benefits
- Highly flexible data cable with PUR outer sheath, meets the highest service life requirements, even under harsh climatic conditions.
- Premium screening against electromagnetic interference
Application range
- For use in drag chains and moving machinery parts in dry or damp rooms
- Only for patch cable applications (max. 60 m)
- suitable for EtherCAT and EtherNet/IP applications
- Plant engineering, machinery manufacturing
- 4pair: 10/100/1000 Mbit/s for Industrial Ethernet
Product features
- Flame-retardant according IEC 60332-1-2
- PUR outer sheath is resistant to most oils and hydraulic fluids
- CAT.6 for drag chain!
- min. 1 million bending cycles in the drag chain
Norm references / Approvals
- UL/CSA type CMX (UL 444)
Product Make-up
- Stranded conductor, tinned
- AWG 26 (19-wire)
- PP core insulation
- Inner sheath: thermoplastic copolymer (FRNC)
- SF/UTP: braid of tinned copper wire and plastic laminated aluminum foil as overall screening
- PUR outer sheath, halogen-free
- Colour: green (based on RAL 6018)
Classification
- ETIM 5.0 Class-ID: EC000830
- ETIM 5.0 Class-Description: Data cable
Peak operating voltage
- max. 100 V (not for power applications)
Minimum bending radius
- Fixed installation: 4 x outer diameter
- Flexing: 7.5 x outer diameter
Test voltage
- 700 V
Characteristic impedance
- nom. 100 Ω acc. to IEC 61156-6
Temperature range
- Fixed installation: -40°C to +80°C
- Flexing: -30°C to +80°C
| Article number | Article designation | Number of pairs and AWG per conductor | Outer diameter (mm) |
Copper index (kg/km) | Weight (kg/km) |
| 2170488 | ETHERLINE® FD P CAT.6 | 4 x 2 x AWG26/19 | 7,8 | 31,7 | 63 |
■ Accessories
▯ Field-Terminable Connector RJ45 CAT.5e FM45
▯ Connector RJ45 Cat.6A FM for FD-cables
▯ Connector M12 x-coded Cat.6A 10G feldmountable
▯ DATA STRIP stripping tool
