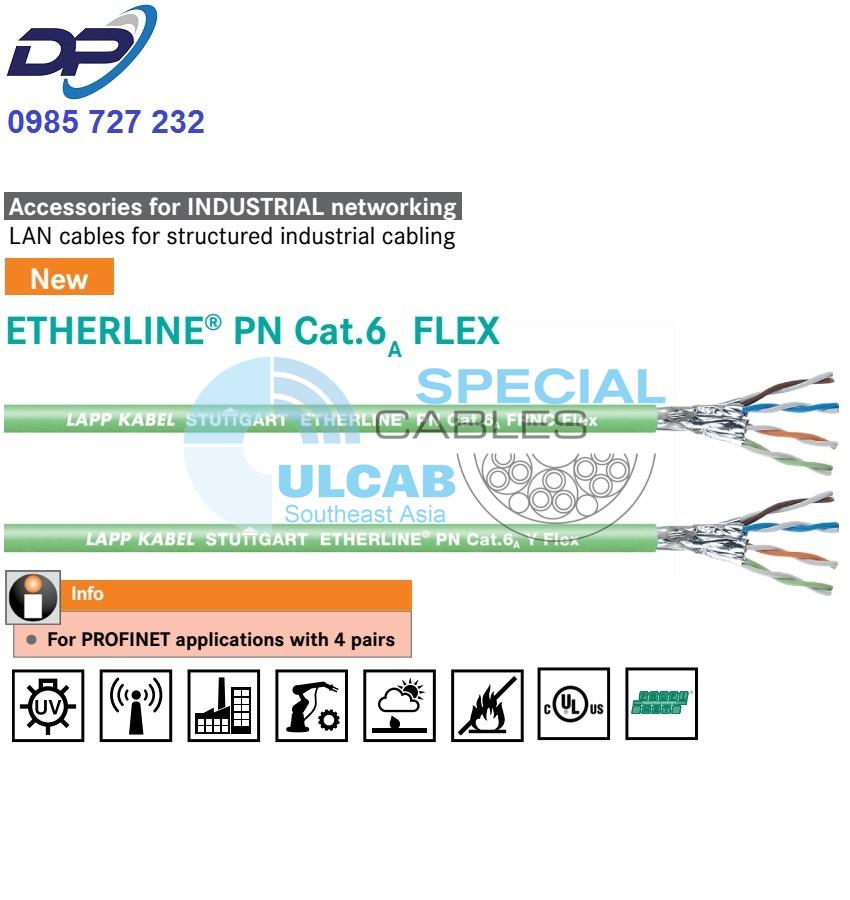

ETHERLINE® PN Cat.6A FLEX
Flexible use
Industrial Ethernet cable Cat.6A for flexible use, 4 pairs, PVC or FRNC outer sheath with UL-approval, 4x2xAWG23/7
- For PROFINET applications with 4 pairs
- CAT.6Aqualified for 10Gbit/s
Benefits
- Can be used in dry or damp rooms
- Screened against interference
- Can be used for Industrial Ethernet in harsh industrial environments
- 4pair: 100Mbit/s up to 10 Gbit/s for Industrial Ethernet
Application range
- for industrial secondary and tertiary cabling according to EN 50173-3 ISO/IEC 24702
- At 100 Mbit/s: max 90 m cable length
- Wiring of machines, tools, devices, appliances and control cabinets
- suitable for EtherCAT and EtherNet/IP applications
- For flexible applications (7-wire stranded conductor)
Product features
- CAT.6A for flexible application, qualified for 10Gbit/s
- Meets the requirements according to CAT.6A, ISO/IEC 11801 and EN 50173
- High-quality, double screening ensures high transmission reliability in areas with electromagnetic interference
- The oil-resistant PVC sheath enables usage in industrial environments
Norm references / Approvals
- PVC cable is UL/CSA-certified (CMG)
- ETHERLINE® PN Cat.6A Y FLEX: ECOLAB®
Industry standard for innovation and efficiency in the field of professionllen cleaning and disinfection - FRNC cable is UL/CSA-certified (CM)
Product Make-up
- 7-wire tinned stranded copper conductor
- Core insulation: PE
- S/FTP: copper braid as overall screening and pair screening with aluminium compound foil
- PVC or FRNC jacket material
- Colour: green (based on RAL 6018)
Classification
- ETIM 5.0 Class-ID: EC000830
- ETIM 5.0 Class-Description: Data cable
Peak operating voltage
- (not for power applications) 125 V
Minimum bending radius
- Flexing: 15 x outer diameter
- Fixed installation: 8 x outer diameter
Characteristic impedance
- 100 ± 15 Ohm (> 1 MHz)
Temperature range
- cable halogenfree compound
Fixed installation: -25°C to +80°C
cable with PVC jacket
Fixed installation: -40°C to +80°C
| Article number | Article designation | Number of pairs and AWG per conductor | Outer diameter (mm) |
Copper index (kg/km) | Weight (kg/km) |
| PVC outer sheath | |||||
| 2170930 | ETHERLINE PN Cat.6A Y FLEX | 4 x 2 x AWG23/7 | 9 | 48 | 92 |
| FRNC outer sheath | |||||
| 2170931 | ETHERLINE PN Cat.6A FRNC FLEX | 4 x 2 x AWG23/7 | 9 | 48 | 87 |
■ Accessories
▯ Easy Connect RJ45 Modul Cat.6A 10G
▯ Connector RJ45 Cat.6A feldmountable
▯ Connector industry RJ45 Cat.6A 10 IP68
▯ DATA STRIP stripping tool
