SHIELDED/UNSHIELDED FIRE RETARDANT CONTROL CABLE
| Description Alantek Fire Retardant Control Cable consists of Bare Copper Conductor with LSZH Insulation, Aluminium Foil and Outer LSZH Jacket Application Multipair Control Cable for industrial, alarm, PA and critical system. Tested in accordance to IEC 60332-1 Colour Code • 1 pair : Black, White • > 1 pair : Black, White with numberings |
| Cable Counts | Conductor Stranded Copper |
Insulation LSZH |
Mica Tape | Shield | Drain Wire | Jacket LSZH (Orange colour) |
|||
| mm2 | No./mm ±0.024mm |
OD (mm) ±0.3 |
All Foil | No./mm | OD (mm) ±0.1 | ||||
| Unshielded, 1pair | 1.5 | 7/0.5 | 3.1 | 100% | N/A | N/A | 8.0 | ||
| Unshielded, 1pair | 2.5 | 14/0.5 | 3.64 | 100% | N/A | N/A | 8.8 | ||
| Shielded, 1pair | 1.5 | 7/0.5 | 3.1 | 100% | 100% | 19/0.287 | 8.5 | ||
| Shielded, 1pair | 2.5 | 14/0.45 | 3.64 | 100% | 100% | 19/0.36 | 9.6 | ||
| SHIELDED/UNSHIELDED FIRE RETARDANT CONTROL CABLE | |||||||
| STT | Part number | Mô Tả | |||||
| 1 | 301-CI9501-00LS | Alantek Control shield cable 16 AWG- 1-pair LSZH | rl/500M | |||||
| 2 | 301-CI9401-00LS | Alantek Control shield cable 18 AWG- 1-pair LSZH | rl/500M | |||||

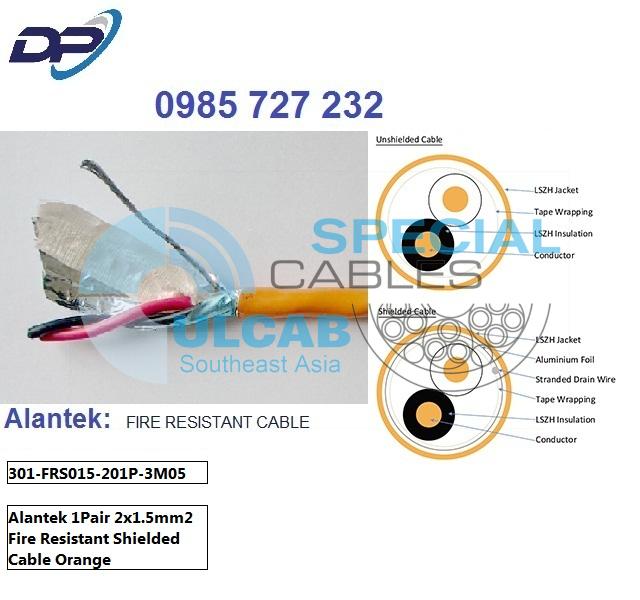

| 3 | 301-FRS015-201P-3M05 | Alantek 1Pair 2×1.5mm2 Fire Resistant Shielded Cable Orange | rl/500M | |||||
| 4 | 301-FRS025-201P-3M05 | Alantek 1Pair 2×2.5mm2 Fire Resistant Shielded Cable Orange | rl/500M | |||||
| 5 | 301-FRU015-201P-3M05 | Alantek 1Pair 2×1.5mm2 Fire Resistant Un-Shielded Cable Orange | rl/500M | |||||
| 6 | 301-FRU025-201P-3M05 | Alantek 1Pair 2×2.5mm2 Fire Resistant Un-Shielded Cable Orange | rl/500M | |||||
