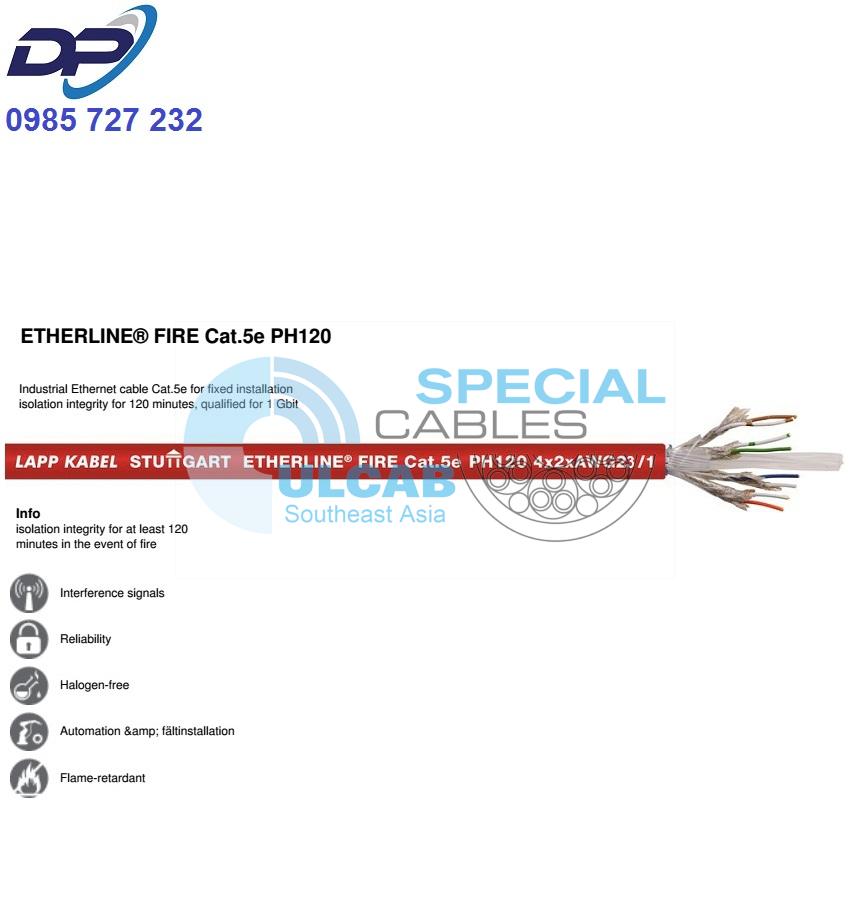

ETHERLINE® FIRE Cat.5e PH120
Industrial Ethernet cable Cat.5e for fixed installation; isolation integrity for 120 minutes, qualified for 1 Gbit
isolation integrity for at least 120
minutes in the event of fire
Benefits
- Ensures that the cable can still transmit
data during and after a fire for 120 min
(according to EN50200) - High-quality, double screening ensures high transmission reliability in areas with electromagnetic interference
Application range
- In industrial areas that use fire as a tool
- Highly combustible or fire-prone areas
- for fixed installation
- For indoor use
Product features
- Fire behaviour:
– Halogen-free (IEC 60754-1 & EN50267-2-1)
– Flame-retardant (IEC 60332-1)
– Fire retardant (IEC 60332-3-24)
– Low smoke density (IEC 61034-2)
– Circuit integrity (EN50200); 120 min - Meets the requirements according to Cat. 5e and class D
Product Make-up
- Solid bare copper conductor
- Core insulation: Based on Polyolefin
- each insulation will be wrapped with a special tape (anti-fire barrier)
- Twisting: 2 twisted-pair cores, stranding from 4 pairs
- F/UTP: foil screening as overall screening
- Halogen-free and flame-retardant FRNC outer sheath, colour: red (similar to RAL3000)
Classification
- ETIM 5.0 Class-ID: EC000829
- ETIM 5.0 Class-Description: Signal-/telecommunications cable
Peak operating voltage
- (not for power applications) 125 V
Minimum bending radius
- Fixed installation: 15 x outer diameter
Characteristic impedance
- 100 Ω ± 15%
Temperature range
- Operation: -20 °C to +70 °C
| Article number | Article designation | Number of pairs and AWG per conductor | Outer diameter (mm) |
Copper index (kg/km) | Weight (kg/km) |
|
2170905 |
ETHERLINE® FIRE Cat.5e PH120 | 4 x 2 x AWG23/1 | 8.3 | 24 | 75 |
