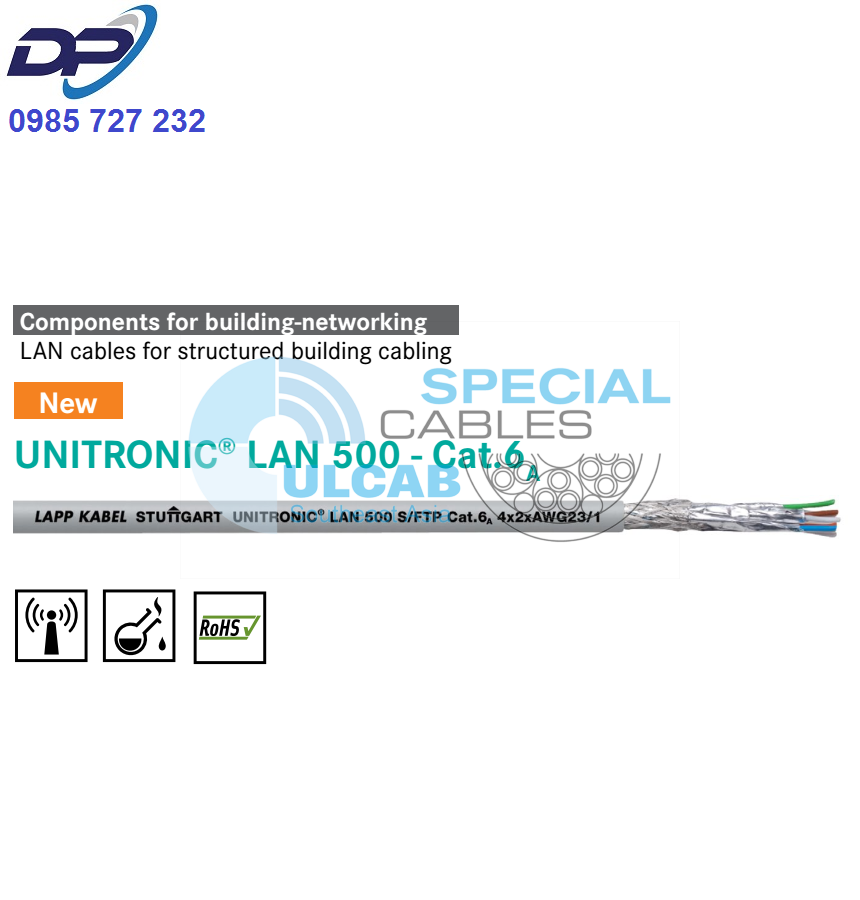

UNITRONIC® LAN 500 Cat.6A

Ethernet cable for Category 6A/ class EA -verified up to 500 MHz

The LAN cable with a characteristic impedance of approximately 100 ohms is suitable for structured building wiring networks. It has solid core conductor and high-quality shielding.

CPR: Article number choice under www.lappkabel.com/cpr

Interference signals Halogen-free

Benefits

  • LAN cables for structured building cabling according to EN 50173 and ISO/IEC 11801

Application range

  • Mainly used where the terminal density is very high, e.g. for wiring office, administration and development buildings in the tertiary area (floor wiring).
  • Cable length in tertiary area (horizontal area, floor) should not exceed a length of 100 m in accordance with the ISO/IEC 11801 and EN 50173 standards (90 m in cable duct + 10 m in working area)

Product features

  • Transfer of digital and analogue data signals
  • Flame retardant acc. to IEC 60332-1-2
    2170195
    2170196: flame retardant acc. to IEC 60332-1-2 and IEC 60332-3-24
  • IEEE 802.3: 10/100/1000Base-T, 10GBase-T IEEE 802.5: ISDN; FDDI; ATM

Norm references / Approvals

  • Class EA out of the standard ISO/IEC 11801 corresponds to Cat.6A
  • LAN Cat.6A cables from Lapp Kabel for “Structured Cabling Systems” meet the requirements in accordance with EIA/TIA-568 and TSB36, as well as ISO/IEC 11801 or EN 50173 (Class EA – permanent link).

Product Make-up

  • Solid conductor
  • U/FTP: aluminium compound foil as pair screening
  • F/FTP: aluminium compound foil as overall screening and pair screening
  • S/FTP: copper braid as overall screening and pair screening with aluminium compound foil
  • outer sheath either as PVC (color grey RAL1015) or LSZH (color orange RAL2003)

Classification

  • ETIM 5.0 Class-ID: EC000830
  • ETIM 5.0 Class-Description: Data cable

Minimum bending radius

  • during installation: 8 x outer diameter
  • Fixed installation: 4 x outer diameter

Characteristic impedance

  • 100 Ω ± 15%

Temperature range

  • Fixed installation: -20°C to +60°C
  • Flexing: 0°C to +50°C
Article number Article designation Number of pairs and AWG per conductor Outer diameter [mm] Copper index (kg/km) Weight (kg/km)
PVC version
2170143 500 S/FTP Cat.6A 4 x 2 x AWG23/1 7,7 27 58
Halogen-free versions
2170195 500 U/FTP Cat.6A LSZH 4 x 2 x AWG23/1 7,4 21 52
2170196 500 F/FTP Cat.6A LSZH 4 x 2 x AWG23/1 7,6 22 56

Accessories
Connector RJ45 CAT.6 Hirose TM21
DATA STRIP stripping tool
