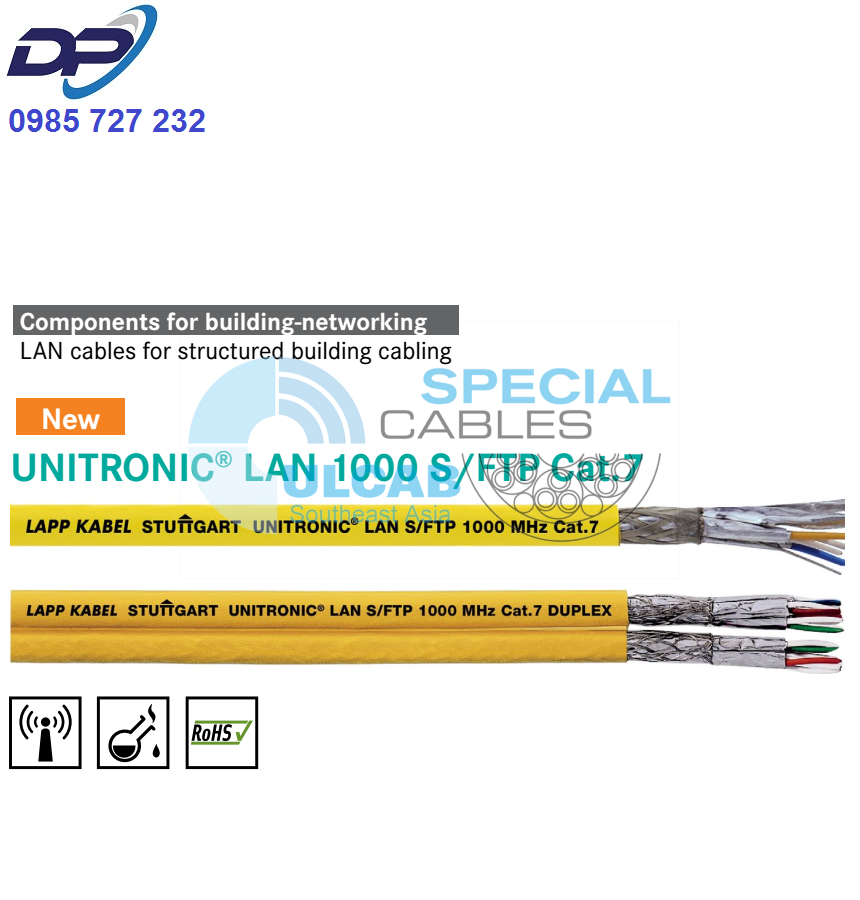

UNITRONIC® LAN 1000 Cat.7
Data cable for Category 7/ class F – verified up to 1000 MHz
The LAN cable can be used in places with a high density of terminal devices, for example in administrative buildings. It transmits the digital and analogue signals.
CPR: Article number choice under www.lappkabel.com/cpr
Benefits
- LAN cables for structured building cabling according to EN 50173 and ISO/IEC 11801
Application range
- Mainly used where the terminal density is very high, e.g. for wiring office, administration and development buildings in the tertiary area (floor wiring).
- Cable length in tertiary area (horizontal area, floor) should not exceed a length of 100 m in accordance with the ISO/IEC 11801 and EN 50173 standards (90 m in cable duct + 10 m in working area)
Product features
- Transfer of digital and analogue data signals
- Flame-retardant according to IEC 60332-1-2 and bundle flame test according to IEC 60332-3-24
- IEEE 802.3: 10/100/1000Base-T, 10GBase-T
IEEE 802.5: ISDN; FDDI; ATM; cable sharing
IEEE 802.3at: suitable for PoE
Norm references / Approvals
- Class F in the ISO/IEC 11801 standard corresponds to CAT.7
Product Make-up
- Solid conductor
- S/FTP: copper braid as overall screening and pair screening with aluminium compound foil
- Outer sheath: halogen-free, flame-retardant compound
- Colour: yellow (RAL 1021)
Classification
- ETIM 5.0 Class-ID: EC000830
- ETIM 5.0 Class-Description: Data cable
Minimum bending radius
- during installation: 8 x outer diameter
- Fixed installation: 4 x outer diameter
Characteristic impedance
- 100 Ω ± 15%
Temperature range
- Operating temperature: -20°C to +60°C
- During installation: 0 °C to +50 °C
| Article number | Article designation | Number of pairs and AWG per conductor | Outer diameter [mm] | Copper index (kg/km) | Weight (kg/km) |
| Halogen-free versions | |||||
| 2170614 | 1000 S/FTP Cat.7 LSZH | 4 x 2 x AWG23/1 | 7,7 | 27 | 60 |
| 2170634 | 1000 S/FTP Cat.7 duplex | 2 x (4 x 2 x AWG23/1) | 7.7 x 15.4 | 54 | 120 |
