Cáp Mạng DINTEK ( 1105-06006 ) CAT 6A U/FTP 4Pair 23AWG PVC | Chính Hãng – Chống Nhiễu – Giá Tốt Nhất
CAT.6A U/FTP , 4 pair for 10GB application, 23 AWG, 305m trên rulo nhưa, Bọc nhôm chống nhiễu từng đôi – màu xám.
CAT6A U/FTP CABLE 305M 23AWG PVC
POWERMAX+™ : CAT.6A 10 GIGABIT HIGH SPEED ETHERNET
Cat.6A 4P U/FTP with foil 23AWG solid cable PVC
DINTEK PowerMAX+™ CAT.6A U/FTP Cable is specifically designed to support high speed network applications such as 10-Gigabit Ethernet .
The cable is constructed of four individually foil wrapped pairs. DINTEK PowerMAX+ CAT.6A U/FTP cable minimizes alien and near end crosstalk, provides excellent signal isolation and provides superior electromagnetic interference protection.
| Frequency | Attenuation | NEXT | PSNEXT |
| (MHz) | dB/100m | dB | dB |
| 1MHz | 2.1* | 74.3* | 72.3* |
| 10MHz | 5.9* | 59.3* | 57.3* |
| 100MHz | 19.1* | 44.3* | 42.3* |
| 200MHz | 27.6* | 39.8* | 37.8* |
| 250MHz | 31.1* | 38.3* | 36.3* |
| 300MHz | 34.3* | 37.1* | 35.1* |
| 400MHz | 40.1* | 35.3* | 33.3* |
| 500MHz | 45.3* | 33.8* | 31.8* |
Applications
10GBASE-T Ethernet
100BASE-TX Fast Ethernet
1000BASE-TX Gigabit Ethernet
1000BASE-T Gigabit Ethernet
10BASE-TX Ethernet
ATM CB1G
155/622 Mbps ATM
100 Mbps TP-PMD
100VG-AnyLAN
4/16 Mbps Token Ring
Voice
STANDARDS
ISO/IEC61156-5 2nd edition
ANSI/TIA-568-C.2 Cabling Standard
UL/cUL Listed
PHYSICAL CHARACTERISTICS
Jacket elongation: min 100%(PVC).125%(LSOH)
Jacket tensile strength: min 1.407Kgf/mm2(PVC) 0.917Kg/mm2(LSOH)
After aging jacket tensile strength: Min tensile strength:75%(PVC) 70%(LSOH)
After aging jacket elongation: Min elongation retention :50%(PVC) 75%(LSOH)
ELECTRICAL CHARACTERISTICS
Impedance: 125 Ohm 20%(64KHz). 100 Ohm 15%(1~500MHz)
D.C.R (Max.) : 9.38Ohm /100m at 20℃
D.C.R. Unbalance (Max.) : 2% MAX.
Mutual Capacitance: nom. 5600pf/100m
Capacitance, unbalance (Max.): 160 pF/100m DC
Insulation Resistance (Min.): 5000 Mohm/Km
Dielectric Strength: 1500 Vdc / 2 second

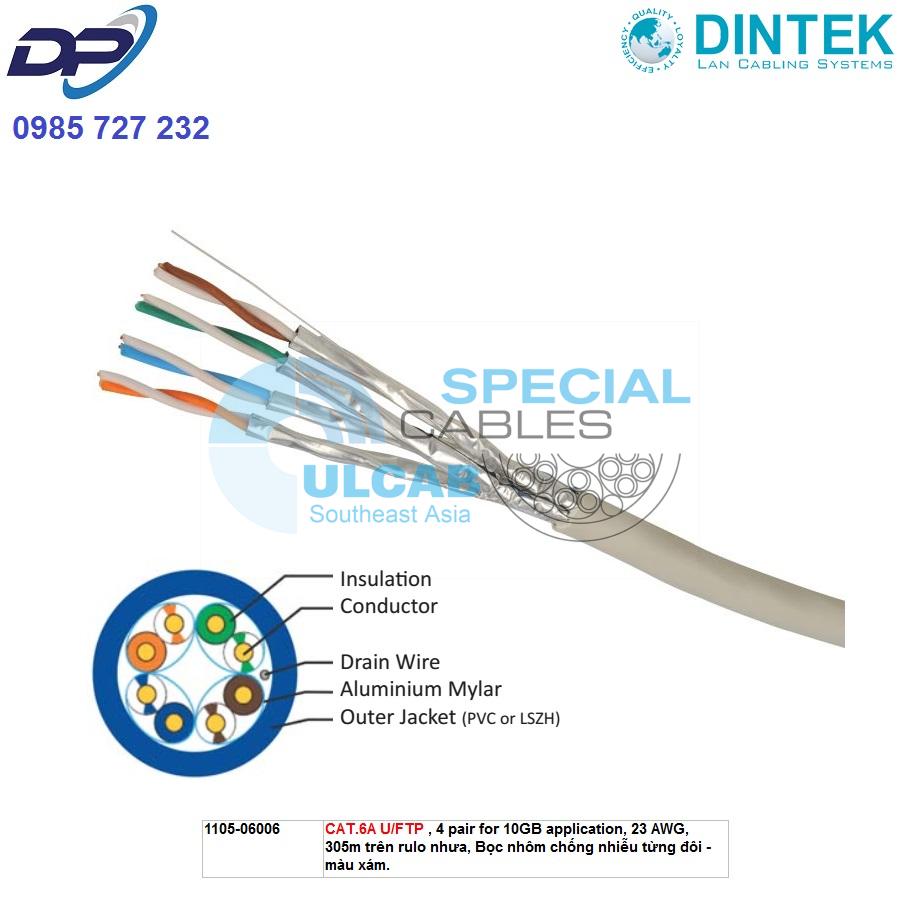

Cable Structure
Twisted pair color code:
Pair 1> blue, white/blue ring.
Pair 2> orange, white/orange ring
Pair 3> green, white/green ring
Pair 4> brown, white/brown ring
Conductor: 23AWG solid Bare copper 0.583mm±0.02mm
Insulation material: Foam-Skin PE
Diameter of dielectric core: 1.42±0.05mm
Number of twist pairs: 4 pairs
Individual Shielding: A layer of aluminum-foil laminated tape will be wrapped over the twinning, the aluminum side face-out.
Assembly: 4 pairs of dielectric core shall be stranded in circular form.
Overall Shielding: aluminum-foil laminated tape
Material of jacket: Comes in either PVC or LSZH
Overall Diameter: Ave 7.3±0.3mm
| Part No. | Description | Jacket | Std Pkg Qty |
| 1105-06006 | LAN twisted pair cable.Cat.6A.4P U/FTP.23AWG Solid | PVC gray | 305M/R |
