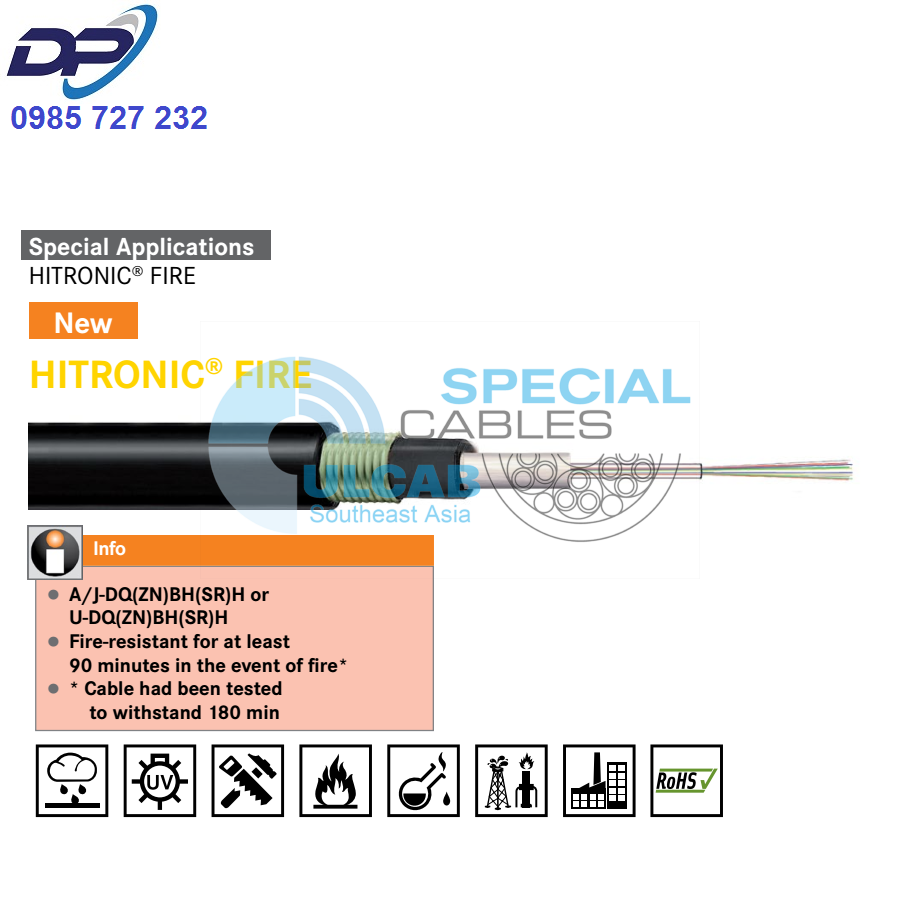

HITRONIC® FIRE
Safety cable with central loose tube, LSZH inner and outer sheath, corrugated steel tape; halogen-free
HITRONIC® FIRE- A/J-DQ(ZN)BH(SR)H- security cable with central loose tube, inner and outer sheath, corrugated steel tape, with single-mode or multimode fibres
- Fire-resistant for at least
180 minutes in the event of fire - * Cable had been tested
to withstand 180 min
Benefits
- Ensures that the fibres can still transmit
data during and after a fire
(according to IEC 60331-25) - Suitable for installation in underground
tunnels where fire safety is critical - Additional sheath protects the fibres for use in harsh environments
- Armouring provides excellent protection
against high mechanical stress and rodents - UV-resistant
longitudinally and laterally watertight
Application range
- In industrial areas that use fire as a tool
- Highly combustible or fire-prone areas
- For indoor and outdoor use
- Methods of Deployment: empty plastic pipes, ducts and trays
Product features
- Fire behaviour:
– Halogen-free (IEC 60754-1)
– Flame-retardant (IEC 60332-3)
– Low smoke density (IEC 61034-1/2)
– Circuit integrity (IEC 60331-25);
Optical fibre cables - Central loose tube with up to 24 fibres
- Colour-coded fibres
- Longitudinal watertight
- Outer sheath flame-retardant and halogen-free
Product Make-up
- Gel-filled loose tube
- Water-blocking reinforced glass yarn strain relief
- Corrugated steel tape armour
- LSZH inner and outer sheaths
- Colour: black (RAL 9005)
Classification
- ETIM 5.0 Class-ID: EC000034
- ETIM 5.0 Class-Description: Fibre optic cable
Dimensions
- Primary coated fibre: 250µm
- Cable: see table
Core identification code
- Fibre colour code see
data sheet
Fibre type
- GOF – Glass Optical Fibre
Standard designation
- A/J-DQ(ZN)BH(SR)H
Optical values
- see data sheet
Optical fibre type
- Core material: glass
- Cladding material: glass
Permissible bending radius
- Static: ≥ 15 x outer diameter
- Dynamic: ≥ 20 x outer diameter
Permissible tensile force
- Fixed installation: 1500 N
- Short-term: 2200 N
Temperature range
- Fixed installation: -30°C to +70°C
| Article number | Article designation | Fibre type | Number of fbres | Outer diameter (mm) | Weight (kg/km) |
| Multimode G 50 OM3 | |||||
| 27560304 | HITRONIC® FIRE 4G 50/125 OM3 | 50/125 OM3 | 4 | 9,8 | 123 |
| 27560308 | HITRONIC® FIRE 8G 50/125 OM3 | 50/125 OM3 | 8 | 9,8 | 123 |
| 27560312 | HITRONIC® FIRE 12G 50/125 OM3 | 50/125 OM3 | 12 | 12,8 | 188 |
| 27560324 | HITRONIC® FIRE 24G 50/125 OM3 | 50/125 OM3 | 24 | 12,8 | 188 |
| Multimode G 50 OM2 | |||||
| 27560204 | HITRONIC® FIRE 4G 50/125 OM2 | 50/125 OM2 | 4 | 9,8 | 123 |
| 27560208 | HITRONIC® FIRE 8G 50/125 OM2 | 50/125 OM2 | 8 | 9,8 | 123 |
| 27560212 | HITRONIC® FIRE 12G 50/125 OM2 | 50/125 OM2 | 12 | 12,8 | 188 |
| 27560224 | HITRONIC® FIRE 24G 50/125 OM2 | 50/125 OM2 | 24 | 12,8 | 188 |
| Multimode G 62.5 OM1 | |||||
| 27560104 | HITRONIC® FIRE 4G 62.5/125 OM1 | 62.5/125 OM1 | 4 | 9,8 | 123 |
| 27560108 | HITRONIC® FIRE 8G 62.5/125 OM1 | 62.5/125 OM1 | 8 | 9,8 | 123 |
| 27560112 | HITRONIC® FIRE 12G 62.5/125 OM1 | 62.5/125 OM1 | 12 | 12,8 | 188 |
| 27560124 | HITRONIC® FIRE 24G 62.5/125 OM1 | 62.5/125 OM1 | 24 | 12,8 | 188 |
| Single-mode E 9 OS2 | |||||
| 27560904 | HITRONIC® FIRE 4E 9/125 OS2 | 9/125 OS2 | 4 | 9,8 | 123 |
| 27560908 | HITRONIC® FIRE 8E 9/125 OS2 | 9/125 OS2 | 8 | 9,8 | 123 |
| 27560912 | HITRONIC® FIRE 12E 9/125 OS2 | 9/125 OS2 | 12 | 12,8 | 188 |
| 27560924 | HITRONIC® FIRE 24E 9/125 OS2 | 9/125 OS2 | 24 | 12,8 | 188 |
