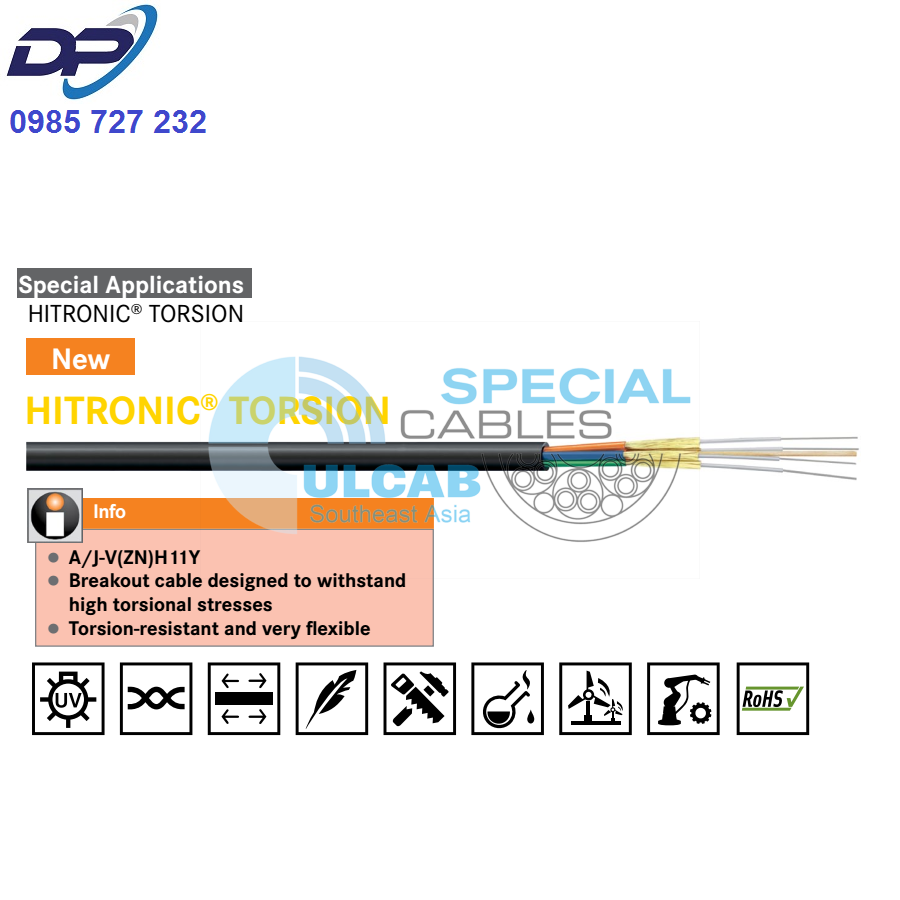

HITRONIC® TORSION
Breakout cable specially designed to withstand high torsional stresses; PUR outer sheath
Fibre optical cables for wind applications with defined movement, torsion, available with 2,4,8 or 12 sub-cable elements with single-mode or multimode fibres
Torsion-resistant and very flexible
Benefits
- Designed to withstand high torsion in the windmill drip loop
- Suitable for field assembly
- Easy to install due to the compact design, high flexibility, robust sheath and small bending radii
- Zero electromagnetic interference as the cable contains no metal (totally dielectric)
Application range
- For fixed and flexible installations, as well as for applications with torsional movements (e.g. machinery, wind turbines)
- Industrial environments
- In vertical installations
- As a link between moving parts
- For indoor and outdoor use
Product features
- Based on military norm MIL-C-85045
- Torsion-resistant and very flexible
- Outer sheath flame-retardant and halogen-free
- Mechanically robust
Product Make-up
- 2.5 mm tight-buffered sub-cable with
LSZH sheath - Aramid yarns as strain relief
- Central element
- PUR outer sheath
- Colour: black (RAL 9005)
Classification
- ETIM 5.0 Class-ID: EC000034
- ETIM 5.0 Class-Description: Fibre optic cable
Dimensions
- sub-cable: 2.5mm
- Cable: see table
Core identification code
- Details see datasheet
Fibre type
- GOF – Glass Optical Fibre
Standard designation
- A/J-V(ZN)H11Y
Optical values
- see data sheet
Optical fibre type
- Core material: glass
- Cladding material: glass
Permissible bending radius
- Static: ≥ 15 x outer diameter
- Dynamic: ≥ 20 x outer diameter
Temperature range
- Fixed installation: -40°C to +70°C
- Occasional flexing: -30°C to +70°C
| Article number | Article designation | Fibre type | Number of fbres | Outer diameter (mm) | Weight (kg/km) |
| Multimode G 50 OM3 | |||||
| 26310302 | HITRONIC® TORSION 2G 50/125 OM3 | 50/125 OM3 | 2 | 8,4 | 54 |
| 26310304 | HITRONIC® TORSION 4G 50/125 OM3 | 50/125 OM3 | 4 | 8,4 | 54 |
| 26310308 | HITRONIC® TORSION 8G 50/125 OM3 | 50/125 OM3 | 8 | 11,6 | 95 |
| 26310312 | HITRONIC® TORSION 12G 50/125 OM3 | 50/125 OM3 | 12 | 14,7 | 122 |
| Multimode G 50 OM2 | |||||
| 26310202 | HITRONIC® TORSION 2G 50/125 OM2 | 50/125 OM2 | 2 | 8,4 | 54 |
| 26310204 | HITRONIC® TORSION 4G 50/125 OM2 | 50/125 OM2 | 4 | 8,4 | 54 |
| 26310208 | HITRONIC® TORSION 8G 50/125 OM2 | 50/125 OM2 | 8 | 11,6 | 95 |
| 26310212 | HITRONIC® TORSION 12G 50/125 OM2 | 50/125 OM2 | 12 | 14,7 | 122 |
| Multimode G 62.5 OM1 | |||||
| 26310102 | HITRONIC® TORSION 2G 62.5/125 OM1 | 62.5/125 OM1 | 2 | 8,4 | 54 |
| 26310104 | HITRONIC® TORSION 4G 62.5/125 OM1 | 62.5/125 OM1 | 4 | 8,4 | 54 |
| 26310108 | HITRONIC® TORSION 8G 62.5/125 OM1 | 62.5/125 OM1 | 8 | 11,6 | 95 |
| 26310112 | HITRONIC® TORSION 12G 62.5/125 OM1 | 62.5/125 OM1 | 12 | 14,7 | 122 |
| Single-mode E 9 OS2 | |||||
| 26310902 | HITRONIC® TORSION 2E 9/125 OS2 | 9/125 OS2 | 2 | 8,4 | 54 |
| 26310904 | HITRONIC® TORSION 4E 9/125 OS2 | 9/125 OS2 | 4 | 8,4 | 54 |
| 26310908 | HITRONIC® TORSION 8E 9/125 OS2 | 9/125 OS2 | 8 | 11,6 | 95 |
| 26310912 | HITRONIC® TORSION 12E 9/125 OS2 | 9/125 OS2 | 12 | 14,7 | 122 |
