ADC Structured Cabling Solutions
Category 5e Patch Panels

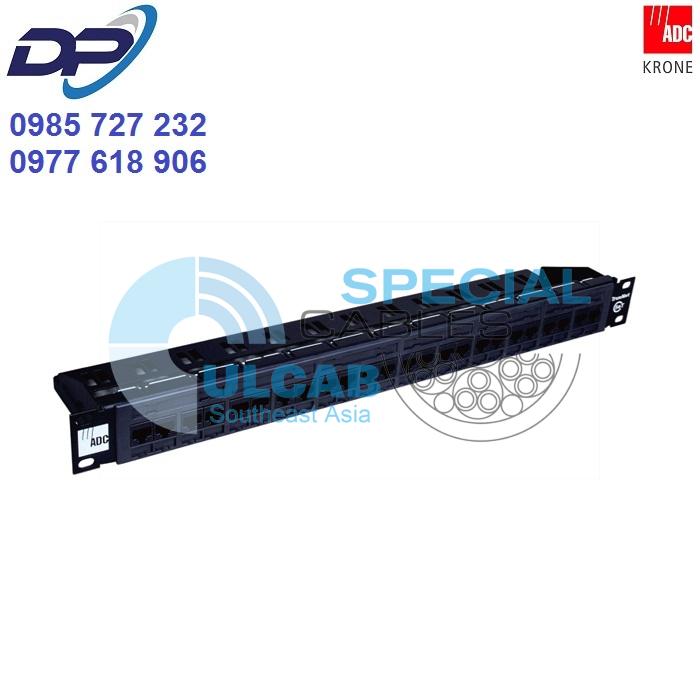

24-port enhanced patch panel A/B
ADC’s Category 5e patch panels are an integral part of ADC Structured Cabling system and provide
Category 5e performance in a high-density design with concise station and port labeling. Available in
24 and 48 port variants, all ADC Structured Cabling patch panels feature LSA-PLUS® silver-plated 45º
angled contacts for the most reliable and robust connection available.
Features:
• UL 1863 listed and Category 5e performance verified
• Includes rear wire manager
• Wire can be terminated with either a ADC or 110 tool
• Forty-five degree silver-plated IDCs provide secure, reliable gas-tight connection
• Includes paper labels or silk-screened area for station identification
• Universal wiring label for easy termination of either T568A/B
• Designed for Gigabit Ethernet transmission
• Panels can be rack mounted in standard EIA 19-inch racks or wall mounted using optional 19-inch
hinged wall-mount brackets
Specifications
Environment for Use: ………………………………………… Indoors, in dry, closed room
Operating Temperature Range: ………………………………………. -40º to 70 ºC (-40º to 158 ºF)
Maximum Relative Humidity: …………………………………………..< 90% non-condensing
RJ Socket, 8 Positions, General Specification: ………………. FCC Part 68.500, IEC 60603-7, EN 60603-7
Transmission Performance and Reliability:
TIA/EIA 568-B.2 Category 5e
ISO 11801 Class D Standard
EN 50173 Category 5e
Number of Plug Insertion Cycles: ………………………………………….. > 750
LSA-PLUS® Insulation Displacement
Wire Diameter Range for Solid and ……………………………………… 22-26 AWG
Stranded Copper Conductors: ………………………………….. 0.40 mm to 0.65 mm (0.016″ to 0.025″)
Wire Insulation Diameter Range (PE,PVC):……………………. 0.70 mm to 1.70 mm (0.028″ to 0.067″)
RJ Interface Resistance: ……………………………………………………………….. < 20 mΩ
LSA-PLUS® Contact Resistance: ………………………………………………. < 1 mΩ
Contact Re-terminations ADC Tool: ……………………………………………….. > 200
Insulation Resistance at 40 ºC (104 ºF) and 93% RH:………………….. > 500 MΩ
Electrical Rating of Complete Assembly at 25 ºC (77 ºF) and 50% RH
Ringing Voltage Rating: ………………………………………………………. < 150V AC
Insulation Resistance: ………………………………………………….. > 100 MΩ at 500 VDC
Safety Rating: …………………………………………………………………….. UL 1863
Flammability Rating: ………………………………………………………… UL 94 V-0
| Description | Dimensions(HxWxD) | Product No. |
| 24-port patch panel with snap-in port ID tabs and paper labels, T568A/B compatible 48-port patch panel with snap-in port ID tabs and paper labels, T568A/B compatible |
44.45 mm x 482.6 mm x 38.1 mm (1.75″ x 19″ x 1.5″) 88.9 mm x 482.6 mm x 38.1 mm (3.5″ x 19″ x 1.5″) |
6653 1 587-24 6653 1 587-48 |
DATA SHEET
