TrueNet ®
Category 5e Keystone Inline RJ45 Outlets

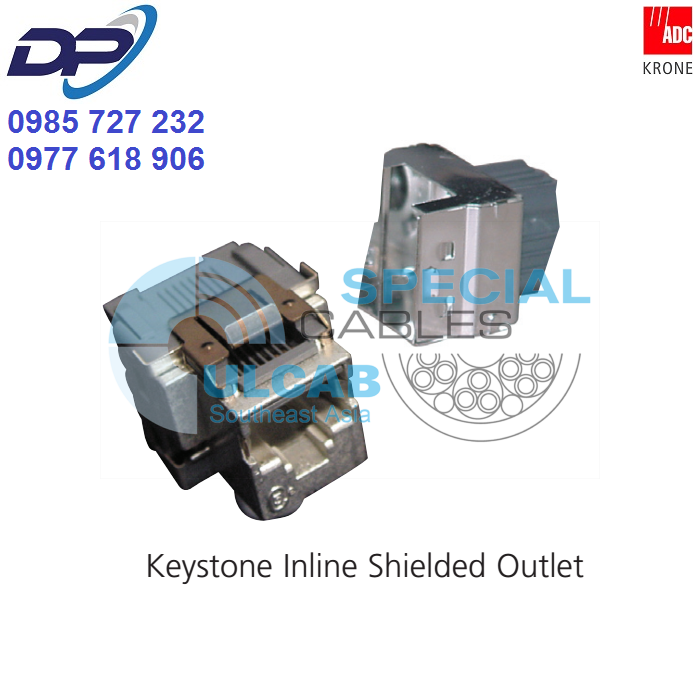

Shielded Keystone Inline Outlet
The Keystone Inline Outlet is a high speed data and voice transmission RJ45 outlet assembly. It is
suitable for the direct termination of 100Ω twisted pair plastic insulated copper wires to LSA-PLUS®
insulation displacement connectors.
The shielded outlet has a metal socket plus a metal can over the wire termination points to provide a
totally shielded enclosure. The metal can has a clamping arrangement for cable retention and to
make electrical contact with the shielding element in the cable.
Features:
• Category 5e performance
• The outlet clips directly into Keystone patch panels and Keystone style faceplates
• LSA-PLUS silver-plated 45° angled contacts for the most secure and reliable connection available
• Wiring code label provides both 568A and 568B wiring formats
• The Shielded Outlets are supplied with a 360 degree outer metal shielding and the nosepiece is
made of die cast metal to provide extra shielding
Specifications
Environment for use:……………………………………………Indoors, in closed rooms
Operation temperature range: …………………………………… -20°C to + 60°C
Relative humidity: ……………………………………………….. ≤93% non-condensing
RJ Socket, 8 positions, general specification: ……………….FCC 68.500
……………………………………………………………………………………IEC 603-7
Voltage/Current rating at 25°C ambient:………………………… ≤150VAC at 2.5A max.
Dielectric strength:………………………………………………………… ≥1.5 kVAC
RJ Interface resistance: ………………………………………………… ≤20mΩ
Wire diameter range for solid & stranded copper conductors: ……………0.50 – 0.65mm*(24-22 AWG)
Wire Insulation diameter range (PE, PVC): …………………………… 1.04 – 1.40mm
* If any conductors have been terminated, reversal to smaller conductors is no longer possible.

Transmission, performance and reliability: ………………… ≥TIA/EIA 568-A-5 Category 5e
……………………………………………………………………………… ≥ISO/IEC 11801 Class E
Number of plug insertion cycles: ………………………………….. ≥750
Number of wire terminations,
ADC KRONE tool: ………………………………………………….. ≥200
110 tool:…………………………………………………………………… ≥100
Flammability of plastic components:…………………………..UL 94 V-0
Safety: ………………………………………………………………………. UL 1863
ACMA Compliant
RoHS compliant to the European Union Directive 2002/95/EC

DATA SHEET
